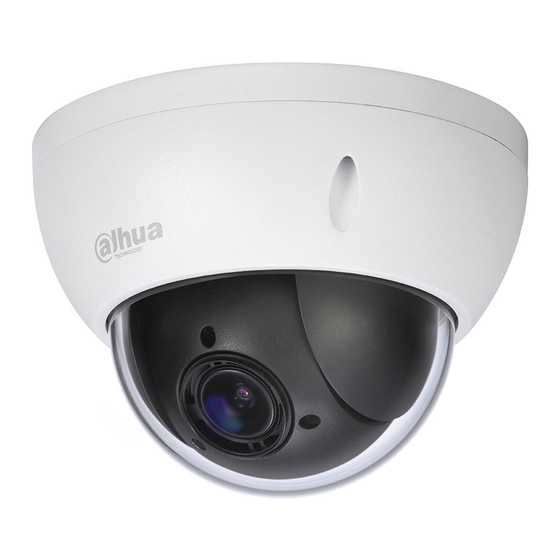

- Page 1 Dahua 2-inch Network Speed Dome Installation Manual Dahua 2-inch Network Speed Dome Installation Manual Version 1.0.1 Dahua Technology CO., LTD...
-
Page 2: Table Of Contents
Dahua 2-inch Network Speed Dome Installation Manual Table of Contents INTELLIGENT SPEED DOME INSTALLATION ..........1 Installation Environments ........................1 Check installation space and installation location intension ............1 Please keep all package material well for future use ............... 1 SETUP BEFORE INSTALLATION .............. - Page 3 Dahua 2-inch Network Speed Dome Installation Manual APPENDIX Ⅱ12V DC WIRE GAUGE AND TRANSMISSION DISTANCE RELATIONSHIP SHEET .................... 7 APPENDIX Ⅲ WIRE GAUGE REFERENCE SHEET .......... 8...
- Page 4 Dahua 2-inch Network Speed Dome Installation Manual Welcome Thank you for purchasing our speed dome! Please read the following safeguards and warnings carefully before you install or use the product!
- Page 5 Dahua 2-inch Network Speed Dome Installation Manual Important Safeguards and Warnings Safety Measures 1. Qualified Engineer Needed The installation engineer or maintenance engineer shall have corresponding CCTV system installation certificate or maintenance qualification certificate. The installation engineer or maintenance engineer shall have qualification certificate for work at height.
- Page 6 Dahua 2-inch Network Speed Dome Installation Manual electromagnetic field. Violent vibration or crash is not allowed during transportation and application. Before you connect the cable, install or uninstall, or begin the daily maintenance work, please turn off the power and unplug the power cable.
- Page 7 Dahua 2-inch Network Speed Dome Installation Manual This series product shall be away from the strong electromagnetism radiant, please keep it away from wireless power, TV transmitter, transformer and etc. 7. Daily Maintenance Please use the soft cloth to clean dust on the shell, or you can use soft cloth with cleaning liquid to clean the shell and then use soft cloth to make it dry.
-
Page 8: Intelligent Speed Dome Installation
Dahua 2-inch Network Speed Dome Installation Manual 1 INTELLIGENT SPEED DOME INSTALLATION 1.1 Installation Environments Basic Requirement All installation and operation here should conform to your local electrical safety codes. Before installation, please open the package and check all the components are included. -
Page 9: Setup Before Installation
Dahua 2-inch Network Speed Dome Installation Manual 2 SETUP BEFORE INSTALLATION 2.1 Check Accessories Before the installation, please check the accessories one by one according to the packing list. Please make sure all the components listed are included. (Please check the container list for details.) -
Page 10: Sd Card Slot And Button
Dahua 2-inch Network Speed Dome Installation Manual 2.4 SD Card Slot and Reset Button SD card slot and button is shown in Figure 2-3. Please make sure the SD card is in the non read-write state when removing it. Otherwise, it may result in data loss and SD card damage. -
Page 11: Camera Installation
Dahua 2-inch Network Speed Dome Installation Manual 3 CAMERA INSTALLATION 2-inch network speed dome mainly adopts ceiling mount mode, which can be installed on the ceiling or wall. 3.1 Component Installation The installation of pedestal seal ring is shown in Figure 3-1. -
Page 12: Installation Environments
Dahua 2-inch Network Speed Dome Installation Manual 3.2.1 Installation Environments The ceiling mount speed dome can be installed in the hard construction ceiling in the indoor environment. Before the installation, please make sure: The ceiling is thick enough to install the expansion bolt. - Page 13 Dahua 2-inch Network Speed Dome Installation Manual 4 APPENDIX Ⅰ LIGHTENING PROTECTION AND SURGE PROTECTION This series speed dome adopts TVS lighting protection technology. It can effectively prevent damages from various pulse signals below 2000W, such as sudden lighting and surge. While maintaining your local electrical safety code, you still need to take necessary precaution measures when installing the speed dome in the outdoor environment.
- Page 14 Dahua 2-inch Network Speed Dome Installation Manual APPENDIX Ⅱ12V DC WIRE GAUGE AND TRANSMISSION DISTANCE RELATIONSHIP SHEET The recommended max transmission distance is under the following environments: The wire diameter is fixed and the DC 12V power voltage loss rate is below 10%. For the device of DC power supplying, the max allowed voltage loss rate is 10%.
- Page 15 Dahua 2-inch Network Speed Dome Installation Manual 6 APPENDIX Ⅲ WIRE GAUGE REFERENCE SHEET Metric bare wire Bare wire cross diameter section （mm） （mm ） 0.050 0.00196 0.060 0.00283 0.070 0.00385 0.080 0.00503 0.090 0.00636 0.100 0.00785 0.110 0.00950 0.130 0.01327...
- Page 16 Dahua 2-inch Network Speed Dome Installation Manual Note This manual is for reference only. Slight difference may be found in the user interface. All the designs and software here are subject to change without prior written notice. ...
