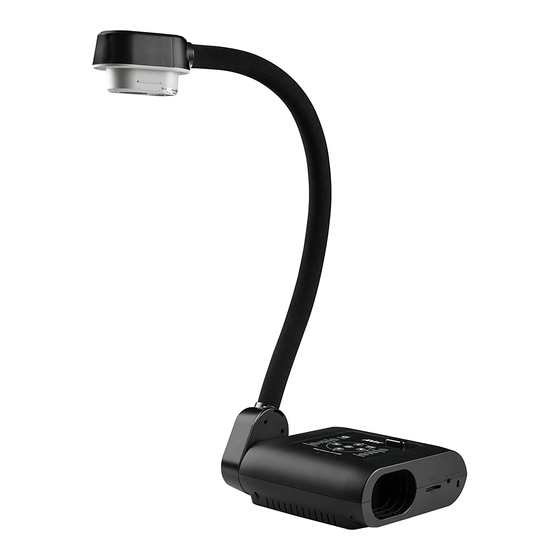

AVerVision F17-8M
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVerVision F17-8M and is the answer not in the manual?

Questions and answers

Summary of Contents for AVer AVerVision F17-8M

  • Page 1 AVerVision F17-8M User Manual...
  • Page 2 © 2017 AVer Information Inc. All rights reserved. All rights of this object belong to AVer Information Inc. Reproduced or transmitted in any form or by any means without the prior written permission of AVer Information Inc. is prohibited. All information or specifications are subject to change without prior notice.
  • Page 3 WARNING T O R E D U C E R I S K O F F I R E O R E L E C T R I C S H O C K , D O N O T E X P O S E T H I S A P P L I A N C E T O R A I N O R M O I S T U R E .
  • Page 4: Table Of Contents

    Package Contents ....................1 Optional Accessories ..................1 Get Familiar with the AVerVision F17-8M ............2 Right Panel ......................2 Rear Panel ......................3 Left Panel ........................ 3 Control Panel ......................4 Remote Control ....................... 6 Making the Connections ................... 9 Set the TV-RGB Switch Setting ................
  • Page 5 5 7 B S potlight ......................23 6 0 B V isor........................23 6 2 B P IP ........................24 6 3 B S plit Screen ...................... 24 6 4 B T imer ......................... 24 Setting ........................25 4 8 B C apture ......................25 6 6 B R esolution ......................
  • Page 6: Package Contents

    USB Cable Power Adapter (12V, 2A) * The power adapter will vary depending on the standard power outlet of the country where it is sold. AVerVision F17-8M Remote Control (batteries included) CVBS adapter Software & Manual CD Carrying Bag Anti-glare Sheet...
  • Page 7: Get Familiar With The Avervision F17-8M

    (fig. 1.1) Name Function Camera head Contain the camera sensor. Camera lens Focus the image in the camera. LED light Provide light to enhance the lighting condition. Flexible arm Provide adjustable viewing coverage. Connections for HDMI output/input external display device, Left panel microphone, speaker, and USB flash drive/USB mouse.
  • Page 8: Rear Panel

    RGB OUT port only. Connect this port to the RGB/VGA output port of a computer. RGB OUTPUT port Connect the AVerVision F17-8M to any display device with RGB cable. Connect the supplied CVBS adapter into this port. The RCA jack CVBS port outputs the video signal from the camera to a TV or video equipment.
  • Page 9: Control Panel

    Co nt ro l Pan e l (15) (10) (11) (12) (13) (14) (16) (fig. 1.5) Name Function POWER Turn the unit on/standby mode. Increase the image magnification in camera and picture playback mode. CAMERA / PC Switch the video signal between camera or computer from the RGB IN port.
  • Page 10 Name Function (13) PLAYBACK View & playback captured still images and video files. Decrease the image magnification in camera and picture playback (14) mode. (15) Power LED - Red: Standby indicator - Green: RGB/HDMI output - Orange: TV output (16) Built-in MIC Record audio when recording video clip.
  • Page 11: Remote Control

    Re mote Co nt ro l The remote control requires two (2) “AAA” size batteries (supplied), make sure batteries are installed properly before use. You can access all the features of AVerVision F17-8M with the remote. Name Function POWER Turn the unit on/standby.
  • Page 12 Name Function ▲,▼,◄, & ► - Pan and zoom-in image (above digital zoom level) in both live and playback (12 ) mode. (13 ) (14 ) - Select options in OSD menu. (15 ) - Use ▲&▼ to increase and decrease (16 ) the video playback volume.
  • Page 13 Name Function OK – press (15) SPOTLIGHT for the setting to take (12 ) effect. If you select ON, the frame will (13 ) appear and blink, use the ▲,▼,◄, & ► (14 ) buttons to adjust the frame size and (15 ) press to set the desired size;...
  • Page 14: Making The Connections

    AVerVision F17-8M with. The TV-RGB switch determines the display output selection. Switch it to RGB (right) to output signal using RGB/HDMI connection and TV (left) to output signal using RCA connection.
  • Page 15: Connect To A Monitor Or Lcd/Dlp Projector With Hdmi Output Interface

    Locate the HDMI input port of the display device and connect it to HDMI out port of AVerVision F17-8M. Make sure the TV/RGB switch is set to RGB. Locate the VIDEO or SCART RGB (if applicable) input port of the TV or Video equipment...
  • Page 16: Connecting The Power

    Locate the RGB (VGA) output port of the computer or laptop and connect it to RGB IN port of AVerVision F17-8M. The video signal from the RGB IN port is streamed to RGB OUT. - To display computer image, press Camera/PC button on the control panel or remote control to switch AVerVision F17-8M to computer mode.
  • Page 17: Connect To A Computer With Hdmi Input Interface

    - Make sure the TV/RGB switch is set to RGB. - To display computer image, press Camera/PC button on the control panel or remote control to switch AVerVision F17-8M to computer mode. - For laptop to output display image, use the keyboard command (FN+F5) to switch between the display modes.
  • Page 18: Connect An Amplified Speaker

    Take caution when using earphones. Adjust the volume down on the remote to prevent hearing damage due to loudness. Connect the AVerVision F17-8M to a microscope enables you to examine microscopic objects on a big screen. Change the image display mode to Microscope.
  • Page 19: Setting Up Avervision F17-8M

    This section provides useful tips on how to adjust the AVerVision F17-8M to meet your needs. The gooseneck design allows you to freely bend the arm and store the camera head in the camera holder.
  • Page 20: Shooting Area

    The shooting area can view an area of 580*326mm (at 1080P). If the camera head is in upright position, press ROTATE on the control panel or remote control twice to rotate the image in 180°. To mirror the image, press MENU > select Mirror, press , and select On.
  • Page 21: Overhead Light

    Press LAMP button on the control panel or remote control to turn on and off light. Aim the remote control at the infrared sensor to operate the unit.
  • Page 22: Mounting The F17-8M On A Flat Surface

    Measure and mark the horizontal of 75 mm from the center line distance between the holes on the flat surface as describe in the illustration below. Use 2 pieces of M4.0 screws for 6 mm holes and secure the F17-8M on the flat surface. 75mm The anti-glare sheet is a special coated film that helps eliminate any glare that maybe encountered while displaying very shiny objects or glossy surfaces such as magazines and...
  • Page 23: External Memory Storage

    (FAT32). We recommend using SDHC card with class-6 or above for high quality recording. Connect the USB flash drive in the USB slot. AVerVision F17-8M can support USB flash drive from 2GB to 64GB (FAT32). U B est to format the USB flash drive using AVerVision...
  • Page 24: Osd Menu

    There are 4 tabs on the OSD menu: IMAGE, PRESENTATION, SETTING and SYSTEM. In Playback mode, you can access PLAYBACK OSD menu to enable the Slide Show feature and modify Slide Show interval and transition setting if desire. For TV output, the RESOLUTION will be disabled in SETTING menu list. IMAGE PRESENTATION SYSTEM...
  • Page 25: Navigate The Menu And Submenu

    1. Press MENU button on the remote or control panel. 2. Press ► and ◄ to toggle between tabs 3. Press ▼ and ▲ to choose a selection in the menu list. 4. Press to make a selection. 5. Use ► and ◄ to adjust the setting or make a selection.
  • Page 26: 9 B M Ode

    Menu Screen Function M ode 4 9 B Select from the various image display settings. Sharp - adjust the contrast along the edges making text appear more visible. Graphics - adjust the gradient of image. Microscope - automatically adjust zoom ratio for microscopic viewing.
  • Page 27: 3 B E Xposure

    Menu Screen Function E xposure 5 3 B Select the exposure setting. AUTO - automatically adjust the camera exposure and the amount of light required. MANUAL - manually adjust the exposure level. The exposure can be adjusted up to 100. W hite Balance 5 4 B Select the White Balance setting for various light...
  • Page 28: Presentation

    Menu Screen Function S potlight 5 7 B Spotlight overlays a frame on the presentation screen. You can move the Spotlight around the presentation screen using the ▲,▼,◄, & ► buttons. Select Execute to call the Spotlight submenu. In the Spotlight submenu, the following options are available. ON/OFF –...
  • Page 29: 2 B P Ip

    Divide the screen into two parts. Half of the screen displays the 8-thumbnail images and the other half display the image from the AVerVision F17-8M camera. Select the display location of the 8- thumbnail playback images. Select OFF to cancel Split Screen.
  • Page 30: Setting

    Menu Screen Function C apture 4 8 B Select to set the capture resolution, quality, type and interval settings. R esolution 6 6 B Select the capture size. In 8M setting, the capture resolution size is 3840 X 2160. Q uality 6 7 B Select the capture compression setting.
  • Page 31: 2 B S Torage

    Format to delete all the data in the selected memory. U SB to PC 7 6 B Select the status of the AVerVision F17-8M when it is connected to the computer via USB. Camera - can be used as a computer webcam or with our bundled software to record video and capture still image.
  • Page 32: Input Volume

    Menu Screen Function Input Volume Adjust volume input of recording or USB audio input. Menu Screen Function L anguage 7 4 B Change and select different language. O utput Display 7 5 B Set the resolution to display the image on screen. This selection will be disabled in TV output mode.
  • Page 33: 8 B S Ave Setting

    Menu Screen Function S ave Setting 7 8 B Save current setting in the selected profile number. Only effect, mode, brightness and contrast settings can be saved. Recall Setting Restore the setting back to the selected profile number. I nformation 8 0 B Display the product information.
  • Page 34: 1 B S Lide Show

    Menu Screen Function S lide Show 8 1 B Display all captured still pictures in an automated slide show. The video file will be skipped. Interval Set the interval before displaying the next picture. The length can be set up to 100 sec. E ffect 8 3 B Select the slide show transition effect.
  • Page 35: Annotation

    In single image playback mode and preview mode, you can use the annotation feature to overlay straight line or freeform line on the captured image with the USB mouse connected to the USB port of AVerVision F17-8M. It comes with the following selections: Color Palette, Line Thickness, Line, Freehand, Capture, Eraser, and Hide/Show icons.
  • Page 36: Using The Annotation

    1. In camera mode, press (Freeze/Stop) button to call out annotation menu. on the remote. Then, use the ▲,▼,◄, & ► In playback back mode, Press buttons and select the image you want to annotate in the 16-thumbnail preview. Press to make a selection and display the image in full screen.
  • Page 37: Transfer Captured Images/Videos To A Computer

    This enables you to transfer the captured image from the built-in memory or SD to a computer. The instruction below MUST be read and followed BEFORE connecting the USB cable. 1. MUST set the USB to PC as STORAGE before connecting the USB cable. 2.
  • Page 38: Technical Specifications

    Image Sensor 1/3.2” CMOS Pixel Count 8 megapixels Frame Rate 30 fps (max.) White Balance Auto / Manual Exposure Auto / Manual Image mode Sharp / Graphics / Microscope Effect Color / B/W / Negative / Mirror / Rotate / Freeze 1920x1080, 1280x1024, 1280x720, 1024x768, 1280 x 800, RGB output 1366x768...
  • Page 39: External Storage

    External Storage Secure Digital 1GB ~ 32GB (FAT32) (SDHC) USB Flash Drive 2GB ~ 64GB (FAT32)
  • Page 40: Troubleshooting

    3. Verify the setting of the display output device. 4. If you are presenting from a notebook or computer through the display output device, check the cable connection from computer RGB (VGA) output to RGB input of AVerVision F17-8M and make sure AVerVision F17-8M is in PC Mode.
  • Page 41: Limited Warranty

    You as the original purchaser. Except for the foregoing, the Product is provided “AS IS.” In no event does AVer warrant that You will be able to operate the Product without problems or interruptions, or that the Product is suitable for your purposes. Your exclusive remedy and the entire liability of AVer under this paragraph shall be, at AVer’s option, the repair or replacement...
  • Page 42 Governing Law and Your Rights This warranty gives you specific legal rights; You may also have other rights granted under state law. These rights vary from state to state. For warranty period, please refer to the warranty card.
