Section 1: Screen Design

1.1 What is it?

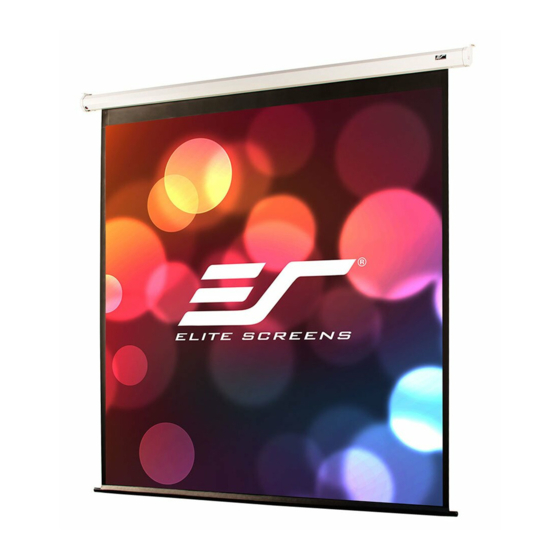

The VMAX 2 Series is an enhanced electric motorized projector screen for commercial and
home theater applications.
1.2 How does it work?
It has a silent and power-saving synchronous motor. With standard features such as the IR & RF
remotes, 12v Trigger and Electronic "Eye" Receiver, the VMAX 2 series also includes Elite's
GREENGUARD Certified MaxWhite® 1.1 gain material that is ideal for large group presentations.

Section 2: Product Features

2.1 Characteristics
Screen Material
MaxWhite® 1.1 Gain black backed material
•
MaxWhite® FiberGlass backed 1.1 Gain material, models 166" & below
•
180° wide viewing angle
•
4K Ultra HD, Active 3D, and HDR Ready
•
Not compatible with Ultra/Short-throw Projectors
•
Standard 4-side black masking borders
•
Matte White material is durable and easy to clean
•
Available in the following range of diagonal sizes:
•
99" - 170" in 1:1 format
•
84" - 165" in 4:3 format
•
84" - 166" in 16:9 format
•
106", 128" and 142" in 16:10 format
•
Design and Installation
Durable metal casing for wall/ceiling installation
•
Includes wood screws and drywall anchors
•
Bubble leveler included
•
Ships fully assembled with 3-prong power connection ready to plug & play
•
Optional in-ceiling trim kit and 6" & 12" L brackets - sold separately
•
Control System
Standard Infrared (IR) and Radio Frequency (RF) remote controls
•
Detachable 3-way wall switch
•
Radio Frequency (RF) remote capable of operating from up to 100 feet away without the necessity of
•
line of sight
Built-in 5-12 volt trigger input enables Drop/Rise operation to synchronize with the projector's power
•
cycle
Low-voltage internal IR/RF receivers
•
CAT5 cable wit RJ-45 connector for easy extension of the 5-12 volt trigger/IR "eye" receiver/3-way wall
•
switch
