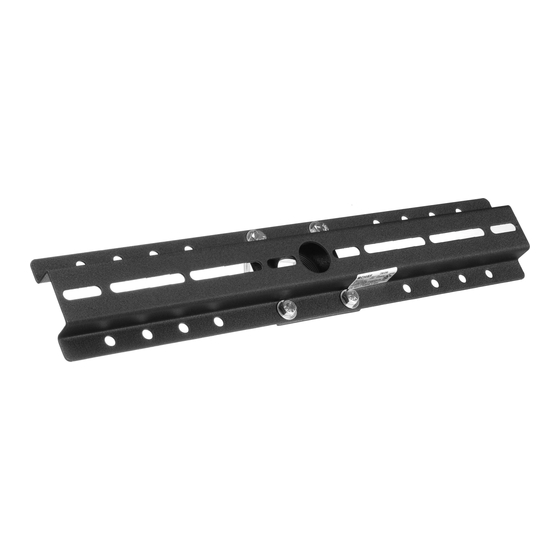

Truss spanning adapter

Advertisement

I N S T A L L A T I O N
The bracket is a universal method for quick, easy installation of NPT 1½" pipe to or above a variety of
structures. By using any length of standard NPT 1½" pipe threaded both ends, you can extend the height
capabilities to meet your needs.
WARNING: IMPROPER INSTALLATION MAY RESULT IN SERIOUS PERSONAL INJURY!
When mounting Chief Manufacturing accessories, the structural system and mounting method
MUST be capable of supporting 5 times the combined weight of the total installation.
The maximum weight to be installed on the truss spanning adapter is 250 pounds (113.4Kg).

Unpack and check contents:

(1)
PLATE, truss hang down
(1)
PLATE, ceiling, 4" X 4"
(2)
CLAMP, U, 2"pipe
(4)
BOLT, hex, 3/8-16 x 1"
(4)
BOLT, hex, 3/8-16 x 2"
1. Secure the hang down truss plate to a structural member (see Figure 1) in the desired location using two
clamps, four 3/8-16 X 2" bolts, and four 3/8" flat washers (SEE WARNING ABOVE).
2. Secure the ceiling plate to the truss in the desired location using four 3/8-16 X 1" bolts, four 3/8-16
Nylock nuts, and four 3/8" flat washers.
3. Install NPT 1½" pipe and secure using 10-24 X ¼" setscrew.
CHIEF MANUFACTURING INC.
1-800-582-6480 952-894-6280 FAX 952-894-6918
12800 HIGHWAY 13 SOUTH, SUITE 500
SAVAGE, MINNESOTA 55378 USA
TRUSS SPANNING ADAPTER
CMA-366

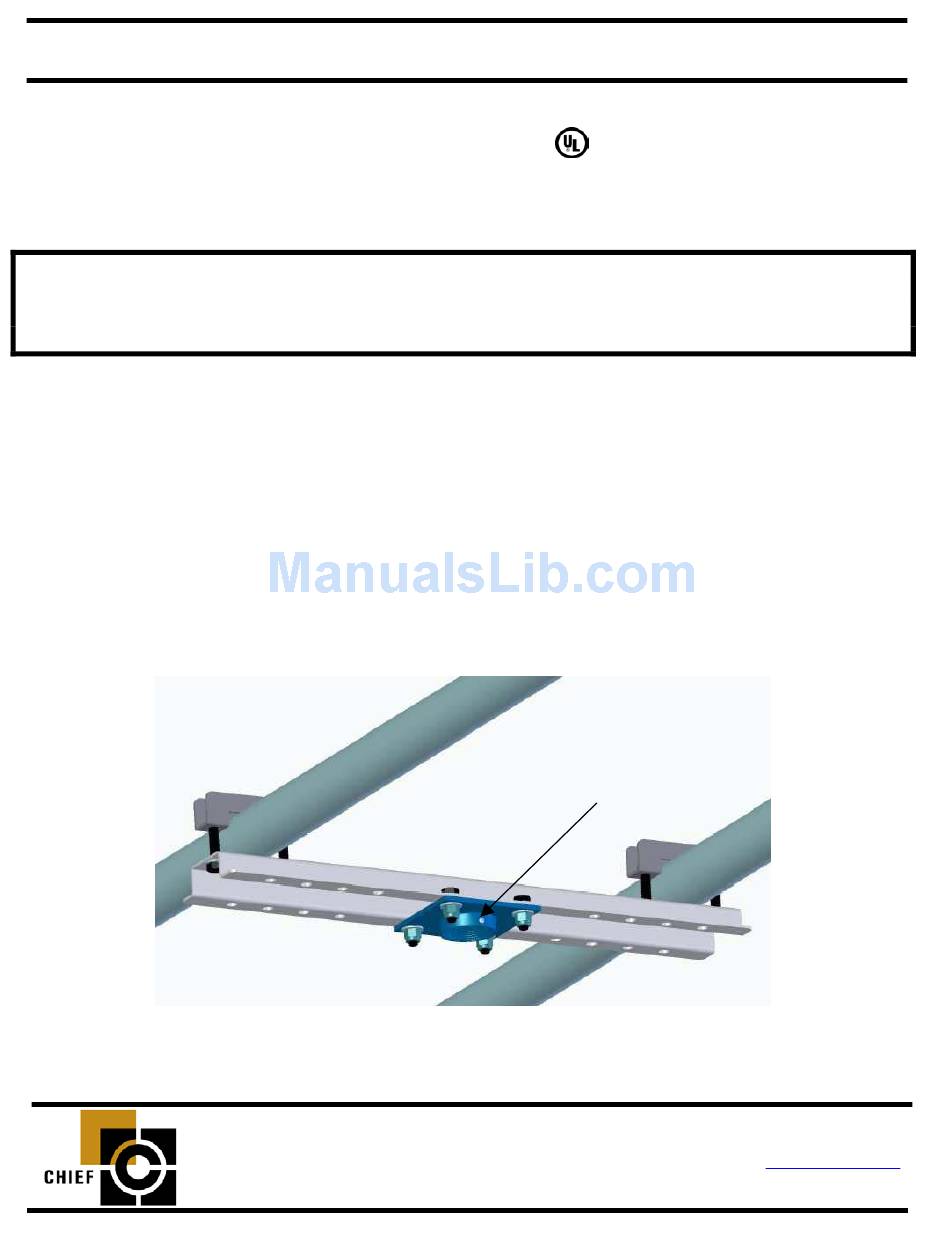

Figure 1. CMA-366
I N S T R U C T I O N S
(4)
NUT, Nylock 3/8-16
(12) WASHER, flat, 3/8"
(1)
SETSCREW, 10-24 X ¼"
(1)
WRENCH, Allen, 3/32"
Setscrew Location
8803-000024
2003 Chief Manufacturing
www.chiefmfg.com
06/03
