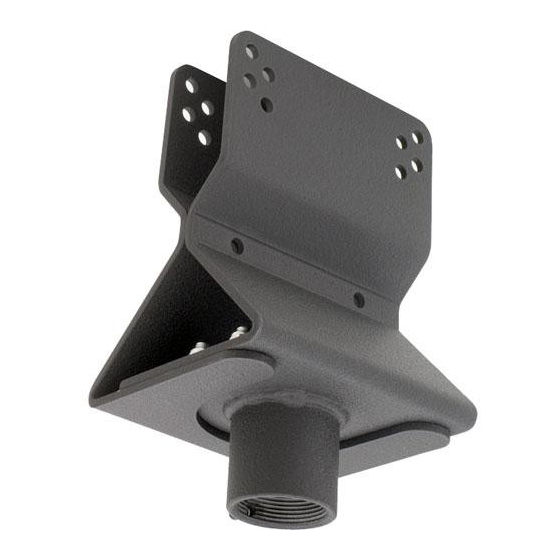

Pipe clamp adapter for supporting 1 1/2”npt pipe column

Advertisement

Unpack carton and check contents:

(1)
Pipe Clamp Adapter
(2)
5/16-18 x 1 ¼" Hx.Soc.Hd.Cp. Screw
(2)
5/16-18 x 2 ¼" Hx.Soc.Hd.Cp. Screw
(4)
5/16-18 Nylock Nuts
(4)
¼" Washer, Flat, Black
CAUTION! The overhead support must be capable of supporting five times the
weight of the mount and equipment combined. If it cannot is MUST be
reinforced.
1.
Slide right bracket and left bracket back and forth by lososening 5/16-18 Nylock nuts.
faces down.
2.
Determine pipe diameter, 1.9 to 3.5 maximum. Spread clamp open to dimension required, allow for clearance when
installing.
3.
Slide clamp together around pipe, install 5/16-18 hex socket head cap screws above and below pipe and through
clamp, secure with nylock nuts and tighten moderately.
4.
Tighten four 5/16-18 Nylock nuts in slotted holes.
5.
Once clamp is secure, 1 ½"NPT, pipe column can be threaded into nipple.

Adjustments:

Pitch: Slight pitch adjustment can be made by loosening cap screws at pipe clamp retighten as required to secure at desired angle.
Yaw: Turn pipe assembly in nipple at initial install to achieve desired orientation. Secure with set screw.
CHIEF MANUFACTURING INC. 1-800-582-6480, Fax: 1-877-894-6918, Email: chief@chiefmfg.com

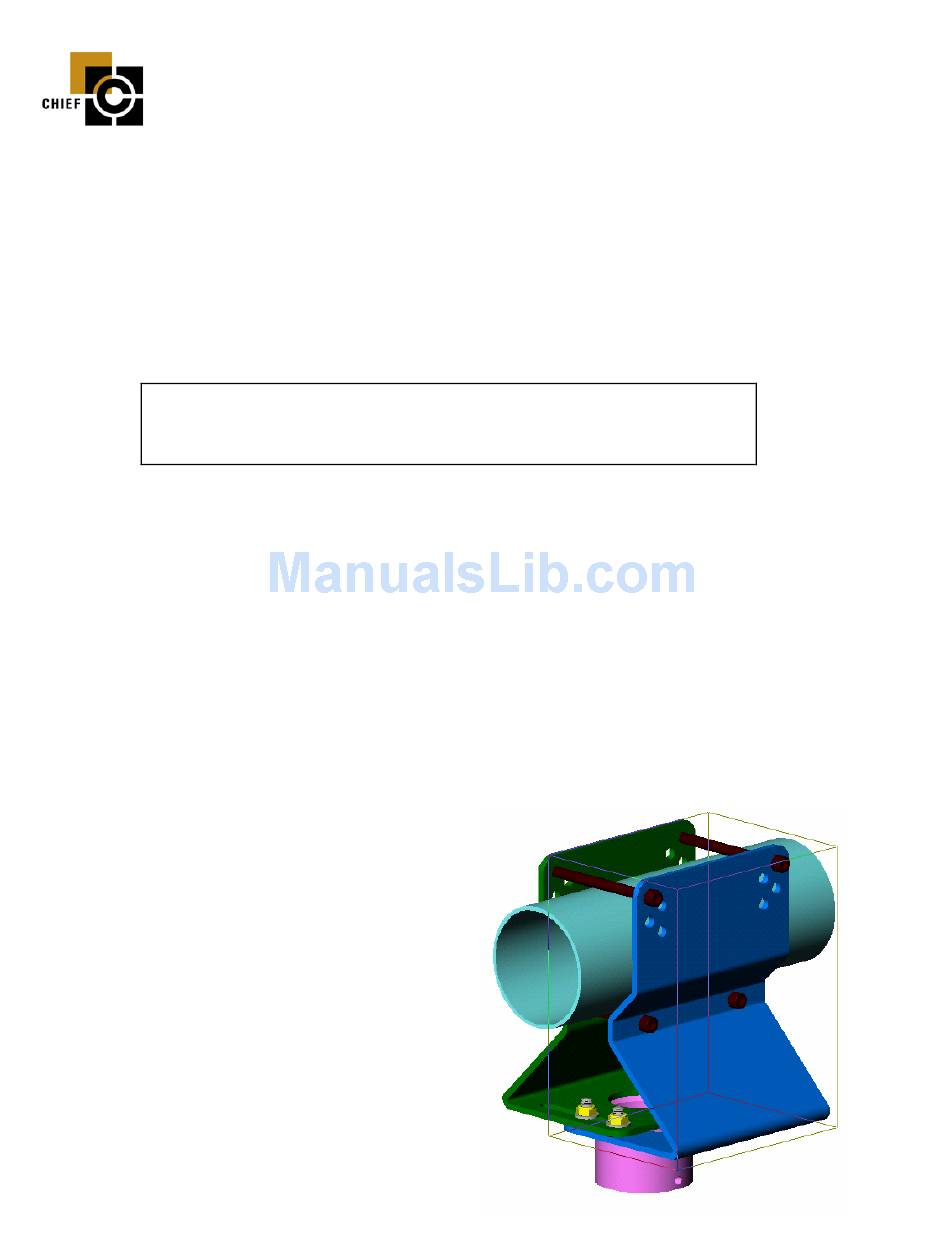

CMA-300
PIPE CLAMP ADAPTER
FOR SUPPORTING 1 ½"NPT PIPE COLUMN
I
NSTALLATION
(2) 5/16-18 x 3 ¼" Hx.Soc.Hd.Cp. Screw
(2) 5/16-18 x 4 ¼" Hx.Soc.Hd.Cp. Screw
(1) Set Screw
(1) Allen Wrench, 5/32"
(1) Allen Wrench ¼"
I
NSTRUCTIONS
Note! 1 ½" NPT nipple
