CHIEF CTA-100 Installation Instructions Manual

Vcr / dvd / cable box adapter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

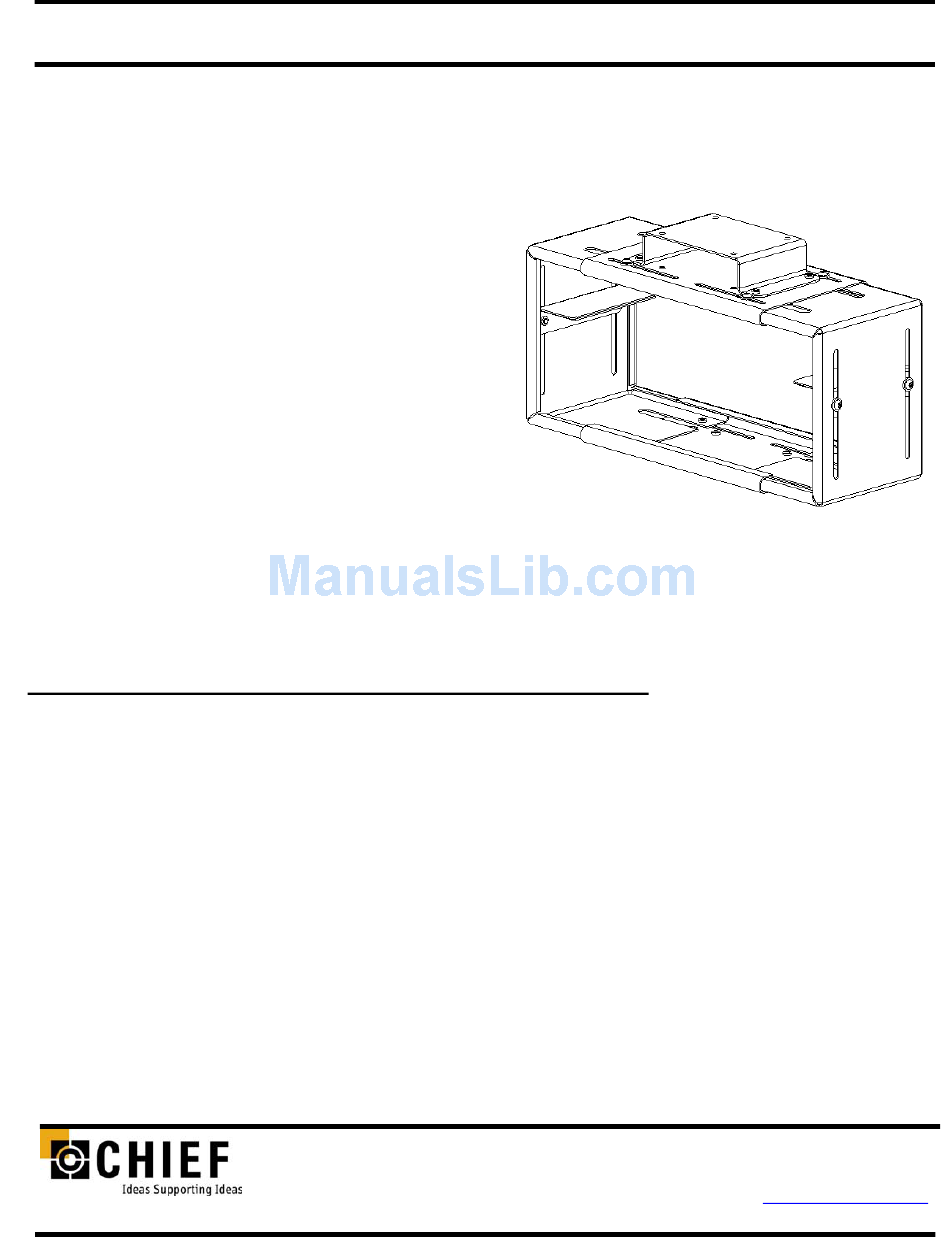

I N S T A L L A T I O N
The CTA-100 provides a centralized mounting
solution for a VCR/DVD/cable box.
The shelf on the CTA-100 can be adjusted to fit the
width and height of most VCR/DVD/Cable Boxes.
The maximum weight capacity for the CTA-100 is
50lbs. (22.7 kg).
The CTA-100 was specifically designed to mount
underneath any CTV Series TV/Monitor mount.
Depending upon the weight limitations of the
TV/Monitor mount, the CTA-100 is a stackable
unit. Up to three CTA-100 units can be stacked.
The weight of the stacked units cannot exceed
50lbs. (22.7 kg).

BEFORE YOU BEGIN

•
CAUTION: To prevent damage to your equipment, which could affect or void the Factory warranty,
thoroughly study all instructions and illustrations before you begin to install the CTA-100. Pay particular
attention to the Warnings and Cautions in this document.
•
If you have any questions about this installation, contact Chief Manufacturing at 1-800-582-6480 or
952-582-6480.
CTA-100
VCR / DVD / Cable Box Adapter
CHIEF MANUFACTURING INC.
1-800-582-6480 952-894-6280 FAX 952-894-6918 2004 Chief Manufacturing
8401 EAGLE CREEK PARKWAY, STE. 700
SAVAGE, MINNESOTA 55378 USA
I N S T R U C T I O N S
8809-000022 (Rev. A)
www.chiefmfg.com
10/04

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CTA-100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CHIEF CTA-100

Summary of Contents for CHIEF CTA-100

  • Page 1: Before You Begin

    • CAUTION: To prevent damage to your equipment, which could affect or void the Factory warranty, thoroughly study all instructions and illustrations before you begin to install the CTA-100. Pay particular attention to the Warnings and Cautions in this document.

  • Page 2: Cta-100 Specifications

    CTA-100 SPECIFICATIONS Table 1. CTA-100 Specifications Inside Dimensions W-Width H-Height Model Adjustment Adjustment CTA-100 10-1/4” – 17-3/8” 1” – 5-3/4” Max Support Weight 50 lbs (22.7kg)

  • Page 3: Table Of Contents

    WARNING The combined weight of the equipment placed on the CTA-100 must not exceed the maximum support weight of the mount. Refer to the specifications described in Table 1, on page 2.

  • Page 4: Tools Required For Installation

    BEFORE PROCEEDING: Unpack the carton. Verify contents listed in Table 2. Read installation instructions completely. If you are missing any of the listed components, contact Customer Service at: 1-800/582-6480.300. Table 2. CTA-100 Parts List ITEM DESCRIPTION Top Attachment Plate Center Plate Side Plate...

  • Page 5: Installation Instructions

    INSTALLATION INSTRUCTIONS STEP 1 (70) (60) Figure 3. Attach Center Plates and Side Plates Figure 2. Assemble Center Plates and Side Plates Assembling the Center Plates and Side Plates Assemble center plates and side plates, as follows: 1. Locate two center plates (20) and two side plates NOTE: 2.

  • Page 6: Installing Pads On Adjustment Plates

    STEP 2 ADJUSTMENT PLATE (40) (50) Figure 4. Install Pads on Adjustment Plates (70) ADJUSTMENT PLATE (40) (60) Figure 5. Install Adjustment Plates Installing Pads on Adjustment Plates Install foam pads on adjustment plates, as follows: 1. Locate two foam pads (50) and two adjustment plates (40).

  • Page 7: Installing Top Attachment Plate

    (10) onto the bottom of the (80) TV/Monitor mount as shown in Figure 6. Tighten the screws. Connecting CTA-100 to TV/Mount Connect the CTA-100 to the TV/Mount, as (TV/Mount) follows: 1. Align CTA-100 with top attachment plate (10) as shown in Figure 6.

  • Page 8: Making Adjustments

    Failure to install and tighten the screws to secure your VCR/DVD can result in personal injury and/or equipment damage. 4. Check the CTA-100 to ensure that the side plates (30) and adjustment plates (40) are adjusted correctly. The unit should fit tightly around your VCR/DVD.

  • Page 9: Stacking Two Units

    Failure to install and tighten the screws to secure your VCR/DVD can result in personal injury and/or equipment damage. 7. Check the CTA-100 to ensure that the side plates (30) and adjustment plates (40) are adjusted correctly. The unit should fit tightly around your VCR/DVD. If not, repeat steps 5 and 6 until your VCR/DVD is secure.
