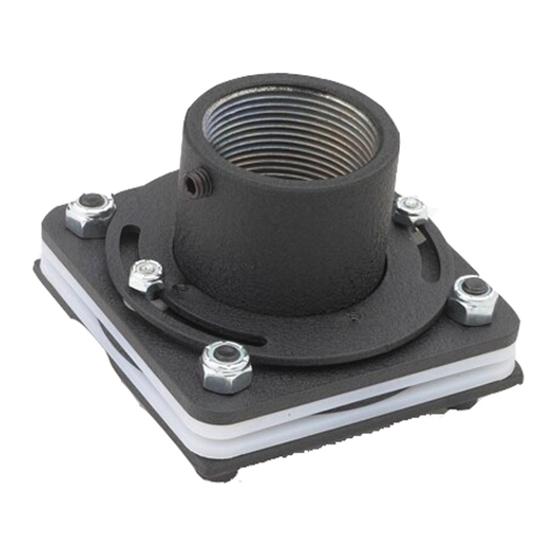

Heavy duty swivel adapter

Advertisement

I N S T A L L A T I O N I N S T R U C T I O N S
Instrucciones de instalación
Installationsanleitung
Instruções de Instalação
Istruzioni di installazione
Installatie-instructies
Instructions d´installation
Heavy Duty Swivel Adapter
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
CMA351

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Heavy Duty Swivel Adapter CMA351 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CHIEF Heavy Duty Swivel Adapter CMA351

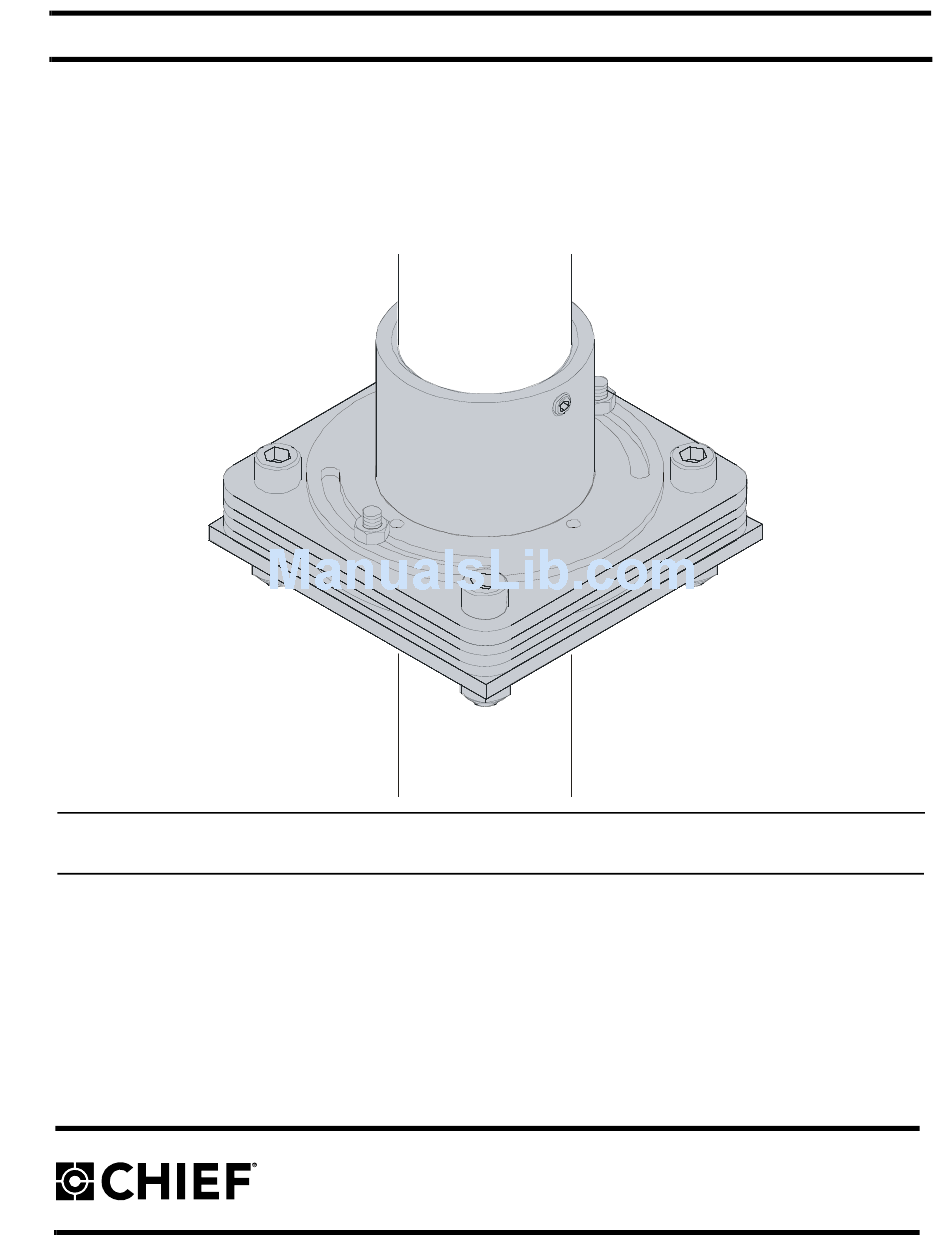

  • Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Instrucciones de instalación Installationsanleitung Instruções de Instalação Istruzioni di installazione Installatie-instructies Instructions d´installation Heavy Duty Swivel Adapter Spanish Product Description German Product Description Portuguese Product Description...
  • Page 2 CMA351 DISCLAIMER CSAV, Inc., and its affiliated corporations and subsidiaries (collectively, "CSAV"), intend to make this manual accurate and complete. However, CSAV makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product.
  • Page 3 Installation Instructions LEGEND Tighten Fastener Apretar elemento de fijación Befestigungsteil festziehen Apertar fixador Serrare il fissaggio Bevestiging vastdraaien Serrez les fixations Loosen Fastener Aflojar elemento de fijación Befestigungsteil lösen Desapertar fixador Allentare il fissaggio Bevestiging losdraaien Desserrez les fixations Phillips Screwdriver Destornillador Phillips Kreuzschlitzschraubendreher Chave de fendas Phillips...
  • Page 4 CMA351 Installation Instructions TOOLS REQUIRED FOR INSTALLATION 3/32" 5/32" (provided) (provided) PARTS A (1) B (1) D (2) F (1) C (2) E (1) G (1) 5/16-18 x 3/8" 10-24 x 1/4" 10-24 #8-32 x 1/2" .315 x .507 x 090 H (1) J (1) 3/32"...
  • Page 5 Installation Instructions Installation IMPORTANT ! : The following installation procedure assumes that a 1 ½" NPT pipe has been properly installed to the ceiling. Place one Nylon washer (C) over each stud on Swivel Adapter (A). (See Figure 1) Align slots in stop plate (B) with two threaded studs on Swivel Adapter (A).
  • Page 6 CMA351 Thread one 1 1/2" NPT pipe into lower Swivel Adapter (A). (See Figure 4) Secure lower 1 1/2" NPT pipe to swivel adapter (A) using one set screw (G). (See Figure 4) WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer’s responsibility to make sure the combined weight of all components located between the CMA351 up to (and...
  • Page 7 Installation Instructions CMA351...
  • Page 8 CMA351 8803-000010 RevA ©2007 Chief Manufacturing www.chiefmfg.com 11/07 USA/International A 8401 Eagle Creek Parkway, Savage, MN 55378 P 800.582.6480 / 952.894.6280 F 877.894.6918 / 952.894.6918 Europe A Fellenoord 130 5611 ZB EINDHOVEN, The Netherlands P +31 (0)40 2668620 F +31 (0)40 2668615...
