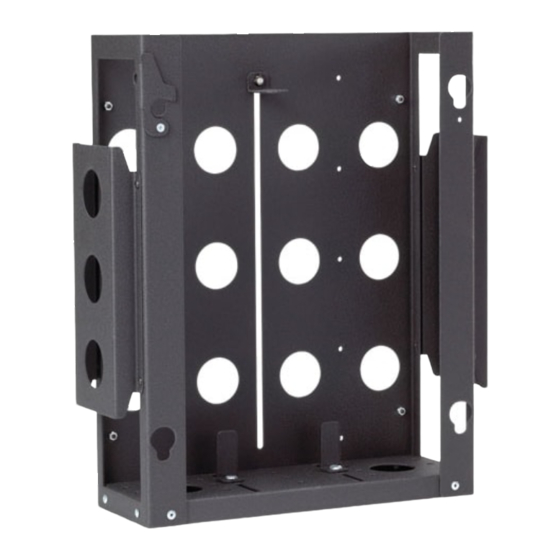

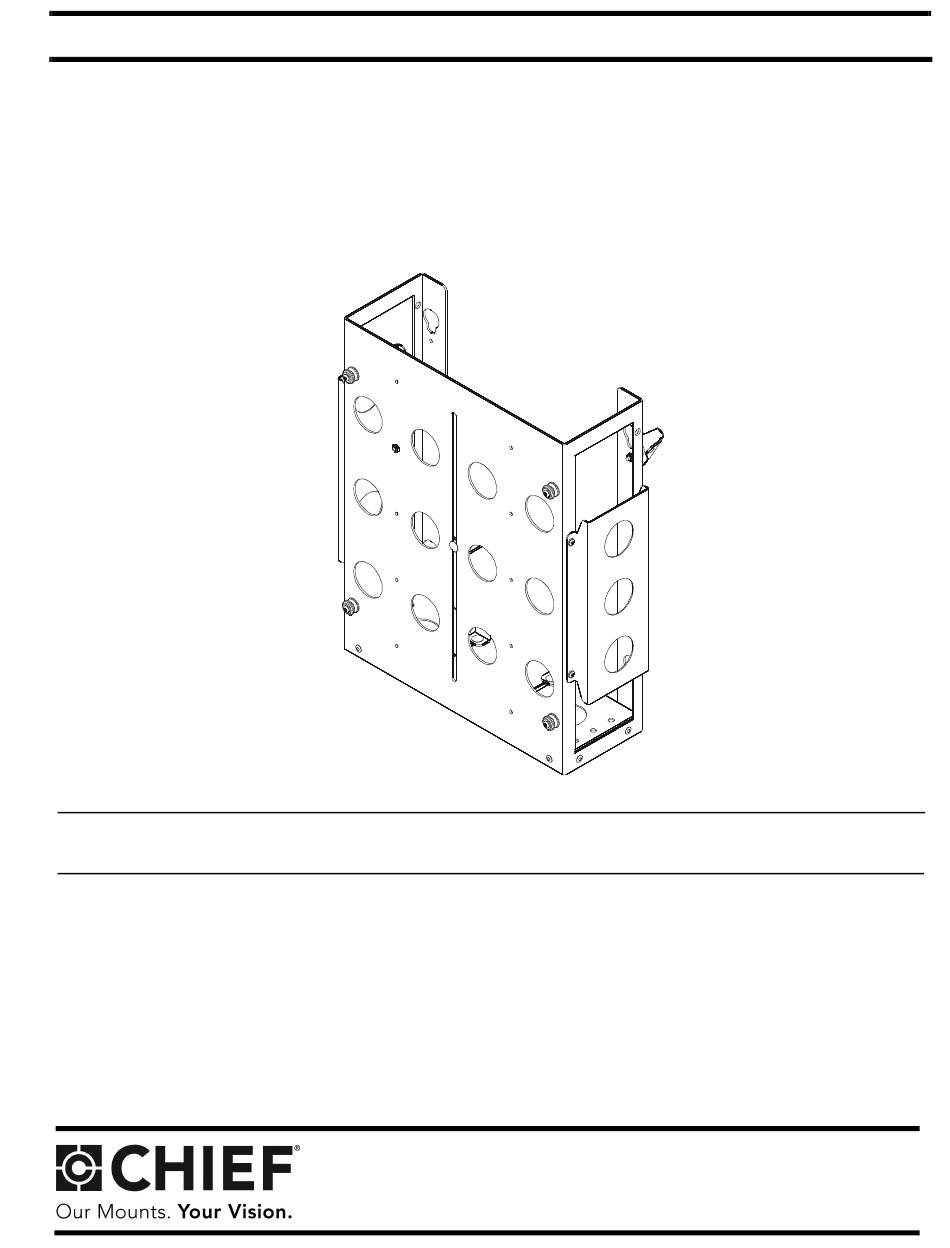

  • Page 1 I N S T A L L A T I O N I N S T R U C T I O N S CPU Interface Adapter PAC-252...
  • Page 2 PAC-252 Installation Instructions DISCLAIMER WARNING: Failure to read, thoroughly understand, and Milestone AV Technologies, Inc., and its affiliated corporations follow all instructions can result in serious personal injury, and subsidiaries (collectively, "Milestone"), intend to make this damage to equipment, or voiding of factory warranty! It is the manual accurate and complete.
  • Page 3 Installation Instructions PAC-252 LEGEND Tighten Fastener Pencil Mark Apretar elemento de fijación Marcar con lápiz Befestigungsteil festziehen Stiftmarkierung Apertar fixador Marcar com lápis Serrare il fissaggio Segno a matita Bevestiging vastdraaien Potloodmerkteken Serrez les fixations Marquage au crayon Loosen Fastener Drill Hole Aflojar elemento de fijación...
  • Page 4 PAC-252 Installation Instructions TOOLS REQUIRED FOR INSTALLATION 1/8" (included) 5/32" (included) PARTS A (1) B (2) C (6) J (1) 1/8" K (1) E (4) 5/32" I (8) G (4) 10-24x3/8" 10-24x7/8" Phillips D (4) F (8) H (4) 10-24x3/8"...
  • Page 5 Installation Instructions PAC-252 Assembly And Installation Using a 10-24 button head cap screw (G) inserted from inside of bracket, secure mounting button (E), with chamfered hole of mounting button (larger surface) facing bracket, to bracket. Repeat with other three mounting buttons.
  • Page 6 CPU inside adapter. 10. Lift Interface Adapter (A) up to Chief Mount, aligning buttons (E) of adapter with slots in the Chief Mount. Make sure the Install the CPU Inside adapter. tear drop slots of Interface Adapter (A) face down replicating those of the Chief Mount.
  • Page 7 Installation Instructions PAC-252...
  • Page 8 Europe A Fellenoord 130 5611 ZB EINDHOVEN, The Netherlands P +31 (0)40 2668620 F +31 (0)40 2668615 Chief Manufacturing, a products division Asia Pacific A Office No. 1 on 12/F, Shatin Galleria of Milestone AV Technologies 18-24 Shan Mei Street...
