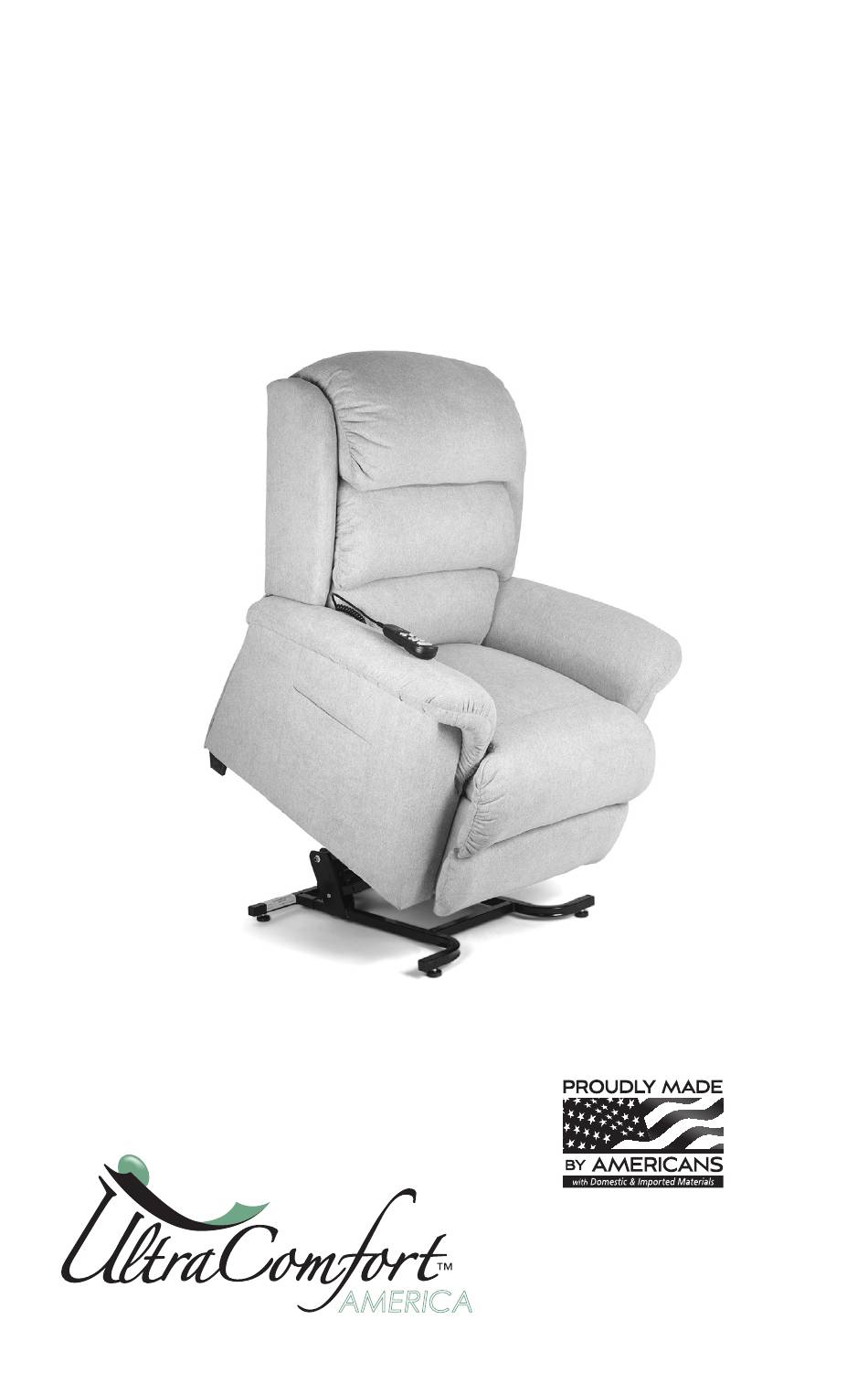

- Page 1 Power Lift & Recline Chair OWNER’S MANUAL LIMITED LIFETIME WARRANTY UC559 Power Lift and Recline 401 Bridge Street Old Forge, Pa. 18518 Phone 866-793-5100 AMERICA Fax 866-255-9962 Comfort That’s Patented ™ www.ultracomfort.com MSWARB-UC-06.21.2021...
- Page 2 To learn more about your recliner and other UltraComfort products, visit our website at www.ultracomfort.com. Also, please note the following safety information: This power lift recliner is a motor operated appliance approved for household and commercial use designed to help you sit down and stand up.
-
Page 3: Safety Guidelines
Safety Guidelines The symbols below are used in the owner’s manual and/or on the product to identify warnings and notify you of important safety information. Make sure you read and understand them completely. WARNING! Indicate(s) a hazardous situation which, if not avoided, could result in death or serious injury. - Page 4 continued from previous page Safety Guidelines Indoor use only! Do Not Smoke! Electrical hazard! Do not dispose in trash! Batteries required!
- Page 5 Great care has been taken to provide you with total comfort and safety. UltraComfort thoroughly inspects and tests each unit prior to shipment. WARNING Care should be taken in the unpacking of this unit, so as not to cause injury to persons or damage to the unit.
- Page 6 Do not smoke while operating, sitting or resting in the chair. To reduce risk of electrical shock, do not immerse any of the electrical components into a liquid, or spill any liquids onto electrical components. Do not open any of the electrical components. There are no serviceable parts.
- Page 7 Consult the owner’s manual of the chair and a physician to determine if you are capable of moving or lifting the chair, as this will cause serious injury if not done properly. Verify that all objects including hands and fingers are not between the arm of the chair and the open compartment before closing the compartment as this will result in property damage or serious injury.
- Page 8 Models UC214, UC332-M, UC332-L, UC480, UC520, UC536-MLA, UC542-SMA, UC542-M, UC542-L, UC544-SMA, UC544-MED, UC544-LAR, UC549-SMA, UC549-MED, UC549-LAR, UC550-JPT, UC550-M, UC550-L, UC550-M26, UC556-M, UC559-SMA, UC559-MED, UC559-LAR, UC559-M26, UC790, UC798-MLA 1. Remove AC/DC adapter (transformer) from packaging located under base of chair. Place two 9 volt alkaline batteries (not included) into the slots provided as shown.
- Page 9 aking ower onneCtions hair Model UC542-ME6, UC549-M26 1. Install two 9 volt alkaline batteries in the inline battery holder as shown. The battery holder is zip tied (white) to the rear of the metal frame. Cut the white zip tie and extend the cable under and out behind the chair. L.E.D.
- Page 10 (chair firmly on the floor) after getting out of the chair so children, pets or obstructions do not get under the chair. Note: Your UltraComfort power lift chair can be stopped at any time during lift or recline by releasing the selected button, offering you a wide range of comfortable positions.
-
Page 11: C Hair O Peration
Peration Models UC550-M26, UC559-M26 1. To recline the back of the chair, press button (S1) and hold until the back reaches the desired position. Then release the button. 2. To bring the back of the chair to an upright position, press button (S2) and hold until the back reaches the desired position. - Page 12 Flopping down into the chair will damage it and could cause personal injury. Press button (S3 or S5). As the chair continues downward, adjust yourself into a position that is comfortable to you. Continue holding button until chair is in the seated position (chair firmly on the floor), then release the button.
- Page 13 rive ontroL Peration 1. Getting into your lift chair. While standing next to your chair, press button (S7) and raise the chair to a height you can sit against. This height will vary from person to person depending on the individual’s needs. Raise the chair high enough so you do not have to flop down into the chair.
-
Page 14: Factory Reset
1. Press and hold program button (SP). The back light goes off while pressed. 2. In about 3 seconds the backlight will start flashing (one flash) 3. Within 5 seconds, press one of the memory buttons (S5, S6, S8, S10) to save the position to the button pressed. -
Page 15: Power Lock Out
Chair Operation Model UC480 BHV The PWR button needs to be turned on to activate all the functions of the hand control. To turn the power on to the hand control, press the PWR button at the top of the hand control. The PWR button will glow green. To turn off the power to the hand control, press the PWR button again. - Page 16 Should you ever encounter a problem with the operation of your lift chair, such as mechanical or electrical problems, discontinue all use of the product upon discovery of the problem. Contact the provider from whom you purchased your chair. They will be able to resolve problems and take care of service if needed.
-
Page 17: B Attery B Ack U P S Ystem
YsteM Your UltraComfort power lift chair comes with a battery back up system so the chair can return to the seated position in the event of a household power failure. The batteries have enough energy to bring the chair to a seated position from the recline position. - Page 18 Lifetime Warranty UltraComfort warrants for the lifetime of the chair by the original consumer to repair or replace at their option the Lift Mechanism, Recline Mechanism and Chair Frame. UC544-SMA, UC544-MED, and UC544-LAR chair frames are limited to 5 years.
- Page 19 During the period beginning with the expiration of the full three year parts warranty offered above and continuing through the seventh year after date of original purchase by a consumer, UltraComfort will warrant the electrical parts on the following pro-rated basis. Year 4 earns a 35% discount off suggested retail price.
-
Page 20: Care And Maintenance
CARE AND MAINTENANCE our lift chair will require routine maintenance checks. You can perform some of these checks, while others may require assistance from a provider. By following these maintenance checks, you can make sure your lift chair gives you years of trouble-free operation. If you have any questions or concerns regarding your lift chair’s care and maintenance, contact your provider. -
Page 23: For Your Records
Your reCorDs Please fill in your Power Lift & Recline Chair information below. This information will be useful in the event that you should ever need to contact UltraComfort, Inc. concerning your lift chair. Date of Purchase ___________________________________________________ Model ____________________________________________________________... -
Page 24: Read Before Operating
CAUTION READ BEFORE OPERATING FAILURE TO DO SO MAY VOID WARRANTY Chair must be placed to allow free movement between: BACK of CHAIR and WALL FOOTREST and any object in FRONT of CHAIR Keep children, pets and foreign objects from back of chair or underneath chair and from in front of footrest while operating chair.
