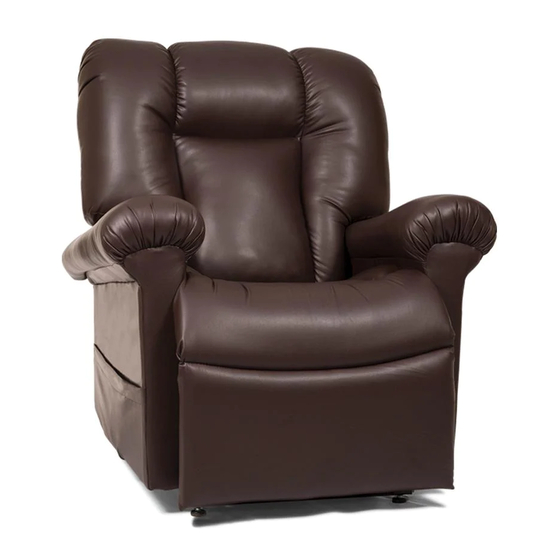

ultracomfort UC562 Owner's Manual
  1. Manuals
  2. Brands
  3. ultracomfort Manuals
  4. Indoor Furnishing
  5. UC562
  6. Owner's manual

ultracomfort UC562 Owner's Manual

Hide thumbs Also See for UC562:

Advertisement

Table of Contents

Power Lift & Recline Chair
OWNER'S MANUAL
LIMITED LIFETIME WARRANTY
UC562, UC570, UC490 & UC799
ECLIPSE TECHNOLOGY
Comfort That's Patented
UC562-MLA Medium/Large
Power Lift and Recline
AMERICA
AND
™
MSWARB-UC562+UC570+UC490+UC799-041421
401 Bridge Street
Old Forge, Pa. 18518
Phone 866-793-5100
Fax 866-255-9962
www.ultracomfort.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UC562 and is the answer not in the manual?

Questions and answers

Related Manuals for ultracomfort UC562

Summary of Contents for ultracomfort UC562

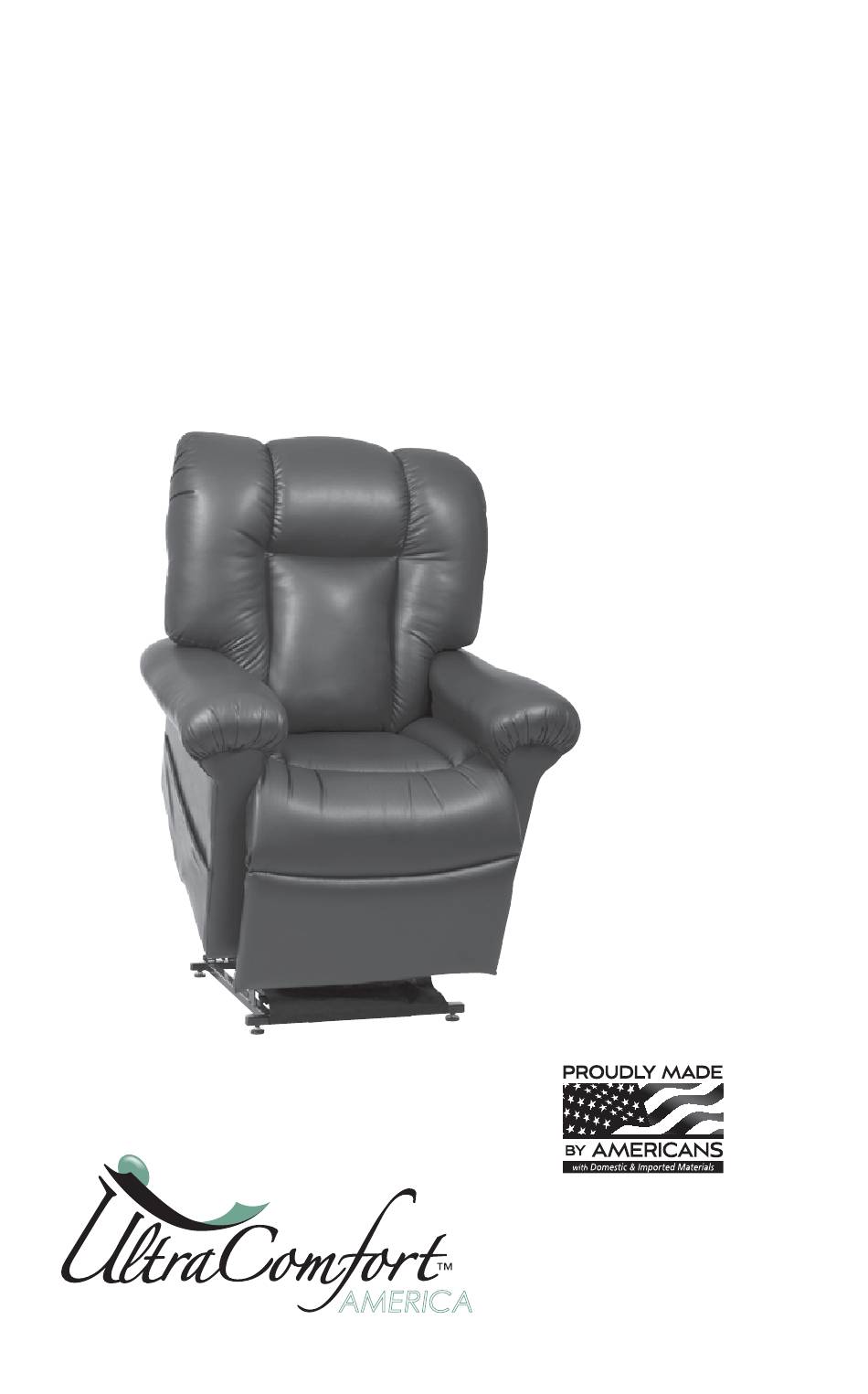

  • Page 1 Power Lift & Recline Chair OWNER’S MANUAL LIMITED LIFETIME WARRANTY UC562, UC570, UC490 & UC799 ECLIPSE TECHNOLOGY UC562-MLA Medium/Large Power Lift and Recline 401 Bridge Street Old Forge, Pa. 18518 Phone 866-793-5100 AMERICA Fax 866-255-9962 Comfort That’s Patented ™ www.ultracomfort.com...
  • Page 2 We hope that you enjoy years of pleasurable use of your UltraComfort chair and that this chair becomes a true assist to you in both sitting down and standing up.

  • Page 3: Safety Guidelines

    Safety Guidelines The symbols below are used in the owner’s manual and/or on the product to identify warnings and notify you of important safety information. Make sure you read and understand them completely. WARNING! Indicate(s) a hazardous situation which, if not avoided, could result in death or serious injury.
  • Page 4 continued from previous page Safety Guidelines Class II Device! Indoor use only! Do Not Smoke! Electrical hazard! Do not dispose in trash!
  • Page 5 Great care has been taken to provide you with total comfort and safety. UltraComfort thoroughly inspects and tests each unit prior to shipment. WARNING Care should be taken in the unpacking of this unit, so as not to cause injury to persons or damage to the unit.
  • Page 6 Do not smoke while operating, sitting or resting in the chair. To reduce risk of electrical shock, do not immerse any of the electrical components into a liquid, or spill any liquids onto electrical components. Do not open any of the electrical components. There are no serviceable parts.
  • Page 7 Verify that all objects including hands and fingers are not between the arm of the chair and the open compartment before closing the compartment as this will result in property damage or serious injury. This is an electrical device and will be impacted by any power failure. To operate this chair properly, you must read and understand the intended use of the product, and overall operation of the chair as misuse, or lack of proper training may lead to serious injury.
  • Page 8 Models UC562-MLA, UC570-JPT, UC570-MED, UC570-LAR, UC490-MLA, UC799-MLA 1. Remove AC/DC adapter (transformer) from packaging located under base of chair. Place transformer on floor behind the chair. 2. Locate the power cord from the motor. It is attached to the motor shaft under the chair with a white zip tie.
  • Page 9 rive with CLiPse ontroL Peration Model UC570 1. Getting into your lift chair. While standing next to your chair, press button (S7) and raise the chair to a height you can sit against. This height will vary from person to person depending on the individual’s needs. Raise the chair high enough so you do not have to flop down into the chair.

  • Page 10: Factory Reset

    Programming the Memory Buttons S6 and S8 Press one of the preprogrammed buttons (S6, S8) and hold until the chair stops. Press buttons (S1 thru S4) to micro adjust those positions to suit your needs. Use the following procedure to reprogram (S6, S8) buttons after you have the chair in your desired position.
  • Page 11 UC490 Power Lift Chair Operation 1. To recline your chair, press the down button (S2) and hold until you reach your desired position. Then release the button. 2. To return to a seated position from recline, press the up button (S1) and hold until the chair returns to a closed seated position.
  • Page 12 Note: Your UltraComfort power lift chair can be stopped at any time during lift or recline by releasing the selected button, offering you a wide range of comfortable positions. Select the position that best suits your needs. The motor is set to shut off when it reaches its fully extended or fully retracted position if the selected button is not released.
  • Page 13 CLiPse ontroL Peration UC562, UC799 odels 1. Getting into your lift chair. While standing next to your chair, press button (S7) and raise the chair to a height you can sit against. This height will vary from person to person depending on the individual’s needs. Raise the chair high enough so you do not have to flop down into the chair.

  • Page 14: Headrest Adjustments

    rive with CLiPse ontroL Peration ContinueD Headrest Adjustments 1. To move the head rest up and out. Press button (S14) and hold it until the head rest reaches a position suitable for you, then release the button. 2. To move the head rest down and in. Press button (S13) and hold it until the head rest reaches a position suitable for you, then release the button.

  • Page 15: Troubleshooting

    Troubleshooting The setup of the chair requires the steps to be conducted as stated. If the chair does not operate correctly one of the following may have occurred: • The incorrect buttons were used during setup. • The buttons were released prior to the chair reaching the final setup position. •...
  • Page 16 rive with CLiPse ontroL Peration ContinueD Hand Control Disable Hand control disable, disables all functions on the hand control. 1. To disable, press and hold the program button (SP) for 4 seconds until the backlight starts flashing. Then press button (S7). 2.
  • Page 17 NOTICE To reduce the risk of potential product damage: Follow these instruction to help ensure product quality over the life of the system. Failure to follow these instructions may invalidate the warranty. Do not attempt to disconnect the power cord by pulling the power cord. Always hold the power plug and pull it out.
  • Page 18 Smart Tek (Power Indication) Your power lift chair is equipped with a backlit hand control indicating power to the hand control. Your power lift chair also comes with a power indicator light on the transformer and on the power cord connecting the motor to the transformer. The lights illuminate green constantly indicating power from the outlet to the transformer and the motor.
  • Page 19 atenteD CLiPse ositioning eChnoLogY TV in Eclipse* Lounge Lounge Reclined* Zero Gravity* Rejuvenate Trendelenburg* Chair arm removed for demonstration purposes. *not available on the UC490...
  • Page 20 Lifetime Warranty UltraComfort warrants for the lifetime of the chair by the original consumer to repair or replace at their option the Lift Mechanism, Recline Mechanism and Chair Frame. Labor to replace these parts is subsidized on the UC562-MLA, UC570-JPT, UC570-MED, UC570-LAR, UC490-MLA and UC799-MLA for a period of three years on above parts.

  • Page 21: Care And Maintenance

    CARE AND MAINTENANCE our lift chair will require routine maintenance checks. You can perform some of these checks, while others may require assistance from a provider. By following these maintenance checks, you can make sure your lift chair gives you years of trouble-free operation. If you have any questions or concerns regarding your lift chair’s care and maintenance, contact your provider.
  • Page 22 otes...
  • Page 23 otes...
  • Page 24 otes...

  • Page 27: For Your Records

    for Your reCorDs Please fill in your Power Lift & Recline Chair information below. This information will be useful in the event that you should ever need to contact Ultra Comfort, Inc. concerning your lift chair. Date of Purchase ___________________________________________________ Model ____________________________________________________________ Serial Number _____________________________________________________ Your Ultra Comfort representative or provider...

  • Page 28: Read Before Operating

    CAUTION READ BEFORE OPERATING FAILURE TO DO SO MAY VOID WARRANTY Chair must be placed to allow free movement between: BACK of CHAIR and WALL FOOTREST and any object in FRONT of CHAIR Keep children, pets and foreign objects from back of chair or underneath chair and from in front of footrest while operating chair.
