Summary of Contents for ultracomfort UC476

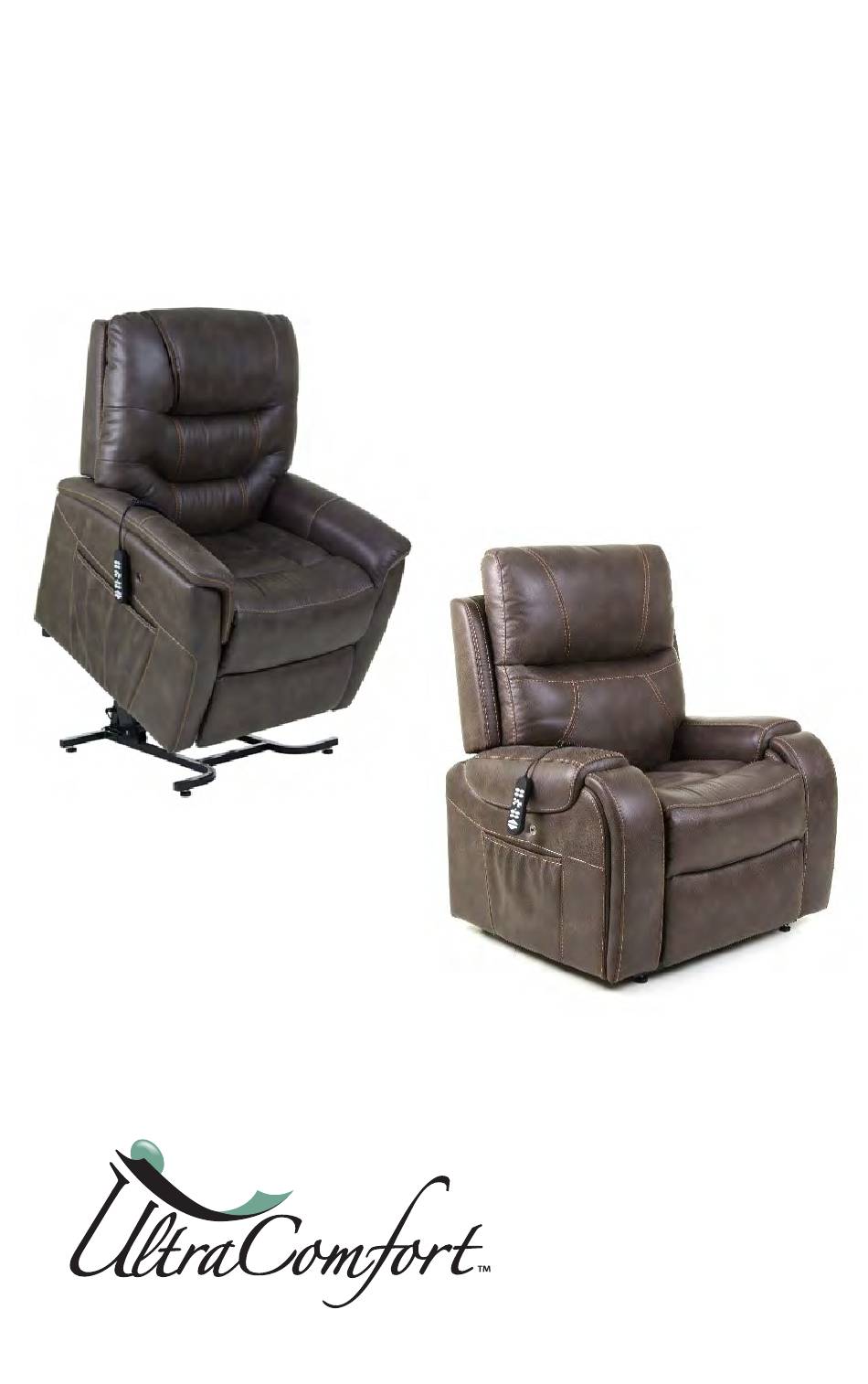

- Page 1 Power Lift & Recline Chair OWNER’S MANUAL LIMITED LIFETIME WARRANTY UC476 Power Lift and Recline UC478 Power Lift and Recline 401 Bridge Street Old Forge, Pa. 18518 Phone 866-793-5100 Fax 866-255-9962 A M E R I C A www.ultracomfort.com MSWARB-UC476-UC478-041621...
- Page 2 We hope that you enjoy years of pleasurable use of your UltraComfort chair and that this chair becomes a true assist to you in both sitting down and standing up.
-
Page 3: Safety Guidelines
Safety Guidelines The symbols below are used in the owner’s manual and/or on the product to identify warnings and notify you of important safety information. Make sure you read and understand them completely. WARNING! Indicate(s) a hazardous situation which, if not avoided, could result in death or serious injury. - Page 4 continued from previous page Safety Guidelines Class II Device! Indoor use only! Do Not Smoke! Electrical hazard! Do not dispose in trash!
- Page 5 Great care has been taken to provide you with total comfort and safety. UltraComfort thoroughly inspects and tests each unit prior to shipment. WARNING Care should be taken in the unpacking of this unit, so as not to cause injury to persons or damage to the unit.
- Page 6 Do not smoke while operating, sitting or resting in the chair. To reduce risk of electrical shock, do not immerse any of the electrical components into a liquid, or spill any liquids onto electrical components. Do not open any of the electrical components. There are no serviceable parts.
- Page 7 Consult the owner’s manual of the chair and a physician to determine if you are capable of moving or lifting the chair, as this will cause serious injury if not done properly. Verify that all objects including hands and fingers are not between the arm of the chair and the open compartment before closing the compartment as this will result in property damage or serious injury.
- Page 8 Models UC476-MED, UC476-LAR, UC478-MLA Read before assembly. 1. Remove the transformer, hand control, and power wire from the wooden cross rail (located behind the lower outside back) by removing the white zip tie. Place transformer on the floor behind the chair.
- Page 9 4. Connect the red and black connectors from the seat back to the red and black connectors of the chair. Red to red and black to black. Then close the locks to secure them. 5. Recline the back of the chair to expose the zipper.
- Page 10 hair oCation You will want to place your chair in the room where it will be most convenient for you, such as near the television, radio, reading light, end table, or other furniture. Leave enough space between back of chair and wall or other obstruction to allow chair to recline about 24 inches.
- Page 11 Initial Hand Control Setup This setup is required to ensure proper operation of your lift chair's control system. ZK3200-UC Setup/Reset Procedure: Press and hold both buttons (S1) Backrest down and (S3) Footrest up simultaneously (see photo) until the chair stops moving. Continue to hold both buttons simultaneously for an additional three seconds.
- Page 12 & L rive uMbar ontroL Peration 1. Getting into your lift chair. While standing next to your chair, press button (S7) and raise the chair to a height you can sit against. This height will vary from person to person depending on the individual’s needs. Raise the chair high enough so you do not have to flop down into the chair.
-
Page 13: Function Lock
Programming the Memory Buttons S5, S6, S8 and S10 Press one of the preprogrammed buttons (S5, S6, S8, S10) and hold until the chair stops. Press buttons (S1 thru S4) to micro adjust those positions to suit your needs. Use the following procedure to reprogram (S5, S6, S8, S10) buttons after you have the chair in your desired position. - Page 14 Should you ever encounter a problem with the operation of your lift chair, such as mechanical or electrical problems, discontinue all use of the product upon discovery of the problem. Contact the provider from whom you purchased your chair. They will be able to resolve problems and take care of service if needed.
- Page 15 Lights Out Feature: This feature will automatically shut off the backlight on the hand control after a specified period of inactivity (approximately 15 seconds). To activate the “Lights Out Feature”, follow the procedure below. 1. Press and hold the (SP) button “M”, until the backlight starts flashing. 2.
- Page 16 Model: UC478 Compartment and Features Wireless Charger - Allows you to charge your cell phone by simply laying the device on the charging pad. Storage Compartment - Allows for convenient storage and easy access of your TV remote control. USB Port - Allows you to use and/or charge your electronic devices such as a tablet or laptop.
- Page 17 UltraComfort warrants for the lifetime of the chair by the original consumer to repair or replace at their option the Lift Mechanism, Recline Mechanism and Chair Frame. Labor to replace these parts is subsidized on all models as follows: The UC476 is subsidized for a period of three years on above parts.
-
Page 18: Care And Maintenance
CARE AND MAINTENANCE our lift chair will require routine maintenance checks. You can perform some of these checks, while others may require assistance from a provider. By following these maintenance checks, you can make sure your lift chair gives you years of trouble-free operation. If you have any questions or concerns regarding your lift chair’s care and maintenance, contact your provider. -
Page 21: For Your Records
for Your reCorDs Please fill in your Power Lift & Recline Chair information below. This information will be useful in the event that you should ever need to contact Ultra Comfort, Inc. concerning your lift chair. Date of Purchase ___________________________________________________ Model ____________________________________________________________ Serial Number _____________________________________________________ Your Ultra Comfort representative or provider... -
Page 22: Read Before Operating
CAUTION READ BEFORE OPERATING FAILURE TO DO SO MAY VOID WARRANTY Chair must be placed to allow free movement between: BACK of CHAIR and WALL FOOTREST and any object in FRONT of CHAIR Keep children, pets and foreign objects from back of chair or underneath chair and from in front of footrest while operating chair.
