Amcrest IP2M-866EW / IP2M-866EB

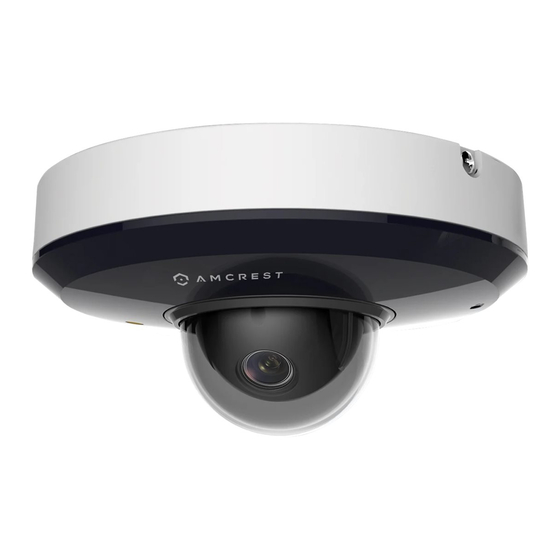

2MP Outdoor POE PTZ Speed Dome Camera
User Manual
Version: 1.0.1
th
Revised April 8
, 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP2M-866EW and is the answer not in the manual?

Questions and answers

Related Manuals for Amcrest IP2M-866EW

Summary of Contents for Amcrest IP2M-866EW

  • Page 1 Amcrest IP2M-866EW / IP2M-866EB 2MP Outdoor POE PTZ Speed Dome Camera User Manual Version: 1.0.1 Revised April 8 , 2019...

  • Page 2: Table Of Contents

    Amcrest Surveillance Pro ............................. 20 Amcrest Blue Iris ................................38 Web Operation ................................47 Remote Web Access Setup ............................73 Amcrest Cloud Desktop Setup ............................. 75 Web Access Setup (AmcrestView.com) ........................75 Operation and Interface .............................. 75 Playback ..................................80 Setup ....................................

  • Page 3: Welcome

    Email Amcrest Customer Support support@amcrest.com Important Security Warning To keep your Amcrest camera secure and prevent unauthorized access, please make sure to follow the steps below: • Always make sure that your camera has the latest firmware as listed on www.amcrest.com/firmware...

  • Page 4: Features And Specifications

    Overview The Amcrest Outdoor Speed Dome PTZ camera is an excellent tool for digital surveillance that can be useful to a wide variety of users. The camera connects to any router and uses an internet connection to allow the user to access all of its functionality from many internet connected devices.

  • Page 5: Device Overview

    camera shows a date/time overlay to ensure accurate viewing of events when they occurred. Lastly, the Outdoor PTZ camera can support video enlargement of certain zones within a stream. Device Overview This section provides a brief overview of your camera. Power Port Provides an optional DC12V/2.0A power adapter port.

  • Page 6: Connection & Installation

    Note Please make sure the Micro SD card is in the status of non-read & write when removing the microSD card, otherwise it may cause data loss and SD card damage. Connection & Installation This section provides information about the connection and installation of the Amcrest camera. Connection Guide The camera initially should be connected via the following method: •...
  • Page 7 Figure 3-1 Installation Conditions Ceiling-mounted speed dome can be installed on the hard ceiling structure both indoors and outdoors, the ceiling needs to meet the following installation conditions: • The ceiling shall be thick enough to install expansion bolts. • The ceiling shall sustain at least 8X weight of the speed dome, bracket and other accessories.
  • Page 8 Figure 3-3 Step 3: Place the speed dome pedestal closely to the changeover plate after pulling the cable through the hole, rotate it according to the arrow shown on the device edge and hang the speed dome on the changeover plate, which is shown in Figure 3-4.
  • Page 9 Figure 3-5 Step 5: Installation is completed and is represented below in Figure 3-6. Figure 3-6 Wall Mount As for wall mount, you will need to use a wall-mount bracket and ceiling bracket, which is shown in Figure 3-7 and Figure 3-8 respectively.
  • Page 10 Figure 3-7 Figure 3-8 Installation Conditions Wall-mounted speed dome can be installed on the hard wall structure both indoors and outdoors, the wall needs to meet the following installation conditions: • The wall shall be thick enough to install expansion bolts. •...
  • Page 11 Figure 3-9 Step 2: Place the device cable closely into the wiring channel and use screws to install changeover plate of speed dome on the ceiling changeover plate, which is shown in Figure 3-10. Figure 3-10 Step 3 Rotate the speed dome clockwise after the device pedestal is closely clung to the changeover plate, and then hang the speed dome on the changeover plate, which is shown in Figure 3-11.
  • Page 12 Figure 3-11. Step 4: Insert the screw into the holes on the side of changeover plate, and then fix the speed dome together with the changeover plate, which is shown in Figure 3-12. Figure 3-12 Step 5: Pull the device cable and ceiling changeover plate flange through the wall-mounted bracket, twist the screws into the wall-mounted bracket, and then install the changeover plate and speed dome camera onto the wall-mounted bracket as shown in Figure 3-13.
  • Page 13 Figure 3-13 Step 6: Run the device cables through the wall and install the completed bracket onto the wall. A properly installed wall mount is represented in Figure 3-14. Figure 3-14...

  • Page 14: Camera Access Setup

    Camera setup methods To make your experience with the Amcrest camera easy and simple, we've provided multiple ways to set up, view, and operate your camera depending on your needs. Please follow the instructions on this page to set up your camera in the way that works best for you.

  • Page 15: App Setup

    1. Download and open the Amcrest Cloud app from the App Store or Play Store. Note: Connect your mobile device to the same network that your camera is on. 2. Register for an Amcrest Cloud account. To register click on Sign Up and fill out the form to complete registration.
  • Page 16 3. Tap on Add Camera 4. Give your camera a name (Ex. Garage, Living Room, Kitchen, etc.) and tap Next to continue. 6. If you are adding a new camera that does not have 5. Scan the QR code on the back/side/bottom of a set password the app will automatically detect that the camera or manually enter the camera’s serial a new camera is being added.
  • Page 17 Make sure your camera is plugged into a power source and your Ethernet cable is connected from the camera to your router. • Make sure your camera and mobile device are on the same network during setup. Download and open the Amcrest View Pro app from the App Store or Play Store.
  • Page 18 2. Open the app and tap on the + symbol in the middle 3. Tap on Add Device to add a new device to your app. of the screen to begin adding your PoE device. 4. Tap on PoE Camera Next, select a connection type.
  • Page 19 For more information about Enter a password between 8 and 32 characters and Amcrest View Pro and its functionalities visit confirm the password. Press OK to continue. amcrest.com/support For more information about Amcrest View Pro and its functionalities visit amcrest.com/support...

  • Page 20: Desktop Access Setup

    It is a free software provided by Amcrest that can provide a means of accessing all your devices in one central location without the use of a plugin or web browser.
  • Page 21 Select the functions that you want to install with the software. You can choose to bundle the PC-NVR function with the software. PC-NVR turns your computer into an NVR and will utilize your hard drive (HDD) on your PC to store and access recorded video.
  • Page 22 Once the software has finished installing you will see a few options. You will have the options to view the release note and run the Amcrest Surveillance Pro software. To view the release notes after pressing Finish select the Release note checkbox. To begin running the software directly after pressing finish, select the Run Amcrest...
  • Page 23 Setting a Password After the installation of the Amcrest Surveillance Pro software you will need to set an administrator password. This password will be set password for the admin account on the software. When a valid password has been entered, confirm the password in the Confirm Password field and click OK to continue.
  • Page 24 Adding Devices into Amcrest Surveillance Pro To provide the highest efficiency and security when adding a device into the Amcrest Surveillance Pro software it is highly recommended to add the device using a direct IP address as opposed to using a P2P connection. Using a direct IP provides a direct connection to your device without the use of utilizing a P2P server.
  • Page 25 After locating the IP address in the Amcrest IP Config tool for the device, return to the Amcrest Surveillance Pro software and click on the Add button. In the add menu, enter a name you would like to assign to your device. In this example, we are using “Front Door Camera”.
  • Page 26 For security purposes it is highly recommended to set the camera to a static IP address. Setting your device to a static IP will ensure the stability and the efficiency of your device while operating it in the Amcrest Surveillance Pro...
  • Page 27 In the Organizations menu on the far left, click on the device you wish to modify. Then In the device configuration menu, under General click on the Network icon to access the network settings for your device. In the Network Settings menu, in the Mode section click on the Static radio button to set your device to a static IP. Click Save and Apply to apply the network settings to your device.
  • Page 28 Viewing an Added Device To begin viewing an added device, navigate to the Home Page of the software and click on the LIVEVIEW icon located in the Basic section. In the Organizations menu, on the far-right side of the live view screen, double-click the device you want to view to load the live feed into the viewer.
  • Page 29 Item Function Please refer to the following contents for detailed information. ⚫ : Enable/disable local record. ⚫ : Snapshot. Bit stream ⚫ information : Enable/disable audio. and shortcut ⚫ : Enable/disable bidirectional talk. operation ⚫ : Instant playback. menu ⚫ : Digital zoom ⚫...
  • Page 30 Note: PC-NVR is not compatible with MacOS. PC-NVR is only compatible with Windows based operating systems. To begin setting up PC-NVR, navigate to the command prompt menu for your computer. The command prompt can be found by typing “cmd” in the Type here to search (Cortona) option on your desktop. Click on Command Prompt.
  • Page 31 When the IPv4 address for your computer has been located, navigate back to the home page in the Amcrest Surveillance Pro software and click on the Devices icon located in the Settings menu. In the Devices menu, click on the button.
  • Page 32 Click on the Plus button to add a camera from the cameras you have connected to Amcrest Surveillance Pro. The Add Channel window will appear, select your camera from the Default Group or Custom Group list you’ve created. The camera will appear in the right screen, check the IPCamera check box. Click Save.
  • Page 33 Disk Manager will appear showing you a list of drives that could be used to allocate storage space for your cameras through Amcrest Surveillance Pro. Select a disk you would wish to use for recording purposes, you may allocate as much space as you have available on the drive within its minimum and maximum allowance.
  • Page 34 How to Setup Recording The Amcrest Surveillance Pro software allows you the opportunity to set your added device to record on motion or on continuous (general) recording. You can also set recording schedules for your device.
  • Page 35 Smart Smart is set to only apply smart features such as, face detection or other intelligent features, to trigger recording. Amcrest cameras do not currently support smart features. However, this is designated with an orange color in the software. To begin setting a record schedule for your device, click on the icon next to the day you want to schedule your record plan.
  • Page 36 How to View Playback To playback recorded material in the Amcrest Surveillance Pro software, navigate back to the Home Page and in the Basic menu, click on Playback. In the Organizations menu, click on the device you would like to view playback on. Ensure the checkbox next to...
  • Page 37 In the Type dropdown box, select which type of recording you would like to view. To view all records, make sure All is selected from the drop downbox. Next, ensure the correct stream is enabled in the Stream menu. The default stream will be Main Stream.

  • Page 38: Amcrest Blue Iris

    Note: Make sure the camera and the PC are on the same network before proceeding. Use one of the following web browsers: Safari, Internet Explorer, or the Google Chrome app. To easily connect to the camera’s interface, install and run the Amcrest IP Config tool. You can download the IP Config software from www.amcrest.com...
  • Page 39 • 7200+ RPM drives and/or SSD drive To install the software on your computer, click on the Amcrest+Blue+Iris.exe file to launch the installation wizard. Click Next to begin the installation process and allow the software to download. Please review the license terms before installing the Amcrest Blue Iris software. Read the license agreement carefully, and then to accept the terms, click the radio button next to the I accept the terms in the license agreement statement.
  • Page 40 Choose a file destination in which you would like the Amcrest Blue Iris software to download. If you would like to specify another path, besides the default path, click Change. It is recommended to leave the default download path when installing the software. To continue the installation, click Next.
  • Page 41 To begin installing the software click on the Install button and allow the software to download to your computer. When the software has finished downloading, click on the Finish button to launch the software.
  • Page 42 Purchasing an Amcrest Blue Iris License Amcrest provides a 15-day free trial of the Amcrest Blue Iris software. If you find the Blue Iris software useful, please register and purchase a license. To continue the free trial version of this software, click Next to continue.
  • Page 43 Amcrest offers two versions of the Blue Iris software; Full, and Lite. The full version ($59.95) allows you to use up to 64 cameras with all the added features of Blue Iris. The Lite version allows you to use a single camera on the software with all the functionality of the software.
  • Page 44 IP address associated with the device you would like to view in the browser. This is the IP address that will be used in the Amcrest Blue Iris Software. To add a device, navigate to the Blue Iris software and click on the button.
  • Page 45 Next, enter the IP address of the device. This is the IP address discovered in the IP config tool. Enter the IP address in the Address field, then enter the user name and password for your device. If this is the first time using your camera, the password will be admin.
  • Page 46 The device will now be successfully connected to the Blue Iris software. To view an informative video on how to add an Amcrest device into the Amcrest Blue Iris software, please view this informative video: https://www.youtube.com/watch?v=RqcfLHANCd8 For more information on the features included in the Blue Iris software visit,...

  • Page 47: Web Operation

    You can also use the Amcrest Cloud to access your device from your computer. Amcrest Cloud does not require the use of a plugin to function and is compatible on most modern browsers. For more information on the Amcrest Cloud, visit amcrest.com/cloud.
  • Page 48 Click on the downloaded SeaMonkey Setup file and run the setup wizard. For purposes of these instructions we will be using Windows, however, the Mac setup process will be similar. Click Next to proceed. Please review the license terms before installing SeaMonkey. Read the license agreement carefully, and then to accept the terms, click the checkbox next to the I accept the terms in the License Agreement checkbox.
  • Page 49 Choose the type of setup you prefer. There are two types of setup, Standard and Custom. In this case, it is recommended to run the standard setup since it is the most common. This is selected by default in the wizard. To continue, click the Next button.
  • Page 50 Allow the browser to install on your computer. When it has finished installing click on Finish to launch the browser. How To Access a Device Using SeaMonkey To access the web user interface, locate the IP address for your device using the Amcrest IP Config Tool. The Amcrest IP Config Tool can be downloaded at the following web page: amcerest.com/downloads...
  • Page 51 In the web user interface, enter the login credentials for your device. If this is the first time accessing the device, the username and password will both be admin. Click on Login. If this is the first-time logging into your device, you will be prompted to modify the password for your device. To modify the password, enter the new password you would like to use in the New Password field and confirm.
  • Page 52 Click on Save File to being downloading the plugin and save the file to your computer. The browsers Download Manager will appear, showing the plugin file that was just downloaded. Double click on the file in the download manager to begin installing the plugin to the SeaMonkey web browser. The browser will then show the live feed of your connected device in the web user interface.
  • Page 53 Using Multiple Cameras in the Web UI Due to chipset limitations with certain model Amcrest cameras, different plugins may be required when accessing your camera on your computer. This section is specifically geared towards customers who have 3MP and below cameras and are experiencing issues when accessing a newer, 4MP and above camera, simultaneously with their old setup.
  • Page 54 Choose the type of setup you prefer. There are two types of setup, Standard and Custom. In this case, it is recommended to run the standard setup since it is the most common. This is selected by default in the wizard. To continue, click the Next button.
  • Page 55 Allow the browser to install on your computer. When it has finished installing click on Finish to launch the browser.
  • Page 56 How To Access a Device Using Pale Moon To access the web user interface, locate the IP address for your device using the Amcrest IP Config Tool. The Amcrest IP Config Tool can be downloaded at the following web page: amcerest.com/downloads...
  • Page 57 To view your device on the browser you will need to download the plugin. To download the plugin, click on the Please click here to download and install the plugin prompt in the middle of the screen. Click on Save File to being downloading the plugin and save the file to your computer. The webplugin.exe will then be downloaded to the downloads folder and be shown in the Download Manager in the upper right-hand corner of the browser.
  • Page 58 Using Multiple Cameras in the Web UI Due to chipset limitations with certain model Amcrest cameras, different plugins may be required when accessing your camera on your computer. This section is specifically geared towards customers who have 3MP and below cameras and are experiencing issues when accessing a newer, 4MP and above camera, simultaneously with their old setup.
  • Page 59 Web based access for Amcrest device can be utilized in Google Chrome using the Amcrest Web View Chrome App. This is an app designed by Amcrest specifically for the use of accessing your device in Chrome without the use of a plugin and is available in the Chrome web store.
  • Page 60 To access your device using the Google Chrome Extension please refer to the information provided below. Locate the IP address for your device using the Amcrest IP Config Tool. The Amcrest IP Config Tool can be downloaded at the following web page: amcerest.com/downloads...
  • Page 61 The app will then show the live feed of your connected device in the web user interface. How to Access a Device Using Firefox The latest update of Mozilla Firefox will be discontinuing the use of plugins which may cause issues with accessing the web user interface for your device while using Firefox.
  • Page 62 The file will then begin to extract the setup Wizard. Click Next to continue the process. Choose the type of setup you prefer. There are two types of setup, Standard and Custom. In this case, it is recommended to run the standard setup since it is the most common. This is selected by default in the wizard. To continue, click the Next button.
  • Page 63 The wizard will then prompt you to install the software onto your computer. Click the Install button to install the browser. When the installation is complete, click on the finish button to automatically launch the browser.
  • Page 64 A shortcut icon will also be displayed on your desktop for quick access to the browser if necessary. Preventing Automatic Updates Once the browser has finished loading, it is recommended to make sure that no future automatic updates are applied to the browser. If an automatic update were to occur, the browser will revert to the most current version of the FireFox web browser which will prevent the use of plugins on your browser.
  • Page 65 In the options menu, click on Advanced and then click on the Update tab. In the update tab, select the Never check for updates radio button. This will deactivate your browser from obtaining any future updates of the browser. How to Access the Web User Interface Using FireFox Before accessing your device using Mozilla Firefox, ensure you are using the correct version of Firefox.
  • Page 66 Accessing the Web User Interface To access the web user interface, locate the IP address for your device using the Amcrest IP Config Tool. The Amcrest IP Config Tool can be downloaded at the following web page: amcerest.com/downloads...
  • Page 67 Enter this IP address into the Firefox web browser to load the web user interface. In the web user interface, enter the login credentials for your device. If this is the first time accessing the device, the username and password will both be admin. Click on Login. If this is the first-time logging into your device, you will be prompted to modify the password for your device.
  • Page 68 To view your device on the browser you will need to download the plugin. To download the plugin, click on the Please click here to download and install the plugin prompt in the middle of the screen. Click on Save File to being downloading the plugin. The webplugin.exe file will save to your downloads folder.
  • Page 69 After the web plugin has been installed, close out of the browser completely and then reopen the browser. Type in the IP address for your device into the browser and log into the web user interface with your device’s login credentials.
  • Page 70 To access your device using the Google Chrome Extension please refer to the information provided below. Locate the IP address for your device using the Amcrest IP Config Tool. The Amcrest IP Config Tool can be downloaded at the following web page: amcerest.com/downloads...
  • Page 71 Enter this IP address into the Internet Explorer browser and press enter to load the web user interface. In the web user interface, enter the login credentials for your device. If this is the first time accessing the device, the username and password will both be admin. Click on Login. If this is the first-time logging into your device, you will be prompted to modify the password for your device.
  • Page 72 Click Run to download the plugin. The browser will then show the live feed of your connected device in the web user interface.

  • Page 73: Remote Web Access Setup

    Click the Connections menu item on the left-hand menu and ensure that the HTTP port has changed. Click the DDNS menu item on the left-hand menu, pick Amcrest DDNS from the drop down box, click the checkbox next to Server Type, and then click the Save button on the bottom right.
  • Page 74 Port Forwarding Remote Web Access Setup Port Forwarding is an alternative method to setting up remote access for Amcrest cameras. This method should only be used if the UPnP/DDNS Remote Access method did not work. Below is a step-by-step walkthrough that details how to setup the camera for Remote Web Access using Port Forwarding: Login to your camera, open the main menu then go to Setup ->...

  • Page 75: Amcrest Cloud Desktop Setup

    View your camera live or watch recorded clips using the menu button on the top of the page. You can also use the Amcrest Cloud app on iOS and Android to add more cameras, play recordings, and view your camera live, from anywhere.
  • Page 76 The camera is now successfully set up for live viewing! For quick and easy remote access on your PC or Mac, please use amcrestcloud.com or amcrestview.com For additional assistance, please contact us at www.amcrest.com or give us a call at 1-888-212-7538. Step by step video tutorials available at http://www.amcrest.com/videos The main interface of the camera contains 6 major tabs on the top of the screen.
  • Page 77 Live This section of the manual details the camera’s interface, as well as all the operations the camera can perform. The live view tab allows the user to see a live video feed from the camera. The live view tab has five main sections: Section 1: This bar allows the user to select which stream type and which protocol they want to choose.
  • Page 78 Audio Click this button to enable or disable audio output from the camera. This feature allows the user to listen in on the audio the camera’s microphone is picking up. Bidirectional Talk Click and hold this button to enable bidirectional talk. This feature allows the user to broadcast audio from their computer to the camera.
  • Page 79 The PTZ control panel allows the user to position the camera in different ways The arrows on the PTZ control panel allow the user to move the camera’s position in a specific direction. The button in the middle of the direction arrow allows the user to select an area in the live view to zoom in on. The speed dropdown box allows the user to control the speed at which the camera moves.

  • Page 80: Playback

    Pan allows the user to set pan presets. The set pan preset allows the camera to pan to specific areas automatically. To create a pan, follow these steps: From the PTZ Function dropdown box, select Pan. Ensure you have a preset initially setup for the camera. Input the preset value and click Start.
  • Page 81 This allows the user to select files for download. Select the files by clicking the checkbox next to each file, and then click to download the files to your computer Cloud Storage The Cloud Storage tab allows the user quick access to the Amcrest Cloud website.

  • Page 82: Setup

    At this website (amcrestcloud.com) users can register for new accounts as well as view or modify existing accounts. For more information on Amcrest Cloud visit: amcrest.com/support Setup The Setup tab allows the user to change different camera settings Below is a screenshot of the setup tab:...

  • Page 83: Camera

    There are 4 main sections to note in the Setup tab: Menu Bar: The menu bar is composed of menu sections, which when clicked display any menu items that fall under their category. Menu Items: These menu items each open a different menu that allows the user to change specific settings for the camera.
  • Page 84 Below is an explanation for each of the fields on the Configuration tab in the Configuration menu item: Profile: This dropdown box allows the user to select which profile to modify. The 3 options are Day, Night, and Normal. Style: This dropdown box allows the user to select which style they would like to view the live view screen in. The options are;...
  • Page 85 part of the video, distortion may occur if the white balance is not accurate. Please note the video may not be clear if the value is too low. The recommended value ranges from 40 to 60. Chroma CNT: This slider is used to adjust how pure or monochromatic the image will be compared to a white surface.
  • Page 86 3D NR: This radio button allows the user to turn the 3D Noise Reduction feature on or off. 3D NR Level: This slider allows the user to specify the 3D Noise Reduction level. The value ranges from 1-50. To reset to default settings, click the Reset Defaults button. To refresh the screen, click on Refresh. To save the settings, click the Save button.
  • Page 87 Type: These radio buttons are used to Mode: This menu allows user to select day & night presets based on the surrounding environment of the camera. For more information on the items listed in this field, refer to the information provided below: Auto: Uses day and night sensitivity settings to change between color mode, infrared, and black&...
  • Page 88 OFF: Permanently turns off the IR lights. To reset to default settings, you can also click the Reset Defaults button. To refresh the screen, click on Refresh. To save the settings, click the Save button. Defog This menu allows the user to set defog settings which can be useful in foggy or hazy weather. For more information on this feature refer to the information provided below: Profile: This dropdown box allows the user to select which profile to modify.
  • Page 89 Below is an explanation for each of the fields on the Profile Management tab in the Configuration menu item: • Profile Management: This set of radio buttons allow the user to set what basis the profile management settings run on. There are 3 options: Normal, Full Time, and Schedule. Normal means that the system can be set to manually alternate between night and day based on the profiles for each.
  • Page 90 • Resolution: This dropdown box allows the user to set the resolution. The system supports various resolutions and they can be selected from this dropdown list. • Frame Rate (FPS): This dropdown box allows the user to select a frame rate. Frame rate settings are measured in frames per second (FPS) and can range from 1f/s to 25f/s in PAL mode and 1f/s to 30f/s in NTSC mode.
  • Page 91 • Quality: This dropdown box allows the user to select image quality. Quality is adjusted on a scale of 1-6. • Interval: This is to set snapshot frequency. The value ranges from 1 to 7 seconds. The maximum setting for a customized interval is 3600s/picture.
  • Page 92 The arrows on the PTZ control panel allow the user to move the camera’s position in a specific direction. The button in the middle of the direction arrow allows the user to select an area in the live view to zoom in on. The speed dropdown box allows the user to control the speed at which the camera moves.
  • Page 93 To reset to default settings, click the Reset Defaults button. To refresh the page, click the Refresh button. To save the settings, click the Save button. Path Below is a screenshot that shows the Path tab in the Video menu item: Below is an explanation for each of the fields on the Path tab in the Video menu item: •...

  • Page 94: Network

    Below is an explanation for each of the fields on the Audio menu: Enable: This checkbox allows the user to enable audio recording. • Encode Mode: This dropdown box allows the user to select what audio format the audio should be recorded in. •...
  • Page 95 This screen allows for TCP/IP settings to be modified for the camera to establish a connection to the network. Below is a screenshot of the TCP/IP settings tab: Below is an explanation of the fields on the TCP/IP settings tab: •...
  • Page 96 QR code scanning feature cannot be used. • QR Code: This image is a Quick Response (QR) code. By scanning this image using the Amcrest View app, this camera can establish a connection with the app.
  • Page 97 Connection The Connection menu item has two tabs: Connection and ONVIF. The Connection tab is where users can configure port connections. Below is a screenshot of the Connection settings tab: Below is an explanation of the fields on the Connection settings tab: •...
  • Page 98 For purposes of this guide, AmcrestDDNS will be used. AmcrestDDNS is a free DDNS service provided by Amcrest, and it must be renewed every year. A renewal reminder email will be sent to the email entered in the username field below.
  • Page 99 Below is an explanation of fields on the IP Filter settings screen: • Trusted Sites: This checkbox allows the user to enable the IP Filter feature for trusted sites. • Add IP/MAC: This button opens a popup that allows the user to add IP or MAC addresses to the trusted site list. Note: When accessing the camera externally, please add the MAC address of the router on the PC end.
  • Page 100 • Sender: This field allows the user to enter the sender email address. This email address will be the one that sends out all emails pertaining to the alerts and alarm emails sent by the camera. • Authentication: This dropdown box allows the user to select an encryption type. There are two types of email encryption protocols that are available.

  • Page 101: Ptz

    The third column shows the name of the protocol used by that service. To edit this, click the pencil button in the modify column for that line item. The fourth column shows the Internal Port used by that service to establish communication from the router to the camera.
  • Page 102 Below is an explanation of the features listed in this menu: Preset: Allows the user to add and delete preset options for PTZ functionality. To begin adding a preset to your camera, click the Add button. To refresh the screen click Refresh, to delete a preset, press Delete or to remove all the presets, click Remove All.
  • Page 103 Click and drag to set motion detection for certain days of the week. Also, periods of motion detection can be set for each day and enabled using the period settings on the bottom half of the screen. There are a total of 6 periods that can be set.

  • Page 104: Event

    The arrows on the PTZ control panel allow the user to move the camera’s position in a specific direction. The button in the middle of the direction arrow allows the user to select an area in the live view to zoom in on. The speed dropdown box allows the user to control the speed at which the camera moves.
  • Page 105 • Enable: This checkbox enables motion detection for the camera. • Schedule: Clicking this button opens a weekly schedule that can be used to set times. Click and drag to set motion detection for certain days of the week. Also, periods of motion detection can be set for each day and enabled using the period settings on the bottom half of the screen.
  • Page 106 When the setup button is clicked, a live stream of the video is shown. The user can then set up to 4 regions, each with their own region name, sensitivity (1-100), and threshold (1-100). Each region has a specific color, and the region selector tool is displayed when the mouse is moved to the top of the screen.
  • Page 107 • Snapshot: This checkbox allows the user to enable the camera to take a snapshot when a motion detection alarm is triggered. To reset to default settings, click the Reset Defaults button. To refresh the page, click the Refresh button. To save the settings, click the Save button.
  • Page 108 o Click and drag to set video tampering for certain days of the week. Also, periods of video tampering can be set for each day and enabled using the period settings on the bottom half of the screen. There are a total of 6 periods that can be set.
  • Page 109 • Enable: This checkbox enables an audio detection alarm for the camera. Enable Intensity Change: This checkbox enables intensity change for the camera audio. o Sensitivity is the amount of change required to increase the audio detected by a percentage. The lower the sensitivity, the more audio variance is required to trigger an alarm. •...

  • Page 110: Abnormality

    o Click and drag to set audio tampering for certain days of the week. Also, periods of audio detection can be set for each day and enabled using the period settings on the bottom half of the screen. There are a total of 6 periods that can be set.
  • Page 111 Below is an explanation of the fields on the SD Card settings tab: • Event Type: This dropdown box allows the user to select which SD card abnormality to set event triggers for. The 3 options are No SD Card, SD Card Error, and Capacity Warning. •...

  • Page 112: Storage

    Illegal Access This tab allows the user to set the camera’s response to an Illegal Access related abnormality. Below is a screenshot of the Illegal Access tab screen: Below is an explanation of the fields on the Illegal Access settings tab: •...
  • Page 113 Below is an explanation of the fields on the Record Schedule settings tab: Record Type: These checkboxes allow the user to select which recording type they want to configure on the schedule. There are 3 types of recordings: General: General recording means that the camera captures all footage for the specified time period. General recording is represented by the color green.
  • Page 114 Below is an explanation of the fields on the Snapshot Schedule settings tab: • Record Type: These checkboxes allow the user to select which snapshot type they want to configure on the schedule. There are 3 types of snapshots: General: General means that the camera will take snapshots during the specified time period. General recording is represented by the color green.
  • Page 115 Below is an explanation of the fields on the Holiday Schedule settings tab: • Record Type: These checkboxes allow the user to select which recording type they want to configure on the schedule. There are 2 types of recordings: Record: This checkbox is referring to video recording. Snapshot: This checkbox is referring to snapshot recording.
  • Page 116 • Event Type: This column designates storage options available to the camera. The options are SD Card, FTP, and NAS. • Record Type: These columns designate which recording type should be recorded to which event type. Check the box at the intersection of the record type and event type to designate where that recording should be sent to. To reset to default settings, click the Reset Defaults button.
  • Page 117 Below is an explanation of the fields on the FTP settings tab: • Enable: This checkbox allows the user to enable FTP uploading for the camera’s recorded media. • Server Address: This field allows the user to designate a DDNS address for the FTP server. •...

  • Page 118: Cloud Storage

    Save button. Cloud Storage This menu redirects the user to the Amcrest Cloud web site. At this website (amcrestcloud.com) users can register for new accounts as well as view or modify existing accounts. For more information on Amcrest Cloud visit: amcrestcloud.com...

  • Page 119: General

    General This menu controls where general settings are configured. There are 2 tabs in this menu: General and Date & Time. General This tab is where the user can configure some basic camera settings. Below is a screenshot of the General tab: Below is an explanation of the fields on the General settings tab: •...
  • Page 120 Update Period: This field allows the user to enter in the update period time. This number designates how frequently the camera pings the NTP server to ensure it has the correct time. The range is from 0-30 minutes. To reset to default settings, click the Reset Defaults button. To refresh the page, click the Refresh button. To save the settings, click the Save button.
  • Page 121 Below is an explanation of the settings in the RTSP Authentication field: • RTSP Authentication: Allows the user to set basic and digest RTSP authentications. To save an authentication to the camera click on the Save button. • SSH: This checkbox allows the user to enable secure shell authentication protocols from the camera. Below is a screenshot of this menu: Default Settings This screen allows the user to reset the camera and all its settings to the factory settings.

  • Page 122: Auto Maintain

    To import settings, click the Import button. To export settings, click the Export button. Auto Maintain This screen allows the user to set auto maintenance settings for the camera. Below is a screenshot of the Auto Maintain screen: Below is an explanation of the fields on the Auto Maintain screen: •...

  • Page 123: Information

    To upgrade the firmware for your camera, follow the steps provided below: • Go to amcrest.com/firmware-subscribe • Search for the model number of your camera and download the latest firmware file. • Return to the web user interface for your camera and press the Browse button to locate and import the firmware file you just downloaded.
  • Page 124 To view logs for a specific time period, modify the start time and end time fields, choose the type of event (system, setting, data, event, record, manage users, clear log), and click search. To backup the log, click the Backup button. To clear the log, click the Clear button. Remote Log This tab allows the user to enable and access remote logs within the camera.
  • Page 125 Life Statistics This menu allows users to see full life details of the camera. Below is a screenshot of the items found in this menu:...

  • Page 126: Alarm

    Alarm This screen is where the alarm log is kept. Below is a screenshot of the alarm screen: The table on the right shows the alarm log and all the alarm instances that have occurred. The checkboxes allow the user to narrow down which alarms they want to see in the alarm log. Clicking the checkbox next to Prompt will cause the system to pop up a dialog box anytime an alarm is triggered.

  • Page 127: Faqs/Troubleshooting

    FAQs/Troubleshooting 1. The camera does not boot up properly. Below are a few possible reasons why this may be occurring: • The power input is not correct voltage. • The power cable connection is not secured correctly. • The firmware was upgraded incorrectly. 2.

  • Page 128: Glossary Of Terms

    8. Network connection is not stable. Below are a few possible reasons why this may be occurring: • The network is not stable. • There may be an IP address conflict. • There may be a MAC address conflict. • The PC or camera network card may be defective.

  • Page 129: Fcc Statement

    • S/N – S/N stands for serial number. The S/N is unique to each camera and can be used to connect to different Amcrest apps and services to provide different methods of access to the camera. • Sensitivity – Sensitivity is the amount of change required to increase the motion detected by a percentage. The lower the sensitivity, the more movement is required to trigger an alarm.

  • Page 130: Ic Warning Statement

    (b) For a Class B digital device or peripheral, the instructions furnished the user shall include the following or similar statement, placed in a prominent location in the text of the manual: NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 131: Appendix A: Toxic Or Hazardous Materials Or Elements

    Appendix A: Toxic or Hazardous Materials or Elements Toxic or Hazardous Materials or Elements Component Name Cr VI PBDE Sheet ○ ○ ○ ○ ○ ○ Metal(Case) Plastic Parts ○ ○ ○ ○ ○ ○ （Panel） Circuit Board ○ ○ ○...
  • Page 132 All the designs and software here are subject to change without prior written notice. • All trademarks and registered trademarks mentioned are the properties of their respective owners. To contact Amcrest support, please do one of the following: • Visit http://amcrest.com/contacts...
