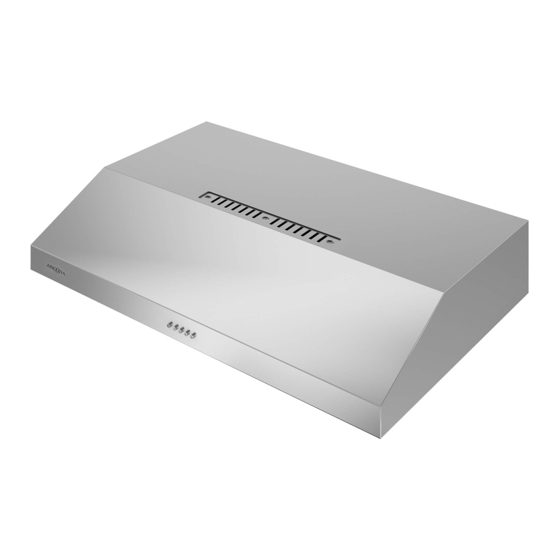

- Page 1 Range Hood Slim S3D and S3DW 30 inch User Manual & Installation Instructions IMPORTANT SAFETY INSTRUCTIONS Carefully read the important information regarding installation, safety and maintenance. Keep these instructions for future reference. MAAN1292R-03 2019-03-04...
-
Page 2: Before You Begin
Before You Begin INSTALLERS - Start Here Safety Instructions are on pages 4 and 5 and Installation Instructions are on pages 8 to 14. Please perform these steps: 1. Read the safety instructions. 2. Read all instructions in the Installation section of this manual BEFORE installing the range hood. -
Page 3: Table Of Contents
Table of Contents Before You Begin ..........................2 Table of Contents ..........................3 Important Safety Information ......................4 Included Parts ........................... 6 Range Hood Dimensions ........................7 Specifications ............................ 7 Installation ............................8 Step 1 - Read the Safety Instructions .................... 8 Step 2 - Unpack Range Hood and Prepare Tools ................ -
Page 4: Important Safety Information
Important Safety Information READ ALL INSTRUCTIONS BEFORE USE Read and follow all instructions before using the range hood to prevent the risk of fire, electric shock, personal injury, or damage when using the range hood or appliances with the range hood. This guide does not cover all possible conditions that may occur. - Page 5 Important Safety Information WARNING: TO REDUCE RISK OF A RANGE To reduce the risk of injury to persons in the TOP GREASE FIRE: event of a gas leaks: a) Never leave surface units unattended at high • Extinguish any open flame. settings. Boilovers cause smoking and greasy • DO NOT turn on the lights or any type of appliance.
-
Page 6: Included Parts
Included Parts Range Hood 2 Filters Vent/Damper Rubber Bushing 10 + 1 Damper Screws Cable tie Hardware Note: For safety reasons, range hood mounting screws and anchors will not be included due to the variation of cabinetry constructions and wall material. Please consult your installation specialist regarding the optimal type of mounting screws and wall anchors to suit your home’s construction. -
Page 7: Range Hood Dimensions
Range Hood Dimensions Specifications Body Design Stainless Steel / White Power Rating 120 V / 60 Hz (cETLus Certified) Total Input Power 106 W (100 W + 2 × 2.55 W) Motor Input Power 100 W Amperage 1.47 A Speed Control Levels 3 Speeds Interference Protection Radio Frequency Interference Protected Motors Single Motor... -
Page 8: Installation
Installation STEP 1 Read the Safety Instructions • It is very important to read the safety instructions on pages 4 and 5. IMPORTANT: It is the installer’s responsibility to comply with installation clearances. STEP 2 Unpack Range Hood and Prepare Tools • Carefully unpack the range hood and parts. -
Page 9: Step 5 - Venting Installation Guidelines
Installation STEP 5 Venting Installation Guidelines Height and Clearance (interior and exterior ventilation) 24 in. (610 mm) Min / 30 in. (762 mm) Max • The following steps are for exterior ventilation. For the most efficient and quiet operation: MPORTANT: • It is recommended that the range hood be vented • Vent system must terminate to the outside (roof or side wall). - Page 10 Installation electric cook tops and minimum of 30-inch (76.2 cm) IMPORTANT: for gas stove tops and no higher than 30-inch (76.2 cm) • A minimum of 6 in. (15.2 cm) round or 3-1/4 x 10 in. (25.4 cm for electric cook tops. x 8.3 cm) rectangular duct (purchased separately) must be • It is important to install the hood at the proper mounting used to maintain maximum airflow efficiency.
-
Page 11: Step 6 - Create Exterior Ventilation (New Installation Only)
Installation • If performing new exterior installation, please follow Step 6 • If performing replacement installation or interior recirculation, please skip Step 6 and continue to Step 7 STEP 6 Create Exterior Ventilation (New Installation Only) • Choose one of the exterior venting methods shown on Page 10. • Create the exterior ventilation hole. -
Page 12: Step 8 - Attaching Vent/Damper
Installation STEP 8 Attaching Vent/Damper • When installing with internal recirculation function, unscrew the three screws from top plate of range hood. (See Fig #3) • Remove the steel panel from top of the range hood and replace with venting plate. (See Fig #4) Fig #3 Fig #4 • If choosing exterior venting option, depending on the... -
Page 13: Step 11 - Venting (Exterior)
Installation • Secure all the leads inside the wiring compartment. • Secure the wiring compartment with a screw. • WARNING: ALL CONNECTORS MUST BE ENCLOSED IN THE WIRING COMPARTMENT. (See Fig #9) SAFETY WARNING: Risk of electrical shock. This range hood must be properly grounded. -
Page 14: Step 12 - Install Filters
Installation STEP 12 Install Filters To install filters follow these four steps (See Figure #10): • Angle the filter into slots at the back of the hood. • Push the button on handle of the filter. • Release the handle once the filter fits into a resting position. • Repeat to install all filters. -
Page 15: Operation
Operation Power Medium High Light Speed Speed Speed Power Settings Lights Press the button once and the motor starts to Press the light button to turn LED lights on and operate at Low speed. off. Press the button and the motor will reach Medium speed. -
Page 16: Troubleshooting
Troubleshooting Problem Possible Cause If the range hood or LED light Check if the range hood has been plugged in, make sure that all power does not operate after installation: has been turned back ON, fused not blown and all electrical wiring are properly connected. -
Page 17: Range Hood Assembly
Range Hood Assembly Number Part Round LED lamp Lamp board Filter Satety screen Cage plate Propeller Motor Capacitor Box cover Housing Lamp guide line Propeller cage Driver guide line Strengthen strip LED lamp driver Housing cover Wires Outlet Switch Switch guide line Wiring Box —... -
Page 18: Assembly
Assembly Circuit Diagram Blower assembly Number Part Propeller Cage Motor Propeller Cage Plate Safety screen Electrical Assembly Number Part Capacitor Electrical box cover — 18 —... -
Page 19: Use And Care Information
Use and Care Information Operations • Read and understand all instructions and warnings in this manual before operating the appliance. Save these instructions for future reference. • Always leave safety grills and filters in place. Without these components, operating fans could catch on to hair, fingers and loose clothing. - Page 20 Ancona is in association with Mr Appliance for all after sales service calls. Please contact their service provider or visit their website: Phone: 1-888-998-2011 Website: www.mrappliance.com MAAN1292R-03 © 2019 Copyright of Ancona Home. All rights reserved. This material may not be reproduced, displayed, modified or distributed. — 20 —...
