GRI DA-2 Quick Start Manual

D
OOR
A
NNUNCIATOR
Sounds Instantly When Door Opens
Choice Of 2, 4 or 6 Second Sounding Time
Choice Of Three Volume Settings
Remote Sounders Available
Monitors One Or More Openings
Surface Mount Or Recessed
SPDT Relay Output
Standard Color Is White
Battery Power and/or External Power

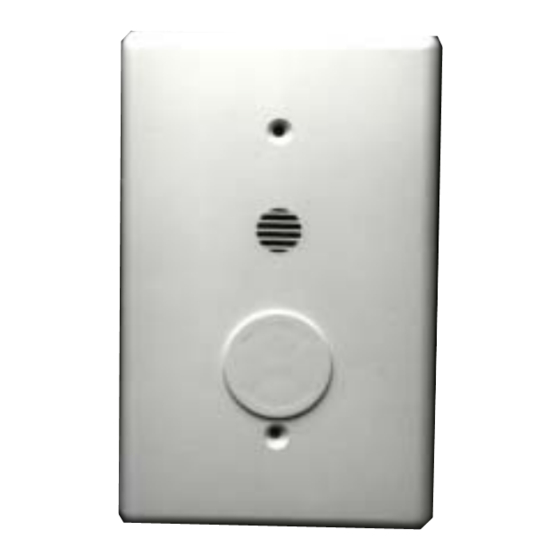

THE GRI Door Alert Annuniciator is designed to signal customer entry into a business establishment.
A closed loop magnetic reed switch activates the Door Alert. It can be set by the installer for a two,
four or six second sounding time. Offered in a recessed version (easily mounted in a single gang
box) or as a surface mount version. Both units can be powered by an external 12 volt DC power
source or 9 volt battery.
NOTE: Unit will function at minimum 7VDC at a very limited sounder volume. This power level is
considered total battery failure.
CAUTION: To prevent a memory failure or circuit damage, external power source must not exceed
15 VDC.
PART NUMBERS
DA-1
DA-2
184-2
184-7
A
LERT
DESCRIPTION
Recessed Door Alert Annunciator - Closed Loop
Surface Mount Door Alert Annunciator - Closed Loop
Recessed Remote Sounder
Surface Mount Remote Sounder
D W G • 5 1 6 - 9 3 3 - 4 9 0 0 • d w g d i s t r i b u t i o n . c o m
CLOSED LOOP
MADE IN U.S.A.
DA-1
Recessed
