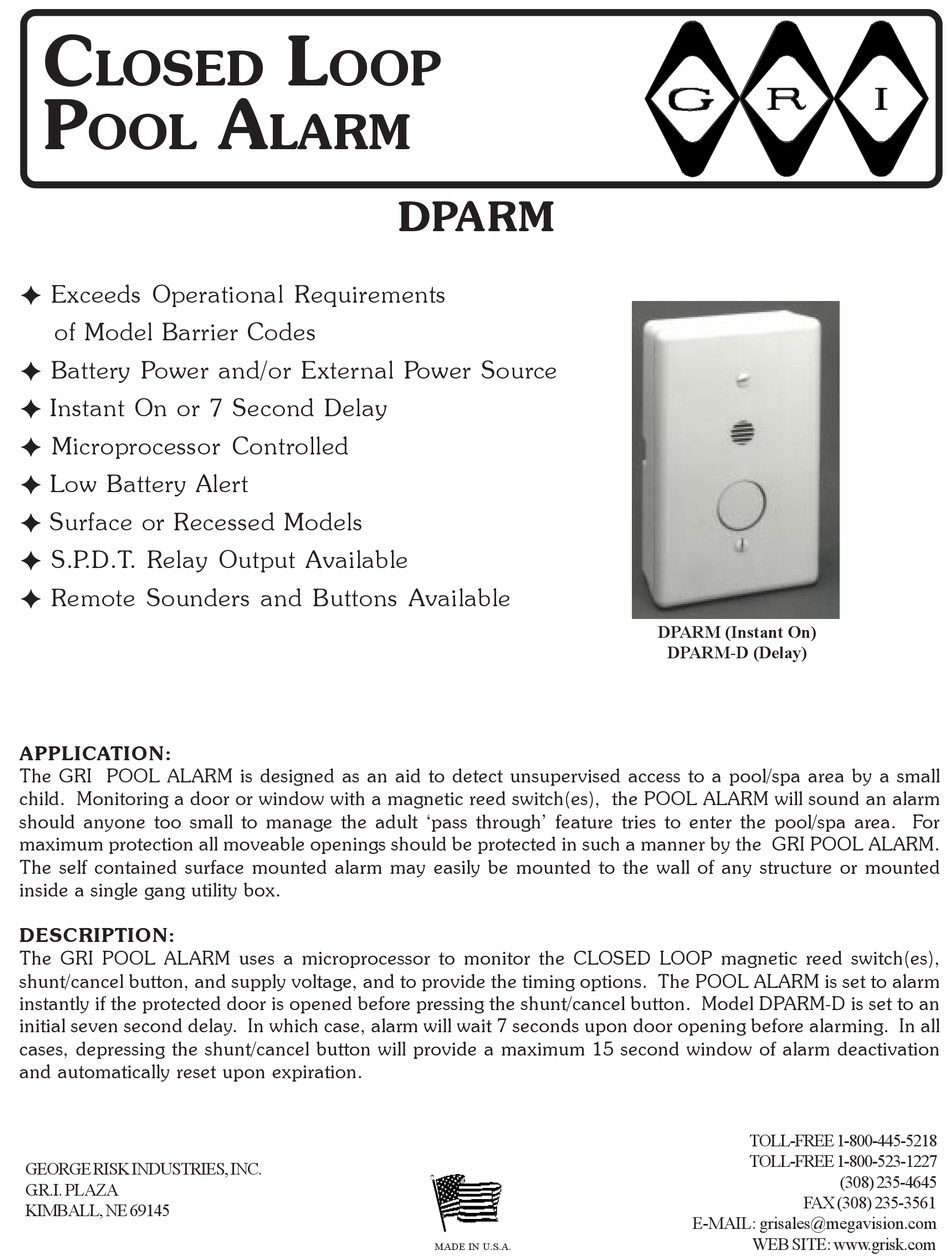

GRI DPARM Quick Start Manual

C
LOSED
P
OOL
Exceeds Operational Requirements
.
of Model Barrier Codes
Battery Power and/or External Power Source
.
Instant On or 7 Second Delay
.
Microprocessor Controlled
.
Low Battery Alert
.
Surface or Recessed Models
.
S.P.D.T. Relay Output Available
.
Remote Sounders and Buttons Available
.
APPLICATION:
The GRI POOL ALARM is designed as an aid to detect unsupervised access to a pool/spa area by a small
child. Monitoring a door or window with a magnetic reed switch(es), the POOL ALARM will sound an alarm
should anyone too small to manage the adult 'pass through' feature tries to enter the pool/spa area. For
maximum protection all moveable openings should be protected in such a manner by the GRI POOL ALARM.
The self contained surface mounted alarm may easily be mounted to the wall of any structure or mounted
inside a single gang utility box.
DESCRIPTION:
The GRI POOL ALARM uses a microprocessor to monitor the CLOSED LOOP magnetic reed switch(es),
shunt/cancel button, and supply voltage, and to provide the timing options. The POOL ALARM is set to alarm
instantly if the protected door is opened before pressing the shunt/cancel button. Model DPARM-D is set to an
initial seven second delay. In which case, alarm will wait 7 seconds upon door opening before alarming. In all
cases, depressing the shunt/cancel button will provide a maximum 15 second window of alarm deactivation
and automatically reset upon expiration.
GEORGE RISK INDUSTRIES, INC.
G.R.I. PLAZA
KIMBALL, NE 69145
L
OOP
A
LARM
DPARM
MADE IN U.S.A.
DPARM (Instant On)
DPARM-D (Delay)
TOLL-FREE 1-800-445-5218
TOLL-FREE 1-800-523-1227
FAX (308) 235-3561
E-MAIL: grisales@megavision.com
WEB SITE: www.grisk.com
(308) 235-4645
