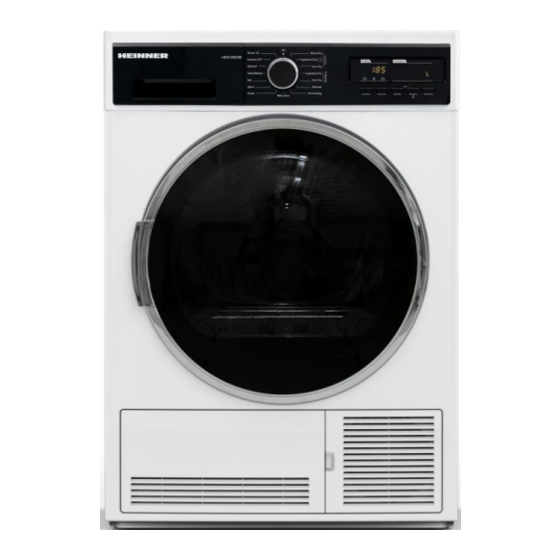

CONDENSER DRYER
Model: HCD-V804SB
• Condenser dryer
• Loading capacity: 8 kg
• Energy class: B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HCD-V804SB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Heinner HCD-V804SB

Summary of Contents for Heinner HCD-V804SB

  • Page 1 CONDENSER DRYER Model: HCD-V804SB • Condenser dryer • Loading capacity: 8 kg • Energy class: B...
  • Page 2 8Kg, 220-240V~50Hz Thank you for purchasing this product! INTRODUCTION Before using the appliance, please read carefully this instruction manual and keep it for future reference. This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance.

  • Page 3: Safety Precautions

    8Kg, 220-240V~50Hz III. SAFETY PRECAUTIONS • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Page 4 8Kg, 220-240V~50Hz 1.1. Electrical Safety • The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility. • Do not touch the power plug with wet hands. Always pull the plug to unplug the product, otherwise, there will be risk of an electric shock.
  • Page 5 8Kg, 220-240V~50Hz 1.3. Product Safety Due to risk of fire, the following laundry items and products should never be dried in the dryer: • Do not dry unwashed items in the tumble dryer. • Items that have been soiled with substances such as cooking oil,...
  • Page 6 8Kg, 220-240V~50Hz ATTENTION: Never use the dryer without a lint filter or with a damaged lint filter. Lint filters must be cleaned after each use as indicated in 6.1. Cleaning the Lint Filter. • Lint filters must be dried after wet cleaning. Wet filters might cause malfunction during the drying process.

  • Page 7: Installation

    8Kg, 220-240V~50Hz INSTALLATION 1. Before contacting an Authorised Service Provider for the installation of the dryer, check the information in the user manual to make sure that the electrical installation and water outlet is suitable. If they are not, call a qualified electrician and a plumber to have the necessary adjustments made.
  • Page 8 8Kg, 220-240V~50Hz Connection to water outlet (with optional drain hose, not included in the package) In products with a condenser unit, water accumulates in the water tank during the drying process. You must empty the accumulated water after each drying process. Instead of periodically emptying the water tank, you can also use the water drain hose* to directly drain the water outside.
  • Page 9 8Kg, 220-240V~50Hz Electrical connection ATTENTION: There is risk of fire and electric shock. 1. Your dryer is set to 220-240 V and 50 Hz. 2. The mains cable of the dryer is equipped with a special plug. This plug must be connected to an earthed socket protected by a fuse of 16 Amperes as indicated on the type plate.

  • Page 10: Product Description

    8Kg, 220-240V~50Hz PRODUCT DESCRIPTION 1. Upper tray 7. Plinth cover 2. Control panel 8. Type cover 3. Loading door 9. Lint filter 4. Plinth opening slot 10. Drawer cover 5. Plinth 11. Ventilation grills 6. Adjustable feet...

  • Page 11: Using The Appliance

    8Kg, 220-240V~50Hz USING THE APPLIANCE 1. Sorting the laundry to be dried Follow the instructions on the labels of the laundry to be dried. Only dry items that have a statement/symbol that indicates "they can be dried in a dryer".
  • Page 12 8Kg, 220-240V~50Hz IMPORTANT: Delicate fabrics, embroided fabrics, woolen/silk fabrics, clothes made of delicate and expensive fabrics, airtight clothes and tulle curtains are not suitable for drying in the dryer. 2. Preparing the laundry to be dried Risk of explosion and fire! Remove all objects from pockets such as lighters and matches.

  • Page 13: Control Panel

    8Kg, 220-240V~50Hz VII. CONTROL PANEL 1. Programme selection knob 2. Electronic indicator and additional functions 1. Programme selection knob Use the programme selection knob to select the desired drying programme: Electronic indicator and additional functions...
  • Page 14 8Kg, 220-240V~50Hz Display symbols: Water tank indicator Lint filter cleaning warning indicator Condenser cleaning warning indicator Programme selection and consumption table Programme Load Washing machine Approximate amount Duration (kg) spin speed of remaining humidity (min) Cotton extra dry 1000...
  • Page 15 8Kg, 220-240V~50Hz 3. Auxiliary functions Options: Drying Level - The humidity level obtained after drying can be increased by 3 levels. This way, level of required dryness can be selected. The levels that can be selected other than the standard setting: 1, 2, 3.
  • Page 16 8Kg, 220-240V~50Hz VIII. USING PROGRAMMES The Start/Pause LED will flash during programme selection.Press the Start/Pause button to start the programme. The Start/Pause LED that indicates that the programme has started and the drying LED will come on. Programme Description...
  • Page 17 8Kg, 220-240V~50Hz PROGRAMME PROGRESS During the Programme If you open the door when the programme is running, the product will switch to standby mode. Once the door has been closed, press the Start/Pause key to resume the programme. Do not open the loading door when the programme is running. If you have to open the door, do not keep it open for a long time.
  • Page 18 8Kg, 220-240V~50Hz Programmes Options Anti- Delayed End of cycle/ Child lock Time Drying crease start buzzer drying level cancel Cotton extra Cotton cupboard dry Cotton iron Synthetics cupboard dry Synthetics iron Delicate Time drying Baby care Duvet Sport Wool refresh Refresh Express 29’...

  • Page 19: Cleaning And Maintenance

    8Kg, 220-240V~50Hz CLEANING AND MAINTENANCE IMPORTANT: Do not use industrial chemicals to clean your dryer. Do not use a dryer that has been cleaned with industrial chemicals. 1. Cleaning the lint filter IMPORTANT: Do not forget to clean the lint filter after each use.
  • Page 20 8Kg, 220-240V~50Hz 2. Emptying the water tank 1. Pull the drawer cover and carefully take out the tank. 2. Empty the water in the tank. 3. If there is lint accumulated on the discharge cap in the tank, clean it with water.
  • Page 21 8Kg, 220-240V~50Hz 4. Cleaning the humidity sensor Inside the machine, there are humidity sensors that detect whether the laundry is dry or not. To clean the sensors: 1. Open the loading door of the machine. 2. If the machine is still hot due to the drying process, wait for it to cool down.

  • Page 22: Troubleshooting

    8Kg, 220-240V~50Hz TROUBLESHOOTING Your dryer is fitted with systems that continuously perform checks during the drying process to take the necessary measures and warn you in case of any malfunction. WARNING: If the problem persists even if you have applied the steps in this section, please contact the your dealer or an Authorised Service Provider.
  • Page 23 8Kg, 220-240V~50Hz PROBLEM REASON SOLUTION Make sure that the plug is fitted in the The dryer might not be plugged in. socket. The dryer cannot be opened or Make sure that the loading door is properly The loading door might be open.

  • Page 24: Energy Efficiency

    8Kg, 220-240V~50Hz ENERGY EFFICIENCY You should operate the dryer to full capacity, but make sure that it is not overloaded. • When the laundry is being washed, the spin speed should be at the highest level possible. This will shorten the drying time and reduce energy consumption.

  • Page 25: Product Fiche

    8Kg, 220-240V~50Hz TECHNICAL SPECIFICATIONS XIII. PRODUCT FICHE Brand HEINNER Model name HCD-V804SB Height Min: 845 mm / Max: 855 mm* Width 596 mm Depth 609mm Capacity (max.) 8 kg Net weight (with glass door) 38,8 kg Voltage 220-240 V...
  • Page 26 8Kg, 220-240V~50Hz PRODUCT FICHE CONDENSER DRYER HCD-V804SB Brand Heinner Model HCD-V804SB Rated capacity (kg) Type of Tumble dryer Condenser Energy efficiency class Annual energy consumption (kWh) Model type (automatic / non-automatic) Automatic Energy Consumption of the standard cotton programme at full load...
  • Page 27 8Kg, 220-240V~50Hz Environment friendly disposal You can help protect the environment! Please remember to respect the local regulations: hand in the non-working electrical equipment’s to an appropriate waste disposal center. This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification...
