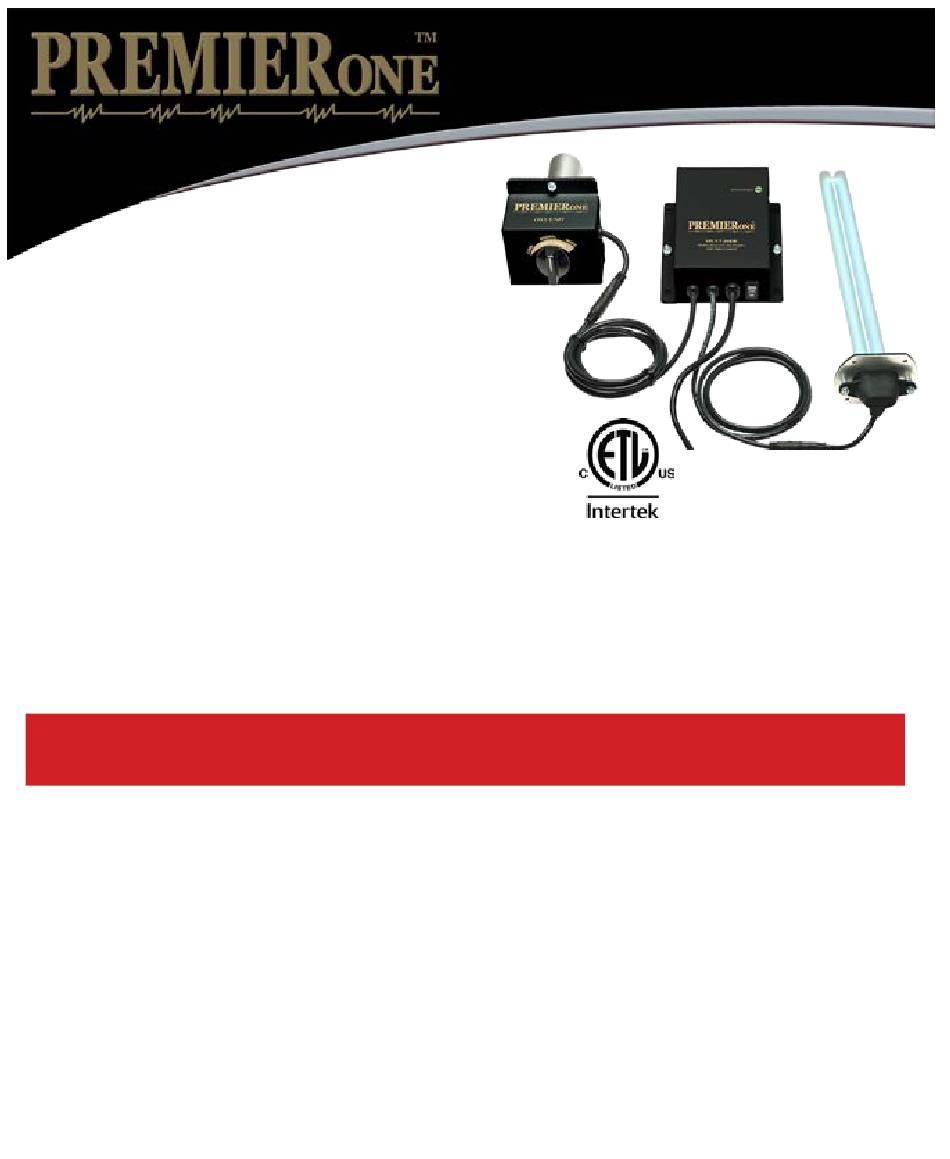

MUV7-50DR
MultiVoltage Oxidizing UVC System
Installation & Maintenance Instructions
UNPACKING THE UNIT
The optional oxidizing unit is shipped with the 5" lamp installed.
The germicidal lamp is placed in a box with protective packaging.
When handling lamps take care to not touch the glass portion of the
lamp with bare hands. Oils from the hands can cause "hot spots"
which reduce lamp life. Handle by the end caps or use a soft cloth.
If you accidentally touch a lamp, clean it using the included alcohol
cleaning pad or a soft cloth dampened with rubbing alcohol. The
lamp is fragile and proper care must be taken when removing from
packaging.
Depending on your configuration,
the following parts may be included:
• Power Supply
• Optional Oxidizing Unit
• Germicidal Twin H Lamp (packed in lamp box)
• Twelve (12) Sheet Metal Screws
IMPORTANT: SAFETY INSTRUCTIONS
When installing and using this electrical equipment, basic safety precautions
1. READ AND FOLLOW ALL INSTRUCTIONS.
2. Minimum living space for this product is 1,200 square feet.
3. Always be sure the unit is unplugged during installation or service procedures.
4.
The ultraviolet light produced by the UV lamp is harmful to your eyes. Do not look directly at
the lamp. Should it become necessary to view the lamp, use UV-protected sunglasses.
Lors de l'installation et de l'utilisation de cet équipement, des précautions devront être suivies.
1- Lire et suivre les étapes attentivement.
2- Espace minimum d'une habitation pour ce produit est de 1,200 pi. carrés
3- Assurez vous de toujours débrancher avant l installation ou le service.
4-
Ne pas regarder la lampe directement avec les yeux. Si nécessaire de le faire,
veuillez porter les lunettes de soleil contre les rayons U.V.
Important: Instructions de securité
should always be followed including the following:
3099107
• Four (4) caution labels
• Strain relief connector
• Alcohol pad for cleaning lamps
• Installation & maintenance instructions
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PremierOne MUV7-50DR
Summary of Contents for PremierOne MUV7-50DR
- Page 1 MUV7-50DR MultiVoltage Oxidizing UVC System Installation & Maintenance Instructions UNPACKING THE UNIT The optional oxidizing unit is shipped with the 5” lamp installed. The germicidal lamp is placed in a box with protective packaging. When handling lamps take care to not touch the glass portion of the lamp with bare hands.
- Page 2 INSTALLATION: Living space, 1,200 square feet minimum. If there is a device that creates ozone in the space such as an ionizing air cleaner, it is recommended the oxidizing unit not be used in this application. Use one of our germicidal only models instead. Homes with multiple air handlers: install this unit on the main level air handler and a germicidal only model on the other air handler(s).
- Page 3 INSTALLING THE OXIDIZING UNIT (return side plenum only) 1. Cut a 1.75” - 2” hole for the unit. 2. Attach the unit to the air duct using the four self-tapping sheet metal screws provided. (Airflow direction is marked on the unit.) 3.
- Page 4 WIRING/FUSE With the oxidizing unit installed, the unit must cycle with the furnace blower. Wire unit to an EAC terminal or current-sensing relay to cycle the unit with the system fan. If the oxidizing unit is not installed, you may allow unit to run continuously. The multi-voltage ballast is self-adjusting and operates with voltages from 120 - 240 VAC.

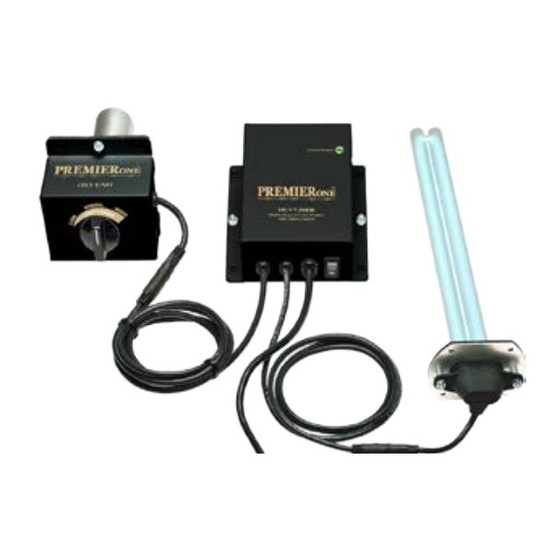

- Page 5 MUV7-50DR shown mounted on a heat pump with the oxidizing unit installed on the air return. Lamp Airflow Optional Odor Control unit 1. Using the lamp mount as a template, draw the hole pattern on the air duct in a suitable location.
