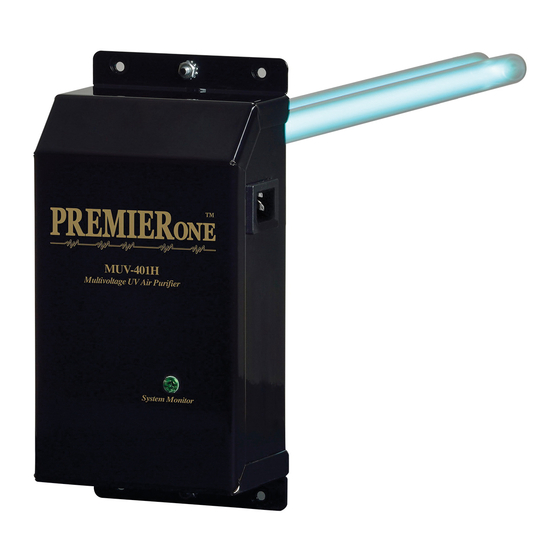

MUV-401H MultiVoltage
Germicidal Air Purifier
Installation & Maintenance Instructions
UNPACKING THE UNIT
Each MUV-401H germicidal air purifier is shipped with the germicidal
lamp placed in a lamp box. Carefully remove lamp from the lamp box
taking care to not touch the glass portion with bare hands. Oils from the
hands can cause "hot spots" which reduce lamp life. Handle by the plas-
tic end cap or use a soft cloth. Clean the lamp, using the included alcohol
cleaning pad or a soft cloth dampened with rubbing alcohol. The lamp
is fragile and proper care must be taken when removing from packaging.
The following parts are included:
IMPORTANT: SAFETY INSTRUCTIONS
When installing and using this electrical equipment, basic safety precautions
1. READ AND FOLLOW ALL INSTRUCTIONS.
2. SAVE THESE INSTRUCTIONS.
3. Always be sure the unit is unplugged during installation or service procedures.
4.
The ultraviolet light produced by the UV lamp is harmful to your eyes. Do not look directly at
the lamp. Should it become necessary to view the lamp, use UV-protected sunglasses.
Lors de l'installation et de l'utilisation de cet équipement, des précautions devront être suivies.
1- Lire et suivre les étapes attentivement.
2- Conserver ces instructions.
3- Assurez vous de toujours débrancher avant l installation ou le service.
4-
Ne pas regarder la lampe directement avec les yeux. Si nécessaire de le faire,
veuillez porter les lunettes de soleil contre les rayons U.V.
• MUV-401H Multivoltage Germicidal Air Purifier
• Germicidal Twin H Lamp (packed in lamp box)
• Four Self Tapping Sheet Metal Screws
• Installation & Maintenance Instructions
• 120 VAC Power Cord
• Alcohol pad to clean lamp
Important: Instructions de securité
should always be followed including the following:
3099107
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PremierOne MUV-401H
Summary of Contents for PremierOne MUV-401H
- Page 1 Installation & Maintenance Instructions UNPACKING THE UNIT Each MUV-401H germicidal air purifier is shipped with the germicidal lamp placed in a lamp box. Carefully remove lamp from the lamp box taking care to not touch the glass portion with bare hands. Oils from the hands can cause “hot spots”...
- Page 2 INSTALLATION: Do not locate the unit within 20” of plastic materials that will be directly exposed to the UV light, such as wiring, return side humidifier or certain types of air filters. Check with the filter manufacturer to see if their material is UV resistant. Over time, UV light may degrade some plastics and petroleum based materials.
- Page 3 MUV-401H AIR STREAM can be mounted either on the return or supply side. 15” or 18” 12” OR 16” Germicidal UVC Lamp Box size is 8.75 high x 4.25 wide. 2 3/4” Germicidal lamp holder Photo A...
- Page 4 All returns are routed through your wholesaler and must be approved and accompanied by an RGA number. Please call PremierOne Products, Inc. at 800-982-1840 and we will guide you through the return procedure. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
- Page 5 Product; or (b) repair the Product found to be OR OTHER SPECIAL, INCIDENTAL, EXEMPLARY OR CON- defective. In the event that PremierOne elects to repair or replace SEQUENTIAL DAMAGES ARISING OUT OF THE FAILURE OF the Product, such repaired or replaced Product shall be warranted,...
- Page 6 Product. apply to the customer. This Limited Warranty gives the customer PremierOne warrants that, subject to the exceptions set forth in specific legal rights, and the customer may also have other rights Section 4, above, genuine PremierOne lamps shall function as in- which may vary from jurisdiction to jurisdiction.
