MUV7-100TR
MultiVoltage UVC System
Installation & Maintenance
Instructions
UNPACKING THE UNIT
Each unit is shipped with the germicidal lamps placed in a box with protective packaging. When handling lamps take
care to not touch the glass portion of the lamp with bare hands. Oils from the hands can cause "hot spots" which
reduce lamp life. Handle by the end caps or use a soft cloth. If you accidentally touch a lamp, use the alcohol pad
included or clean it using a soft cloth dampened with rubbing alcohol. The lamp is fragile and proper care must be
taken when removing from packaging.

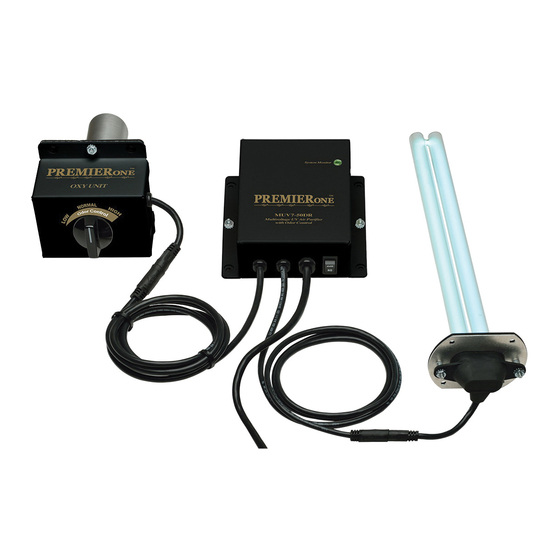

The following parts are included:
• Power Supply
• Two (2) Germicidal Twin H Lamp (packed in lamp box)
• One (1) Oxidation unit with lamp installed
• Sixteen (16) Sheet Metal Screws
IMPORTANT: SAFETY INSTRUCTIONS
When installing and using this electrical equipment, basic safety precautions
1. READ AND FOLLOW ALL INSTRUCTIONS.
2. Always be sure the unit is unplugged during installation or service procedures.
3.
The ultraviolet light produced by the UV lamp is harmful to your eyes. Do not look directly at
the lamp. Should it become necessary to view the lamp, use UV-protected sunglasses.
Lors de l'installation et de l'utilisation de cet équipement, des précautions devront être suivies.
1- Lire et suivre les étapes attentivement.
2- Assurez vous de toujours débrancher avant l installation ou le service.
3-
Ne pas regarder la lampe directement avec les yeux. Si nécessaire de le faire,
veuillez porter les lunettes de soleil contre les rayons U.V.
Important: Instructions de securité
should always be followed including the following:
• Four (4) Caution Labels
• Strain Relief Connector
• Alcohol Pad for Cleaning Lamps
• Installation & Maintenance Instructions
Advertisement
Table of Contents
Related Manuals for PremierOne MUV7-100TR
Summary of Contents for PremierOne MUV7-100TR
- Page 1 MUV7-100TR MultiVoltage UVC System Installation & Maintenance Instructions UNPACKING THE UNIT Each unit is shipped with the germicidal lamps placed in a box with protective packaging. When handling lamps take care to not touch the glass portion of the lamp with bare hands. Oils from the hands can cause “hot spots” which reduce lamp life.
