Description
Volt101A
Range
Resolution
*See Table for Details
Accuracy
Memory
Wrap Around
Reading Rate
4 readings every second (4Hz) to 1 every 24 hours
LED Indicator
Channels
Required Interface Package
Baud Rate
Typical Battery Life
Operating Environment
Material
Dimensions
1.4 in x 2.5 in x 0.6 in (36 mm x 64 mm x 16 mm)
Weight
Approvals
*Volt101A Range, Resolution and Calibrated Accuracy
Range
Measurement Range (VDC)
Accuracy
Resolution (mV)
Overload Protection
Battery Warning
WARNING: FIRE, EXPLOSION, AND SEVERE BURN HAZARD. DO NOT SHORT CIRCUIT, CHARGE,
FORCE OVER DISCHARGE, DISASSEMBLE, CRUSH, PENETRATE OR INCINERATE. BATTERY MAY
LEAK OR EXPLODE IF HEATED ABOVE 80 °C (176 °F).
Specifications subject to change.
See MadgeTech's terms and conditions at www.madgetech.com
MadgeTech, Inc.
6 Warner Road
Phone 603.456.2011
www.madgetech.com
Volt101A-160mV
±160 mVDC
5 μV
±0.01 %FSR
1,000,000 readings
330,000 in enhanced start/stop mode
Yes
Red & Green
1
IFC200
115,200
10 years at a 15 minute reading rate
-40 °C to +80 °C (-40 °F to +176 °F),
0 to 95%RH non–condensing
ABS plastic
0.9 oz (24 g)
CE
2.5 V
15 V
30 V
-3 to +3 V
-8 to +24 V
-8 to +32 V
+0.05%FSR
0.1 mV
0.5 mV
1.0 mV
+50 V, indefinitely
Warner, NH 03278
l
Fax 603.456.2012
l
info@madgetech.com
l
DOC-1210035-00 REV 7 2014.11.26
Product Information Card

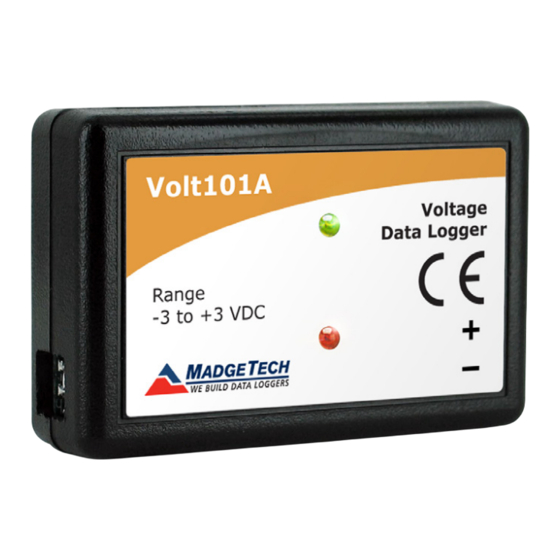

Volt101A-2.5V
2.5VDC Voltage Data Logger
Volt101A-15V
15VDC Voltage Data Logger
Volt101A-30V
30VDC Voltage Data Logger
Volt101A &
Volt101A-160
Volt101A-160mV
+160mVDC Differential Voltage
Data Logger
Red 485
Dark Blue Pantone 289
Light Blue 58% of Pantone 289
