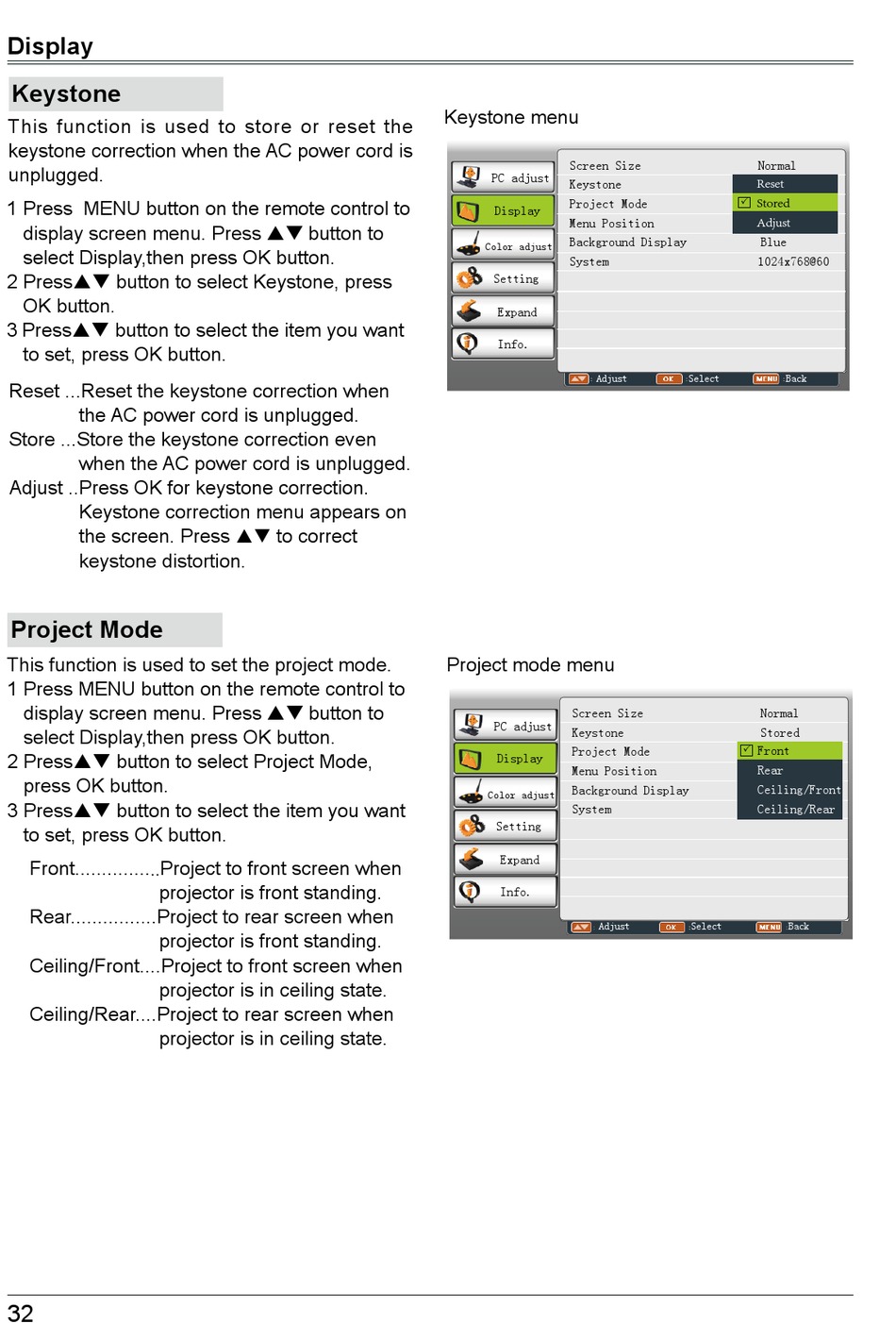

Display

Keystone

This function is used to store or reset the
keystone correction when the AC power cord is
unplugged.
1 Press MENU button on the remote control to
display screen menu. Press  button to
select Display,then press OK button.
2 Press button to select Keystone, press
OK button.
3 Press button to select the item you want
to set, press OK button.
Reset ...Reset the keystone correction when
the AC power cord is unplugged.
Store ...Store the keystone correction even
when the AC power cord is unplugged.
Adjust ..Press OK for keystone correction.
Keystone correction menu appears on
the screen. Press
keystone distortion.

Project Mode

This function is used to set the project mode.
1 Press MENU button on the remote control to
display screen menu. Press  button to
select Display,then press OK button.
2 Press button to select Project Mode,
press OK button.
3 Press button to select the item you want
to set, press OK button.
Front................Project to front screen when
projector is front standing.
Rear................Project to rear screen when
projector is front standing.
Ceiling/Front....Project to front screen when
projector is in ceiling state.
Ceiling/Rear....Project to rear screen when
projector is in ceiling state.
32
to correct

Keystone menu
Screen Size
PC adjust
Keystone
Project Mode
Display
Menu Position
Background Display
Color adjust
System
Setting
Expand
Info.
Adjust
Project mode menu
Screen Size
PC adjust
Keystone
Project Mode
Display
Menu Position
Background Display
Color adjust
System
Setting
Expand
Info.
Adjust
Normal
Reset
Stored
Stored
Front

Adjust
Upper left
Blue
1024x768@60
Select Back
Normal
Stored
Front
 Front
Rear Upper left
Ceiling/Front
Blue
Ceiling/Rear 1024x768@60
Select Back
