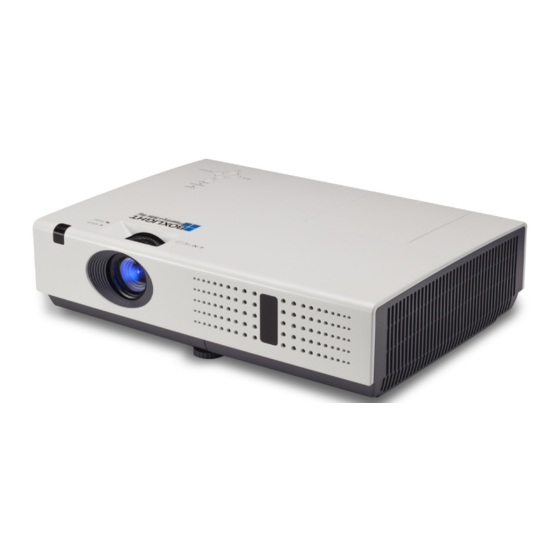

BOXLIGHT ProjectoWrite7 P7 WX32N User Manual
  1. Manuals
  2. Brands
  3. BOXLIGHT Manuals
  4. Projector
  5. ProjectoWrite7 P7 WX32N
  6. User manual

BOXLIGHT ProjectoWrite7 P7 WX32N User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
P7 WX32N
151 NE State Hwy 300, Ste A
Belfair, WA 98528
360.464.2119
www.boxlight.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProjectoWrite7 P7 WX32N and is the answer not in the manual?

Questions and answers

Related Manuals for BOXLIGHT ProjectoWrite7 P7 WX32N

Summary of Contents for BOXLIGHT ProjectoWrite7 P7 WX32N

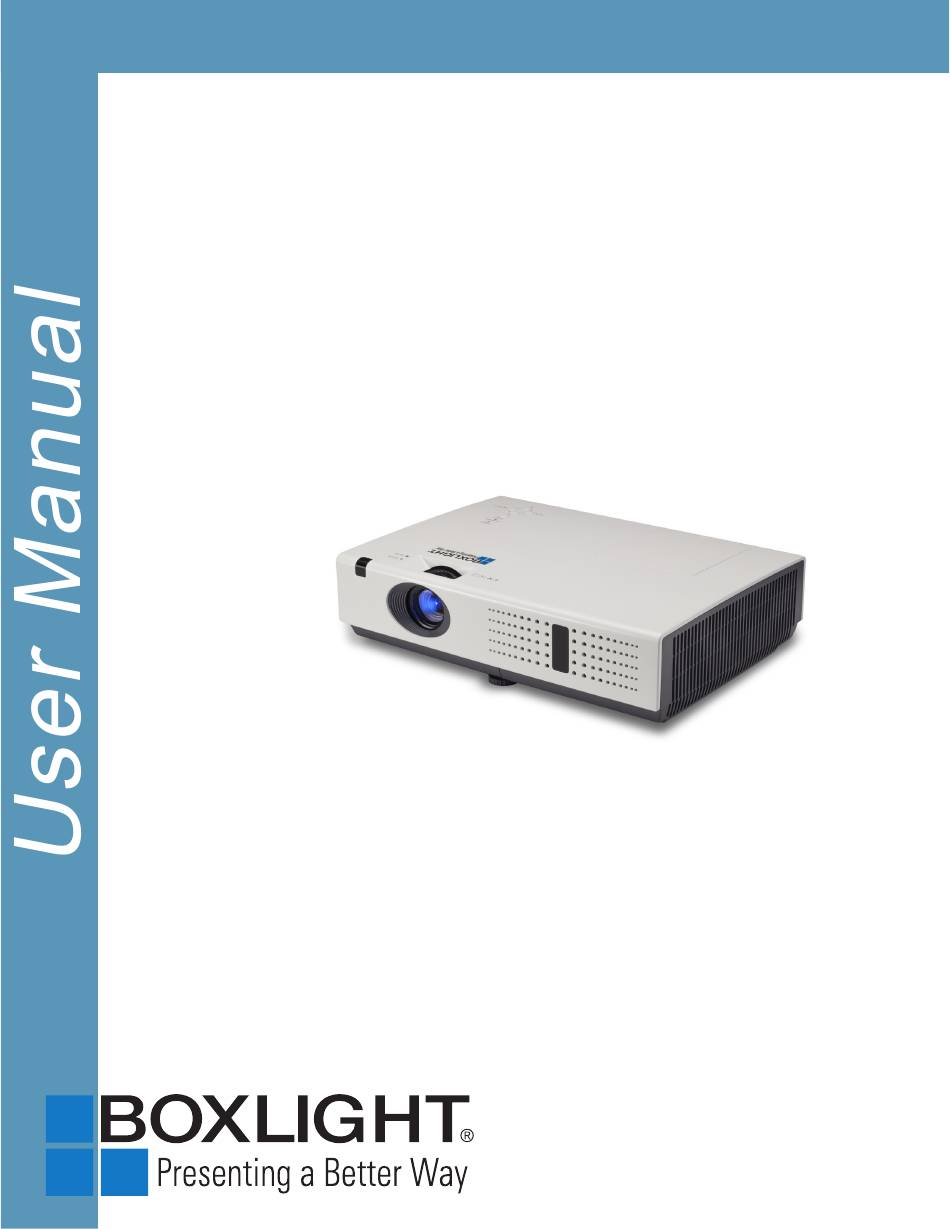

  • Page 1 P7 WX32N 151 NE State Hwy 300, Ste A Belfair, WA 98528 360.464.2119 www.boxlight.com...
  • Page 2 Owner's Manual Multimedia Projector...

  • Page 3: Features And Design

    Features and Design This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology. Compact Design Security Function This projector is designed compact in size The Security function helps you to ensure...

  • Page 4: Table Of Contents

    Contents Features and Design System Contents Color adjust Safety Instructions Image Mode Safety Guide Color adjust(Computer) Air circulation Color adjust Moving the projector (Vdieo,S-video,Component) Installing the projector properly Setting Compliance On start Accessories Standby mode Part names and functions High land Front Lamp control Back...

  • Page 5: Safety Instructions

    Safety Instructions Please read this manual completely before installing Safety precautions and operating the projector. The projector provides many convenient features Caution: • The projector must be grounded. and functions. Proper operation may enable you to • Do not expose the projector to fully utilize the features and keep it in good condition.

  • Page 6: Safety Guide

    Safety Guide All the safety and operating instructions should be Do not install the projector near the ventilation duct of read before the product is operated. air-conditioning equipment. Read all of the instructions given here and retain them This projector should be operated only from the type for later use.

  • Page 7: Air Circulation

    Safety Guide Air circulation Installing the projector properly Vents in the cabinet are provided for ventilation. Please set the projector on nearly-level. To ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered. Be sure to install the projector properly.

  • Page 8: Compliance

    Compliance FCC Caution Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 9: Accessories

    Accessories Remote control with batteries User's Manual(CD) AC Power cord (AAA or LR03) VGA cable Quick start guide...

  • Page 10: Part Names And Functions

    Part names and functions Front ① Top control and Indicators ① ② Zoom ring ② ③ ③ Lamp cover ④ Filter ⑤ Remote control receiver ⑥ Projector lens ⑦ Air intake vent ⑤ ④ ⑥ ⑦ Back ⑧ Focus ring ⑨...

  • Page 11: Terminals

    Part names and functions Terminals ④ ② ③ ⑤ ⑥ ⑦ ① ⑧ ⑨ ⑩ ① AUDIO OUT * ⑦ HDMI * - Connect external audio amplifier to this Connect a HDMI output to this terminal. jack. - Output audio signal from ②，⑦ or ⑧ . ⑧...

  • Page 12: Top Control And Indicators

    Part names and functions Top Control and Indicators ① ② ③ ④ ⑤ ⑥ ① POWER indicator ④ OK/INPUT button - Lights red when the projector is in stand- - Press INPUT button to select input source by mode. while no screen menu displayed. - Lights green during operations.

  • Page 13: Remote Control

    Part names and functions Remote control ① POWER Turn on or turn off the projector.(Page 21) ③ ② ① ② VGA Select VGA as input source.(Page 28) ③ INPUT Enter input source menu to select input source directly. (Page 28) ⑤...
  • Page 14 Part names and functions ⑫ DZOOM+ Select the digital zoom + mode.(Page 27) ⑬ TIMER Enable the timer function.(Page 27) ⑭ VOUME + Increase the volume level.(Page 25) ⑮ AUTO Enter auto setup mode.(Page 24) ⑯ VOUME - Decrease the volume level.(Page 25) ⑰...

  • Page 15: Install Remote Control Batteries

    Part names and functions Install remote control batteries ② Install new batteries ③ ① Open the battery Replace the into the compartment. compartment lid. compartment lid. Two AAA batteries For correct polarity (+ and –), be sure battery terminals are in contact with pins in the compartment.

  • Page 16: Installation

    Installation Positioning the projector  Note: ● The brightness in a room has a great influence on picture quality. It is recommended to limit the ambient lighting in order to get the best image. (Diagonal:Inch) 10.83m ● All measurements are approximate and may vary from the actual sizes. 9.02m 6.00m (Diagonal:Inch)

  • Page 17: Connecting To Computer(Digital And Analog Rgb)

    Installation Connecting to computer(Digital and analog RGB) Cables used for connection: ● VGA cable ● Serial control cable (Cables are not supplied with the projector) ● HDMI cable (Cables are not supplied with the projector) Serial output Monitor output Monitor input HDMI output Serial HDMI...

  • Page 18: Connecting To Video Equipment (Video, S-Video)

    Installation Connecting to video equipment (Video, S-Video) Cables used for connection:(Cables are not supplied with the projector) ● Video cable ● S-Video cable ● RCA cable ● Audio cable Component Audio S-video Audio Video Audio output output output output output output S-VIDEO Audio...

  • Page 19: Connecting To Audio Equipment

    Installation Connecting to audio equipment Cables used for connection: ● Audio cable (Cables are not supplied with the projector) External audio equipment Audio output Audio input Note: The left and right Audio Audio cable Audio cable channels are combined when there is only the L(mono) is (stereo) (stereo)

  • Page 20: Connecting The Ac Power Cord

    Installation Connecting the AC power cord This projector uses nominal input voltages of 100–240V AC and it automatically applies to different input voltages. It is designed to work with a single-phase power system having a grounded neutral conductor. To reduce the risk of electrical shock, do not plug into any other type of power system.

  • Page 21: Basic Operation

    Basic operation Turn on the projector 1.Complete peripheral connections (with a computer, VCR,etc.) before turning on the projector. 2. Connect the projector’s AC power cord into AC outlet.The POWER indicator turns red. 3. Press the POWER button on top control or on the remote control.

  • Page 22: Turn Off The Projector

    Basic operation Turn off the projector 1. Press the POWER button on top control or on the remote control, and “Power off?” appears on the screen. Power off ? 2. Then, press the POWER button again in 4 seconds. The POWER indicator starts to flash red, and the cooling fans keep running (You can select the level of fans’...

  • Page 23: How To Operate The Screen Menu

    Basic operation How to operate the screen menu Top control The projector can be adjusted or set via the OK/INPUT on-screen menu,Each main menu can be divided into several levels of submenus, and submenus are also divided into several levels of sub-submenus.

  • Page 24: Menu Bar

    Basic operation Menu bar Main menu Sub menu Auto PC adj. ① PC adjust Fine sync Total dots 1056 ② Display Horizontal ③ Vertical Color adjust Display area H ④ Setting Display area V Reset ⑤ Expand Mode free Store ⑥...

  • Page 25: Adjust Zoom And Foucus

    Basic operation Adjust zoom and foucus Zoom ring Focus ring Rotate the zoom ring to zoom in or zoom out (back) (front) the image. Rotate the focus ring to adjust the focus of the image. Auto setup function Remote control This function is available just by pressing the AUTO button on the remote control.

  • Page 26: Volume

    Basic operation Remote control Volume Direct operation VOLUME +/- VOLUME Press the VOLUME +/- button on the remote control to adjust the volume. MUTE MUTE Press the MUTE button on the remote control and select On to turn off the audio temporarily. To restore the audio to its previous level, press the MUTE button again and select Off or press the VOLUME+/–...

  • Page 27: Remote Control Operation

    Basic operation Remote control operation Using the remote control for some frequently used operations is advisable. Just pressing one of the buttons enables you to make the desired operation quickly without calling up the screen menu. Remote control INPUT Press INPUT button on the remote control to INPUT select the input source.
  • Page 28 Basic operation BLANK Blank Image Blank Press BLANK button to black out the image. To restore to normal, press the BLANK button again or press any other button. The screen changes each time you press the “Blank” disappears after 4 seconds if there is button as follows: no other button operation.

  • Page 29: Input Select

    Input select Direct Operation Remote control INPUT Press HDMI, VGA, COMOPNENT, S-VIDEO or VIDEO button to select HDMI, VGA IN, Component, S-video or Video as input source. Top control HDMI S-VIDEO COMPONENT VIDEO INPUT Menu operation 1 Press MENU button on the remote control or Input select menu top control to display the input select menu.

  • Page 30: Pc Adjust

    PC Adjust Auto PC adj. Auto PC Adjustment function is provided to automatically adjust Fine sync, Total dots, Horizontal and Vertical to conform to your computer. Menu operation PC adjust Menu Auto PC adj. Auto PC adj. PC adjust Fine sync 1 Press MENU button on the remote control to Total dots 1056...

  • Page 31: Manual Pc Adj

    PC Adjust Manual PC adj. Some computers employ special signal formats which may not be tuned by Multi-scan system of this projector. Manual PC Adjustment is provided for you to precisely adjust several parameters to match those signal formats. The projector has five independent memory areas to store those parameters manually adjusted, which allows you to recall the setting for a specific computer.

  • Page 32: Display

    Display Following items can be set in Display menu:Screen Size, Keystone, Project Mode, Menu Position, Background Display and System. Screen Size Display menu The screen size can be reset to the value as you desire. Screen Size Normal PC adjust 1 Press MENU button on the remote control to Keystone Stored...

  • Page 33: Keystone

    Display Keystone Keystone menu This function is used to store or reset the keystone correction when the AC power cord is Screen Size Normal unplugged. PC adjust Reset Keystone Stored Stored 1 Press MENU button on the remote control to Project Mode Front ...

  • Page 34: Menu Position

    Display Menu Position You can use this function to change the Menu position position of screen menu. 1 Press MENU button on the remote control to Screen Size Normal PC adjust display screen menu. Press  button to Keystone Stored Upper left Project Mode Front...

  • Page 35: System

    Display System Computer system select The projector automatically tunes to various types of computers with its function of Multi-scan system and Auto PC Adjustment. If a computer is selected as a signal source, the projector automatically detects the signal format and tunes to project proper images without any additional setting.
  • Page 36 Display Video or S-video System for Video or S-video signal Auto System Video PC adjust Auto The projector automatically detects an  incoming video system,and adjusts itself to Display SECAM optimize its performance. When Video System NTSC Color adjust is PAL-M or PAL-N, select the system manually. NTSC4.43 Setting PAL-M...

  • Page 37: Color Adjust

    Color adjust Color adjust menu is used to set the image mode and adjust the image. Image Mode Menu operation 1 Press MENU button on the remote control to Image mode (Computer) display screen menu. Press  button to select Color adjust,then press OK button. Image Mode Normal ...

  • Page 38: Color Adjust(Computer)

    Color adjust Color adjust(Computer) 1 Press MENU button on the remote control to Color adjust(Computer) display screen menu. Press  button to select Color adjust,then press OK button. Image Mode Normal 2 Press button to select the item you want PC adjust Contrast to set, press OK button.

  • Page 39: Color Adjust

    Color adjust Color adjust (Vdieo,S-video,Component) Color adjust(Video,S-video, Component) 1 Press MENU button on the remote control to display screen menu. Press  button to select Color adjust, then press OK button. Image Mode Normal PC adjust 2 Press button to select the item you want Contrast Brightness to set, press OK button.

  • Page 40: Setting

    Setting The projector has Setting menu that allows you to set the other various functions described as follows. 1 Press MENU button on the remote control to Setting menu display screen menu. Press  button to select Setting ,then press OK button. On start PC adjust 2 Press...

  • Page 41: High Land

    Setting High land High land Enable to control the fan through the Setting On start PC adjust menu. Standby mode Normal High land You can select the running speed of the fan  Display Lamp control according to the altitude of the location where Cooling fast Normal Color adjust...

  • Page 42: Closed Caption

    Setting Closed Caption Allows the subtitle to be displayed for the Closed Caption audio contents or other information. If the input source contains closed caption, you can enable On start this function and change the channel. Press PC adjust Standby mode Normal ...

  • Page 43: Iris

    Setting Iris Iris This function is used to increase the contrast of On start the image. PC adjust Standby mode Normal On..Enable Iris function, increase the High land Display contrast of the image. Lamp control Off..Disable Iris function. Cooling fast Normal Color adjust Closed caption...

  • Page 44: Expand

    Expand The projector has Expand menu that allows you to set the other various expand functions described as follows. 1 Press MENU button on the remote control to Expand menu display screen menu. Press  button to select Expand ,then press OK button. Language 2 Press ...

  • Page 45: Logo

    Expand Logo This function allows you to customize the screen logo with Logo select, Capture, Logo PIN code lock and Logo PIN code change functions. Logo Select Logo This function decides on the starting-up display from among following options. Default ..Show the factory-set logo. Logo User..Show the image captured by user.

  • Page 46: Security

    Expand Security Security This function allows you to use the PIN code Security lock and PIN code change functions to set the PC adjust PIN code lock security for the projector operation. PIN code change Display PIN code lock Color adjust This function prevents the projector from Setting being operated by unauthorized persons...

  • Page 47: Power Management

    Expand Power management For reducing power consumption as well as maintaining the lamp life, the Power management function turns off the projection lamp when the projector is not operated for a certain period. Select one of the following options: Ready ....When the lamp has been fully cooled down, the POWER indicator changes to green blinking.In this condition, the projection lamp will be turned on if the input signal is reconnected or any button on the top control or remote control is pressed.

  • Page 48: Test Pattern

    Expand Test Pattern Test Pattern This function is used to set the internal test Test Pattern PC adjust  signal:Gray scale 1,Gray scale 2,Gray scale Gray scale 1 Display 3,Gray scale 4, Color bar, Red, Green, Blue, Gray scale 2 Cross hatch,White,Black and Gray.
  • Page 49 Expand (3) When DHCP is set On, IP address, Network setting Subnet, Gateway and DNS will be DHCP IP address abtained automatically, press OK at Subnet "Set" to confirm the parameters. Gateway When DHCP is set Off, press OK Cancel button to enter IP address, then press button to enter Subnet, Select...

  • Page 50: Infomation

    Infomation The information menu is used to detect signal of projected image and running state. Menu operation Press MENU button on the remote control to Info. menu display the screen menu. Press  to select Info., then press OK button, the information Input VGA IN 1 menu will appear as the right picture.

  • Page 51: Network Control

    Network Control (Some model doesn't support this function.) You can set and control the projector through network. Connecting to the LAN Computer Projector Connect the LAN cable to the LAN terminal of the projector. LAN cable LAN cable Router Computer operation Network setting 1.
  • Page 52 Network Control (Some model doesn't support this function.) Webpage operation 1. Input IP address in address bar. Refer to page 50 for obtaining IP address. 2. Input ID and password,click OK to display the webpage. Default ID: admin Default password:admin 3.
  • Page 53 Network Control (Some model doesn't support this function.) Projector/Display This page displays Screen size, Menu position and Background. Projector/ColorAdj You can select Image Mode, adjust value of Contrast/Brightness/Red/Green/Blue/Sharpness in this page. Projector/Input You can select input source in this page. VGA IN 1 VGA IN 2...
  • Page 54 Network Control (Some model doesn't support this function.) Projector/Setting You can set Input Search/Auto PC adj/On start/Lamp control/Blank/Freeze in this page.

  • Page 55: Maintenance And Cleaning

    Maintenance and cleaning POWER indicator The POWER indicator shows the state of the function which protects the projector. Check the state of the POWER indicator to take proper maintenance. The projector is shut down and the POWER POWER indicator indicator is flashing orange. POWER indicator When the temperature inside the projector flashes orange.

  • Page 56: Cleaning The Filter

    Maintenance and cleaning Cleaning the filter The air filter prevents dust from accumulating on the surface of the optical elements inside the projector. Should the air filter become clogged with dust particles, it will reduce cooling fans’ effectiveness and may result in a buildup of internal heat and adversely affects the life of the projector.

  • Page 57: Clean The Project Lens

    Maintenance and cleaning Clean the project lens Unplug the AC power cord before cleaning. Gently wipe the projection lens with a cleaning cloth that contains non-abrasive camera lens cleaner, or use a lens cleaning paper or commercially available air blower to clean the lens.

  • Page 58: Replace The Lamp

    Maintenance and cleaning Replace the lamp When the projection lamp of the projector Lamp replacement icon reaches its end of life,the Lamp replacement Lamp replace icon appears on the screen, please replace the lamp immediately. As temperature inside the projector is high, For the sake of safety, only use the lamp of you should cool the projector for at least 45 the same model.
  • Page 59 Maintenance and cleaning LAMP HANDLING PRECAUTIONS This projector uses a high-pressure lamp which must be handled carefully and properly. Improper handling may result in accidents, injury, or create a fire hazard. ● Lamp life may differ from lamp to lamp and according to the environment of use. There is no guarantee of the same life for each lamp.

  • Page 60: Appendix

    Appendix Troubleshooting Before calling your dealer or service center for assistance, check the items below once again. - Make sure you have properly connected the projector to peripheral equipment. - Make sure all equipment is connected to the AC outlet and the power is turned on. - If the projector does not project an image when it is connected to a PC, restart the PC.
  • Page 61 Appendix No Sound - Check the audio cable connection from audio input source. - Adjust the audio source.(Page 25) - Press the VOLUME + button.(Page 25) - Press the Mute button. - When the AUDIO OUT is plugged in, the projector’s built-in speaker is not available.

  • Page 62: Indicator And Projector State

    Appendix Indicator and projector state Check the indicator to know about the state of projector. Indicator State of projector POWER WARNING (Green/Red) (Red) The projector is off. (AC power cord not connected). The projector is operating normally. - In standby mode. Press POWER to power on the projector. - When the projector is cool enough, the temperature is restored to the normal value, you can turn on the projector.

  • Page 63: Compatible Computer Specifications

    Appendix Compatible computer specifications This projector can receive the signals below: Scanning frequency Signal Dot Frequceny horizontal Field Signal format Resolution (Mhz) frequency Frequceny Component HDMI Video/S-Video (Khz) (Hz) NTSC/NTSC443/PAL-M (720x487) 15.734 59.940 PAL/PAL-N/SECAM (720x576) 15.625 50.000 720x480i 15.734 59.940 13.500 525i (480i) 720(1440)x480i...

  • Page 64: Configurations Of Terminals

    Appendix Configurations of terminals COMPUTER IN 1/SCART, COMPUTER IN 2/MONITIOR OUT Terminal: Analog RGB (D-sub 15 pin) Red (Input/output) ----- Green (Input/output) Grounding (field synchronizing) Blue (Input/output) Grounding ----- DDC data Horizontal synchronizing Grounding (line synchronizing) (compound sync.) input/output Grounding (red) Vertical synchronizing input/output Grounding (green) DDC Clock...

  • Page 65: Dimensions

    Appendix Dimensions Unit: mm  Screw Holes for Ceiling Mount Screw: M4 Depth: 10.0...

  • Page 66: Pin Code Memorandum

    Appendix PIN code memorandum Write down the PIN code in the blank below and keep it, please contact the repair center. Factory default PIN code 111* PIN code lock Factory default PIN code 111* Locking startup-animation PIN code *If this 3-digit number is changed, the factory default number will be ineffective.
