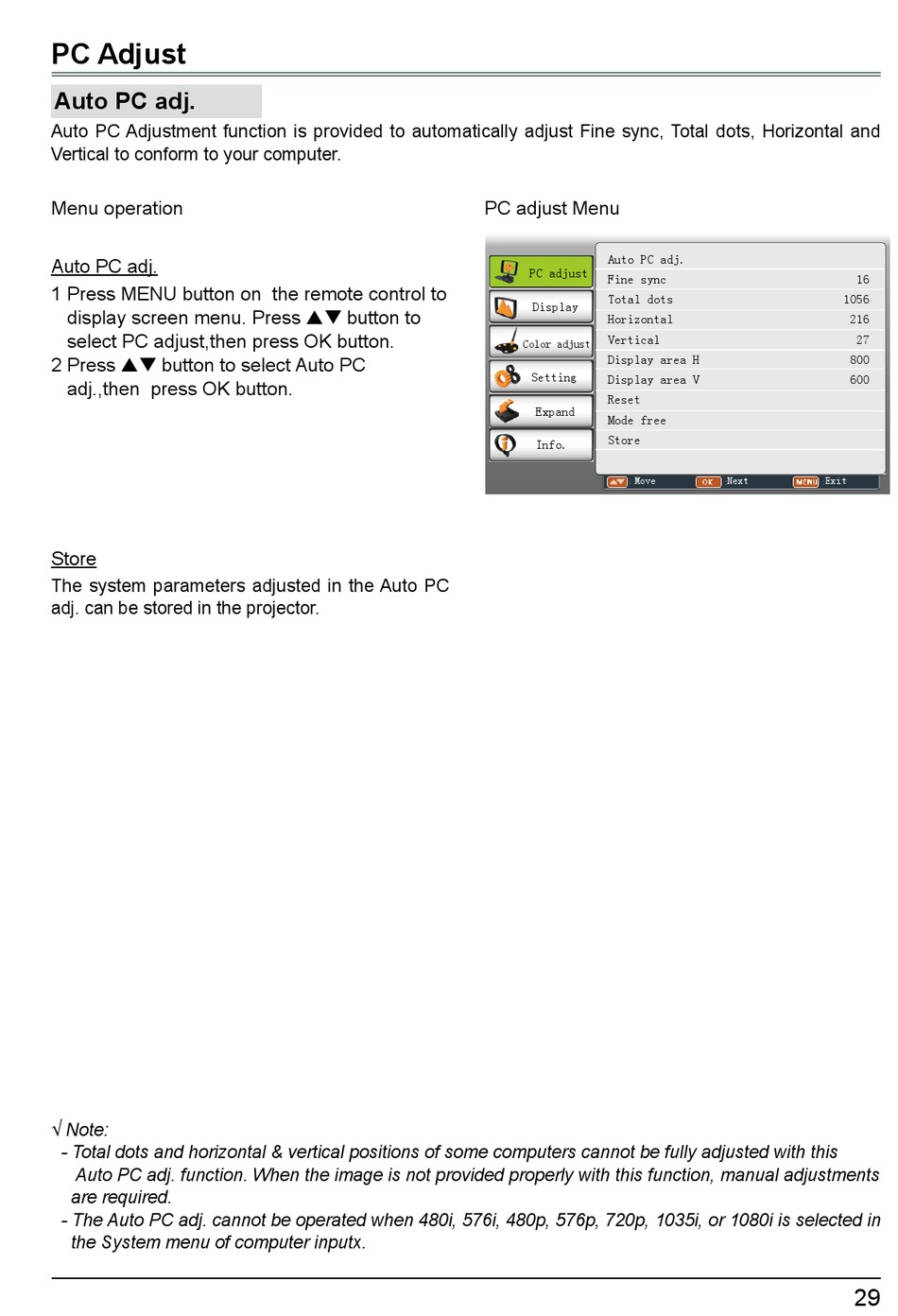

PC Adjust

Auto PC adj.

Auto PC Adjustment function is provided to automatically adjust Fine sync, Total dots, Horizontal and
Vertical to conform to your computer.
Menu operation
Auto PC adj.
1 Press MENU button on the remote control to
display screen menu. Press  button to
select PC adjust,then press OK button.
2 Press  button to select Auto PC
adj.,then press OK button.
Store
The system parameters adjusted in the Auto PC
adj. can be stored in the projector.
√ Note:
- Total dots and horizontal & vertical positions of some computers cannot be fully adjusted with this
Auto PC adj. function. When the image is not provided properly with this function, manual adjustments
are required.
- The Auto PC adj. cannot be operated when 480i, 576i, 480p, 576p, 720p, 1035i, or 1080i is selected in
the System menu of computer inputx.
PC adjust Menu
Auto PC adj.
PC adjust
Fine sync
Total dots
Display
Horizontal
Vertical
Color adjust
Display area H
Setting
Display area V
Reset
Expand
Mode free
Store
Info.
Move
16
1056
216
27
800
600
Next Exit
