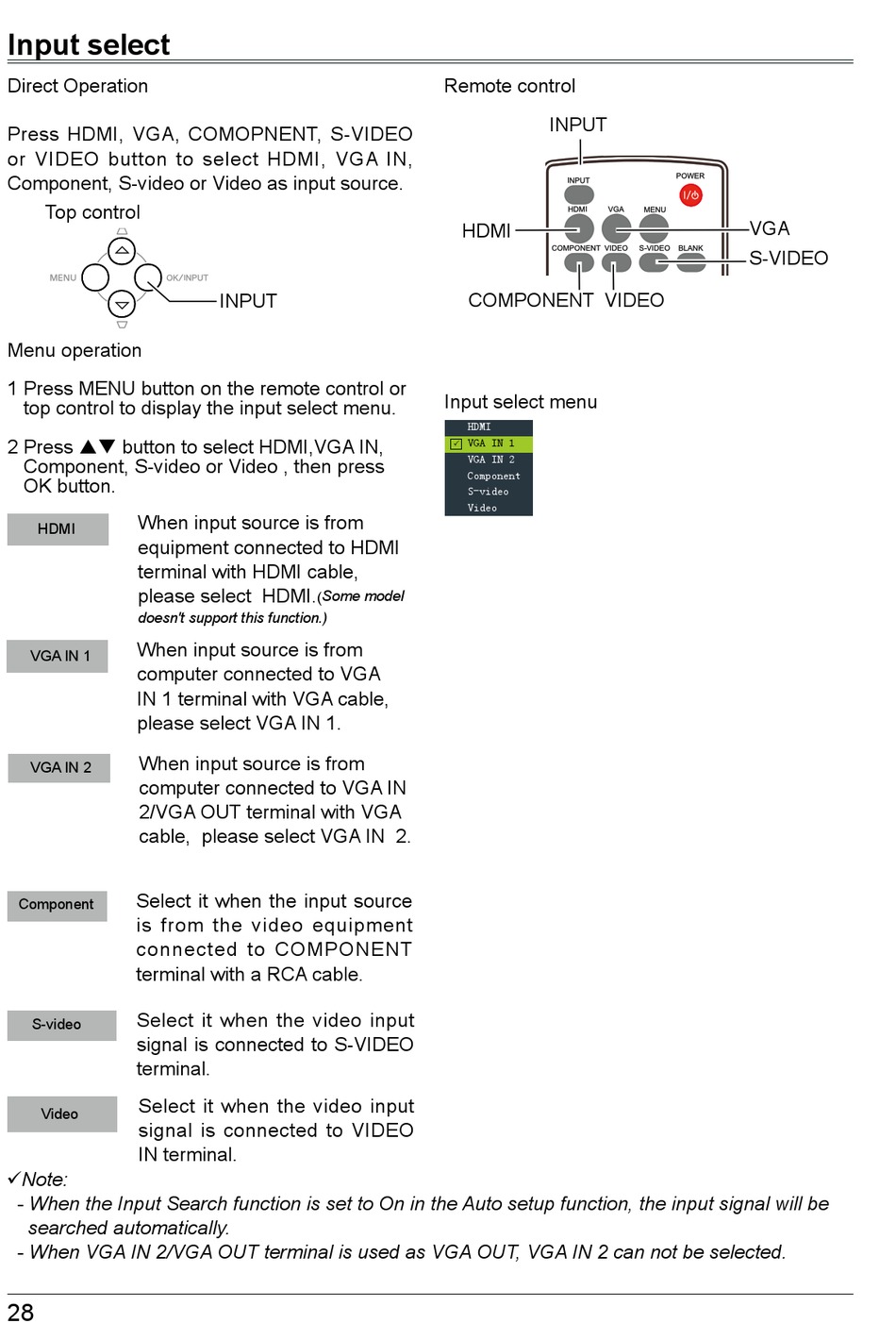

Input select

Direct Operation
Press HDMI, VGA, COMOPNENT, S-VIDEO
or VIDEO button to select HDMI, VGA IN,
Component, S-video or Video as input source.
Top control
Menu operation
1 Press MENU button on the remote control or
top control to display the input select menu.
2 Press  button to select HDMI,VGA IN,
Component, S-video or Video , then press
OK button.
When input source is from
HDMI
equipment connected to HDMI
terminal with HDMI cable,
please select HDMI.
doesn't support this function.)
When input source is from
VGA IN 1
computer connected to VGA
IN 1 terminal with VGA cable,
please select VGA IN 1.
When input source is from
VGA IN 2
computer connected to VGA IN
2/VGA OUT terminal with VGA
cable, please select VGA IN 2.
Select it when the input source
Component
is from the video equipment
connected to COMPONENT
terminal with a RCA cable.
Select it when the video input
S-video
signal is connected to S-VIDEO
terminal.
Select it when the video input
Video
signal is connected to VIDEO
IN terminal.
Note:
- When the Input Search function is set to On in the Auto setup function, the input signal will be
searched automatically.
- When VGA IN 2/VGA OUT terminal is used as VGA OUT, VGA IN 2 can not be selected.
28
INPUT
( Some model
Remote control
INPUT
HDMI
COMPONENT VIDEO
Input select menu
HDMI
VGA IN 1

VGA IN 2
Component
S-video
Video
VGA
S-VIDEO
