Part names and functions

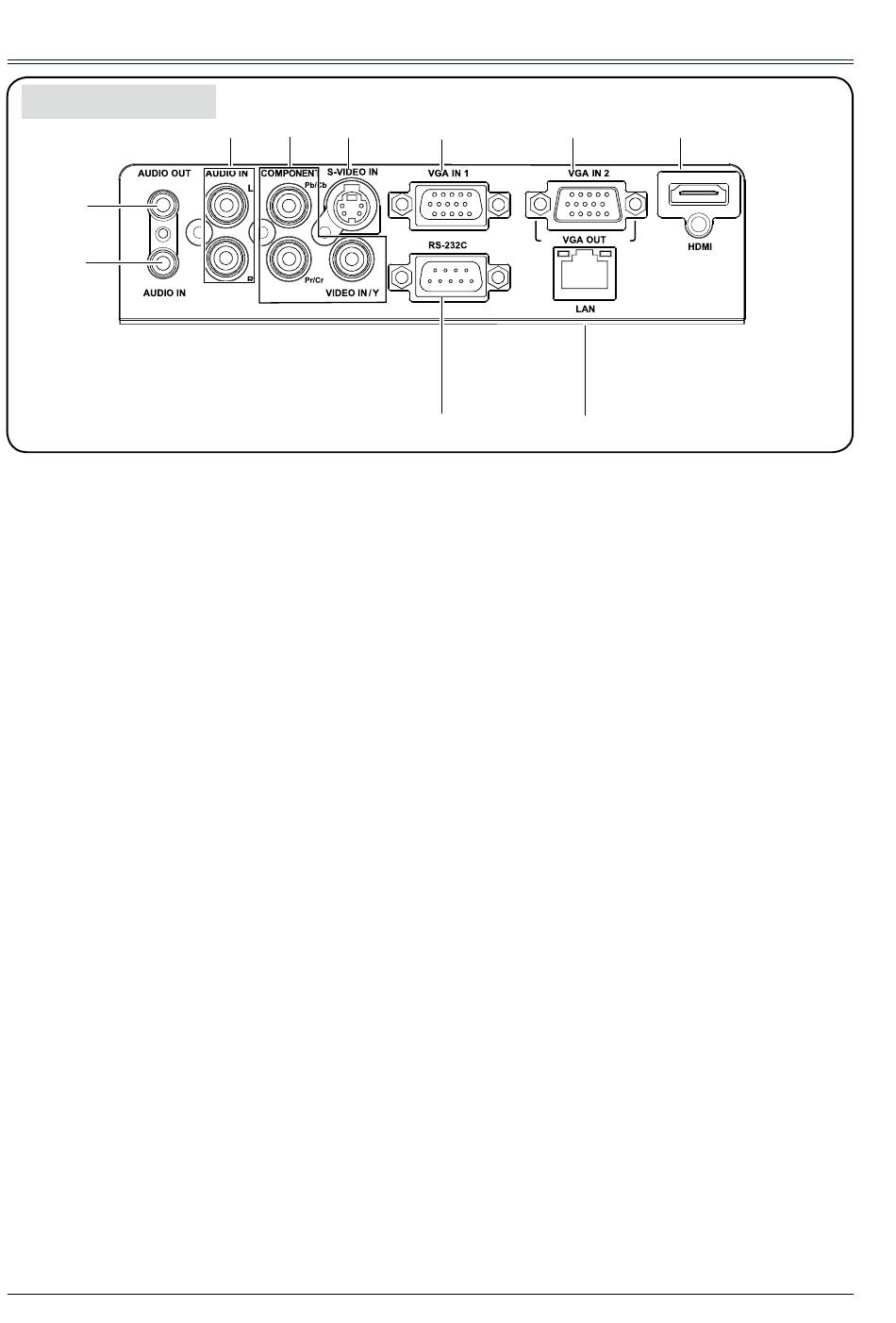

Terminals

①
⑧
① AUDIO OUT *
- Connect external audio amplifier to this
jack.
- Output audio signal from ②，⑦ or ⑧ .
② AUDIO IN (R/L) *
- Connect the video equipment connected
to ③ or ④ to this jack.
- For a mono audio signal (a single audio
jack), connect it to L(MONO) jack.
③ COMPONENT/VIDEO IN
- Connect video signal to VIDEO port.
- Connect composite video or component
video signal to this jack.
④ S-VIDEO IN
Connect S-Video signal to this jack.
⑤ VGA IN 1
Connect a computer output to this terminal.
⑥ VGA IN 2/VGA OUT
- Connect a computer output to this
terminal.
- Output the analog signal from ⑥ to
other monitor.
10
④
② ③
⑤ ⑥
⑨ ⑩
⑦ HDMI *
Connect a HDMI output to this terminal.
⑧ AUDIO IN *
Connect the audio signal output from
computer equipment connected to ⑤ or ⑥
to this jack.
⑨ RS-232C
When using RS232 to control the projector,
please connect the serial control line to this
terminal.
⑩ LAN *
Connect the wired LAN cable to this port.
*Some model doesn't support this function.
