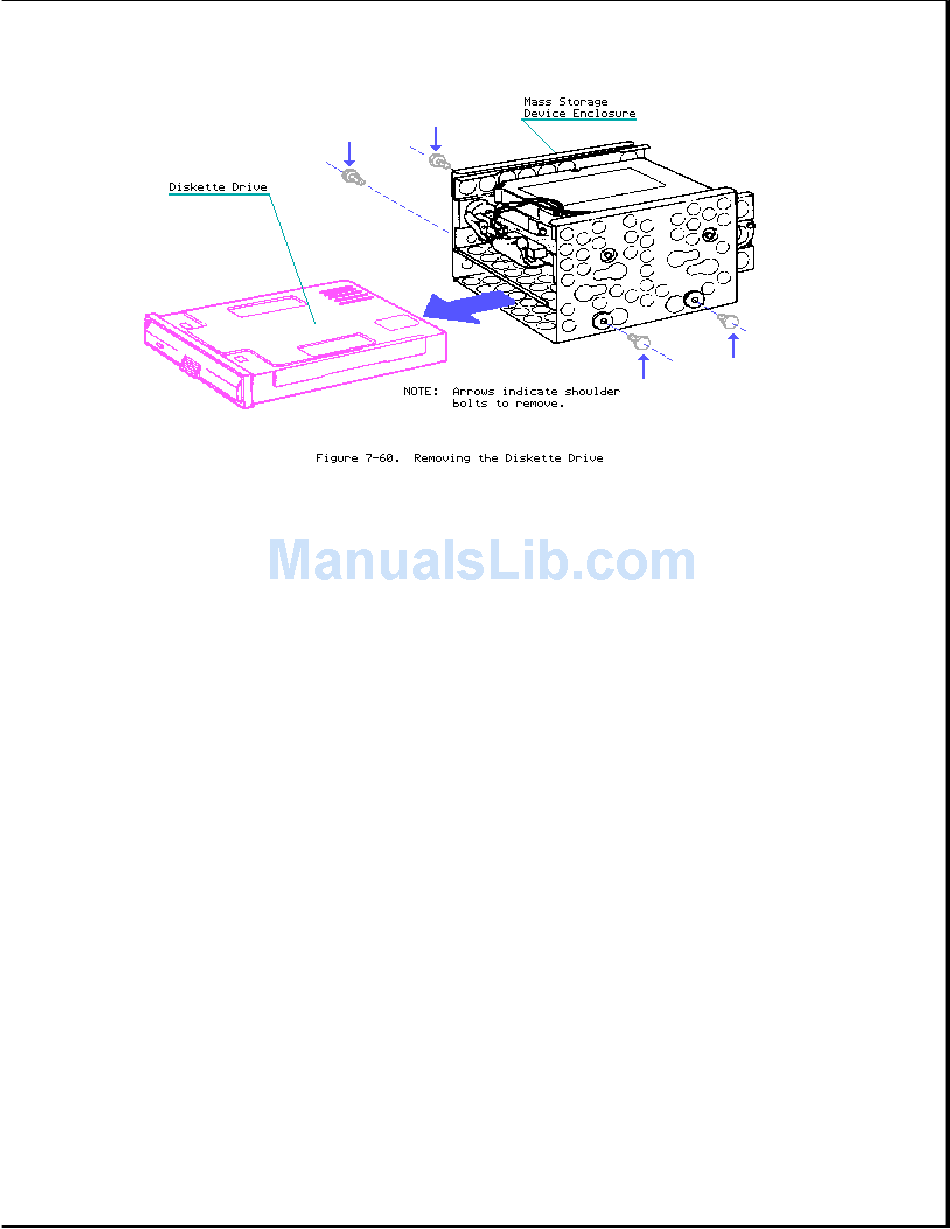

NOTE: When removing the diskette drive, make sure the vibration isolators
are not lost. You need to reinstall all four isolators when replacing the
diskette drive assembly.
To replace the diskette drive assembly, reverse steps 1 through 3.
NOTE: When replacing a flip door style diskette drive with a push button
style diskette drive, you should also order a replacement drive bezel (PN
104059-001 (No longer available)) to provide a better fit for the new
diskette drive assembly.
Chapter 7.23 Speaker and Brightness Potentiometer
To remove the speaker and brightness potentiometer:
1. Remove the cable tray access plate (see Section 7.13).
2. Remove the mass store device enclosure (see Section 7.22).
3. Remove the front bezel (see Section 7.5).
4. The speaker is secured to the system chassis by a snap in mount and a
toe in mount that extend through the system chassis.
by first disconnecting the speaker/brightness control connector from the
J114 position on the system board, then pressing the snap in mount
inward. At the same time, push the speaker out of the system chassis
(Figure 7-61).
Remove the speaker
