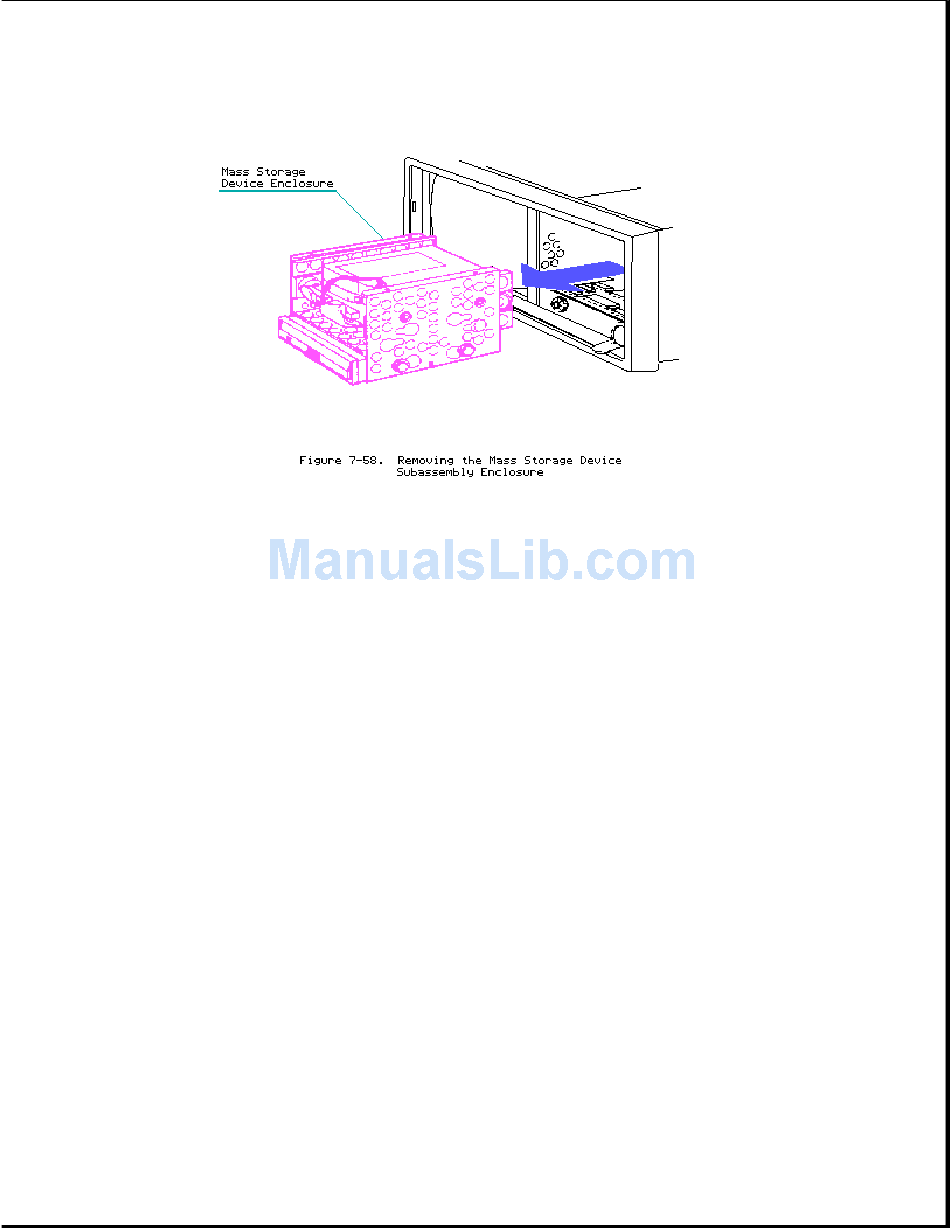

To replace the mass storage device subassembly enclosure, reverse
steps 1 through 7.
Fixed Disk Drive
To remove the fixed disk drive assembly:
1.
Remove the mass storage device subassembly enclosure (see
Section 7.22).
2.
Using a Torx screwdriver, remove the two shoulder bolts and vibration
isolators from either side of the mass storage device subassembly
enclosure.
Slide the fixed disk drive assembly enclosure out of the mass
storage device subassembly (Figure 7-59).
