1.
Remove the board slots access plate (see Section 7.10).
2.

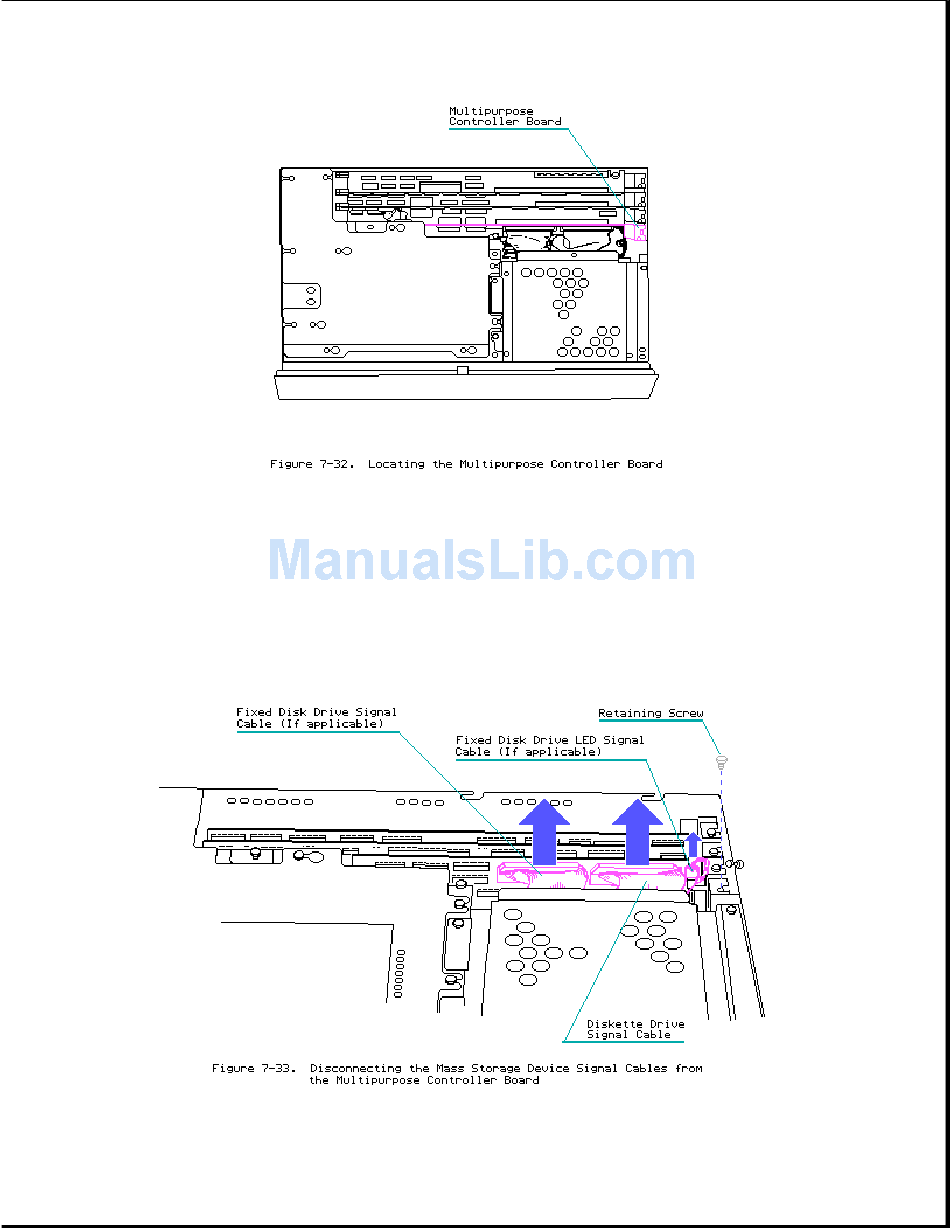

Disconnect the mass storage device signal cable(s) as shown in
Figure 7-33.
NOTE: If a fixed disk drive is installed in the system chassis, you must
disconnect two signal cables.
3.
Using a Torx screwdriver, remove the board retaining screw.
Carefully
