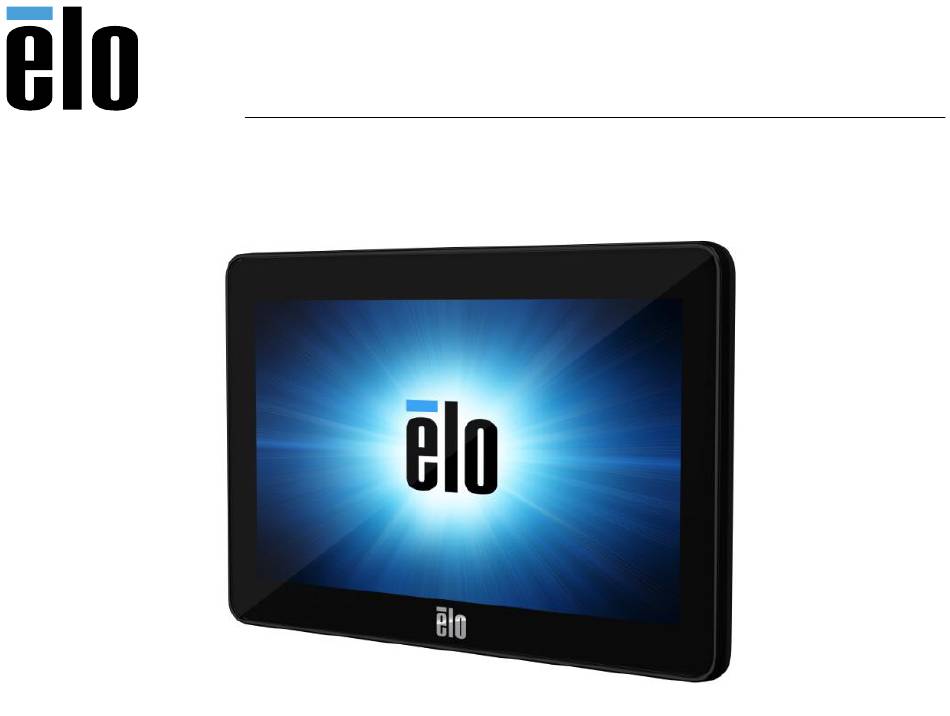

- Page 1 USER MANUAL Elo Touch Solutions ET0702L UM600315 Rev D...
- Page 2 Disclaimer The information in this document is subject to change without notice. Elo Touch Solutions, Inc. and its Affiliates (collectively “Elo”) make no representations or warranties with respect to the contents herein, and specifically disclaim any implied warranties of merchantability or fitness for a particular purpose. Elo reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of Elo to notify any person of such revisions or changes.
-
Page 3: Table Of Contents
Table of Contents Section 1: Introduction ............................................... 4 Section 2: Installation ..............................................5 Section 3: Mounting ..............................................8 Section 4: Operation ..............................................9 Section 5: Technical Support ........................................... 12 Section 6: Safety & Maintenance ..........................................14 Section 7: Regulatory Information ..........................................15 Section 8: Warranty Information .......................................... -
Page 4: Section 1: Introduction
Section 1: Introduction Product Description Your new touch monitor combines the latest developments in touch technology and display design with reliability for use in high-traffic environments. This touch monitor incorporates a 24-bit color, active matrix thin-film-transistor LCD panel to provide high-quality display performance. It’s resolution of 800x480 is suitable for displaying graphics and images. -
Page 5: Section 2: Installation
Section 2: Installation Unpacking the Touch Monitor Open the carton and verify that the following items are present: • Touch monitor • Quick Install Guide • microUSB Type-B to USB Type-A Y-cable • Cable cover with screw User Manual ET702L... - Page 6 Connector Panel Touch Monitor Connections 1. Connect microUSB side of the USB Y-cable to monitor’s micro USB input connector and the other end of the Y-cable to USB type A ports on your computer. (It’s recommended that you plug in both USBs to your PC) 2.
- Page 7 Installing the DisplayLink Video Drivers The DisplayLink technology enables video over USB, which will allow your monitor to use a single USB cable for power, video and touch. To download the latest DisplayLink drivers: 1. Visit www.elotouch.com/Support/Downloads/Driver/DriverDownload/Default.aspx 2. Select the Peripheral Drivers from the Product Category drop-down menu. 3.
-
Page 8: Section 3: Mounting
Section 3: Mounting Rear VESA Mount A four-hole 75 x 75 mm mounting interface for M4 screws is provided on the rear of the monitor. The VESA FDMI-compliant counting is coded VESA MIS-D, 75, C User Manual ET702L... -
Page 9: Section 4: Operation
Section 4: Operation Power To turn the touch monitor on or off, press the touch monitor’s power button once. The system consumes low power when in SLEEP or OFF modes. For detailed power-consumption specifications, refer to the technical specifications on the Elo website http://www.elotouch.com Touching the screen will bring the attached host PC out of SLEEP mode (similar to moving the mouse or pressing a keyboard key). - Page 10 Projected Capacitive Touch Technology When connected to Windows 7, 8 or 10 computers, the touch monitor can detect 10 simultaneous touches. When connected to Windows XP computers, the touch monitor detects only single touches. No additional drivers are required for this technology to work with Windows 7, 8 or 10, as it uses Windows HID drivers. Refer to Section 2, “Installing the Touch Technology Software Drivers,”...
- Page 11 Gesture Support TouchPro PCAP technology enables several gestures that support single and multiple touches. Refer to the Microsoft website at http://msdn.microsoft.com/en-us/library/dd940543 on the various gestures that are supported in Windows 7, 8, 10 and later OS versions. Video A display’s native resolution is its width and height measured in pixels. Generally, for best performance, an image displayed on this monitor will look best when your computer’s output resolution matches this monitor’s native resolution, which is 800 x 480.
-
Page 12: Section 5: Technical Support
If you are experiencing trouble with your touch monitor, refer to the following suggestions. If the problem persists, please contact your local dealer or contact Elo Touch Solutions Customer Service. Worldwide technical support phone numbers are available on the last page of this user manual. - Page 13 Technical Assistance Technical Specifications Technical Support Visit https://www.elotouch.com/support Visit https://www.elotouch.com/products for technical support for technical specifications for this device See this user manual’s last page for worldwide technical support phone numbers. User Manual ET0702L...
-
Page 14: Section 6: Safety & Maintenance
Section 6: Safety & Maintenance Safety • To avoid risk of electric shock, follow all safety notices, and do not disassemble the touch monitor. The touch monitors are not user-serviceable. • The touch monitor ships with a three-wire, grounded power cord. The power cord plug fits into grounded outlets only. Do not fit or modify the plug into an outlet that has not been configured for this purpose. -
Page 15: Section 7: Regulatory Information
Section 7: Regulatory Information Electrical Safety Information Compliance is required with respect to the voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a power source different than those specified herein will likely result in improper operation or damage to the equipment or pose a fire hazard. There are no user-serviceable parts inside this equipment. - Page 16 (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: (1) l’appareil ne doit pas produire de brouillage;...
- Page 17 User Manual ET0702L...
- Page 18 Agency Certifications The following certifications and marks have been issued or declared for this monitor: • Canada CUL, IC • China CCC • Europe CE • United Kingdom UKCA • United States FCC, UL • Japan VCCI • International CB •...
- Page 19 China RoHS In accordance with Chinese law (Administration on the Control of Pollution Caused by Electronic Information Products), the section below lists the names and amounts of the toxic and/or hazardous materials that this product may contain. Component Name Toxic or Hazardous Substances and Elements Hexavalent Polybrominated Polybrominated...
- Page 20 Explanation of Markings 1. In accordance with the SJ/T11364-2006 requirement, the electronic information products are marked with the following pollution control logo. The Environment-Friendly Use Period for this product is 10 years. The product will not leak or mutate under normal operating conditions, listed below, so that the use of this electronic information product will not result in any severe environmental pollution, any bodily injury, or damage to any assets.
- Page 21 Monitor Specifications Electrical Ratings Input 5 VDC, 1.0 A Operating Conditions Temperature 0-40°C Humidity 20-80% (non-condensing) Altitude 0-3, 48m Storage Conditions Temperature -20-60°C Humidity 10-95% (non-condensing) Altitude 0-12,192m Ingress Protection IP65 IP Rating Impact Protection IK06 IK Rating User Manual ET0702L...
-
Page 22: Section 8: Warranty Information
Section 8: Warranty Information Except as otherwise stated herein, or in an order acknowledgment delivered to Buyer, Seller warrants to Buyer that the Product shall be free of defects in materials and workmanship. The warranty for the touch monitors and their components is three years. Seller makes no warranty regarding the model life of components. - Page 23 Notes User Manual ET0702L...
- Page 24 Notes User Manual ET0702L...
- Page 25 Press Releases • Software Drivers • Touch Monitor Newsletter To find out more about our extensive range of Elo touch solutions, go to www.elotouch.com, or call the office nearest you. Asia Pacific Americas Europe (EMEA) Tel +86 (21) 3329 1385...
