Page 1: User Manual

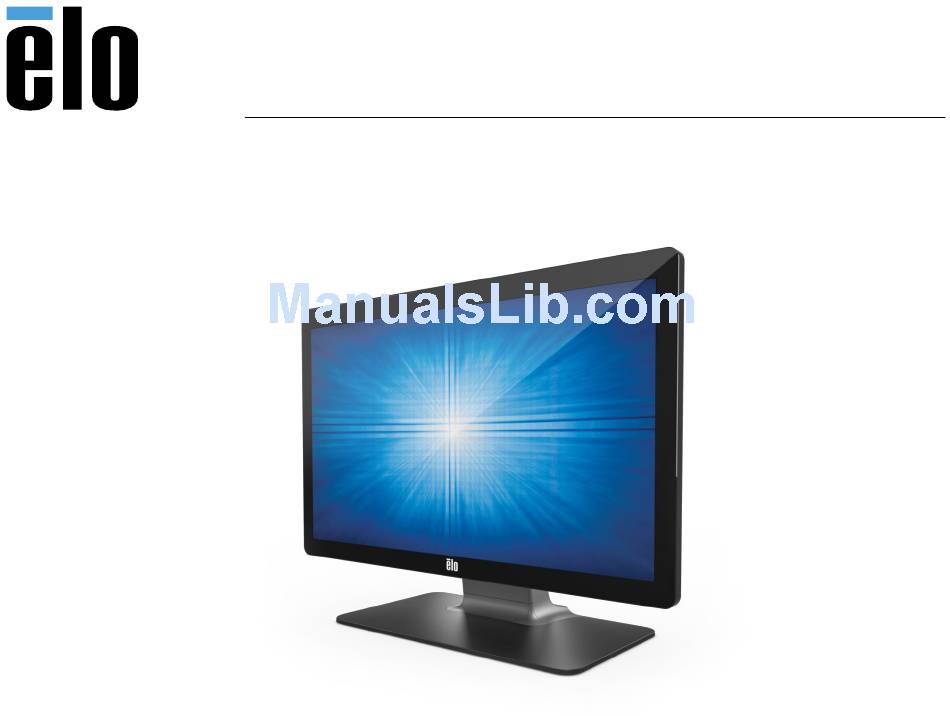

USER MANUAL Elo Touch Solutions ET1902L, ET2202L, ET2402L, ET2702L UM600162 Rev A... - Page 2 Disclaimer The information in this document is subject to change without notice. Elo Touch Solutions, Inc. and its Affiliates (collectively “Elo”) make no representations or warranties with respect to the contents herein, and specifically disclaim any implied warranties of merchantability or fitness for a particular purpose. Elo reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of Elo to notify any person of such revisions or changes.
-
Page 3: Table Of Contents
Section 3: Mounting ..............................................8 Section 4: Operation ..............................................14 Section 5: Technical Support ............................................ 15 Section 6: Safety & Maintenance ..........................................17 Section 7: Regulatory Information ..........................................18 Section 8: Warranty Information ..........................................24 User Manual ET1902L, ET2202L, ET2402L, ET2702L... -
Page 4: Section 1: Introduction
This manual contains information that is important for the proper setup and maintenance of the unit. Before setting up and powering on your new touch monitor, read through this manual, especially the Installation, Mounting, and Operation Sections. User Manual ET1902L, ET2202L, ET2402L, ET2702L... -
Page 5: Section 2: Installation
HDMI cable • USB cable • Audio cable • Power brick • Europe power cord • North America power cord • 3 x tie wraps • EEI Label • 2 x cable cover screws User Manual ET1902L, ET2202L, ET2402L, ET2702L... -
Page 6: Connector Panel
4. Connect the power adaptor’s input connector to the power source. Connect the power adaptor’s DC output connector to the monitor’s input power jack. 5. The touch monitor ships in an OFF state. Press the power button to turn it on. User Manual ET1902L, ET2202L, ET2402L, ET2702L... - Page 7 To download the latest touch drivers: 1. Visit www.elotouch.com/Support/Downloads/Driver/DriverDownload/Default.aspx 2. Select the operating system from the Operating System drop-down menu. 3. Select the technology from the Technologies drop-down menu. 4. Download the driver version required for your touch monitor. User Manual ET1902L, ET2202L, ET2402L, ET2702L...
-
Page 8: Section 3: Mounting
A four-hole 100 x 100 mm mounting interface for M4 screws is provided on the rear of the monitor. Remove the stand using a Phillips screwdriver to access the mounting interface. The VESA FDMI-compliant counting is coded VESA MIS-B, 75, C and VESA MIS-D, 100, C. User Manual ET1902L, ET2202L, ET2402L, ET2702L... - Page 9 Base Mount The VESA FDMI-compliant counting is coded VESA MIS-E, C. ET1902L & ET2202L base mounting options are shown below. User Manual ET1902L, ET2202L, ET2402L, ET2702L...
- Page 10 ET2402L & ET2702L base mounting options shown below. User Manual ET1902L, ET2202L, ET2402L, ET2702L...
- Page 11 Your monitor comes with four pheripheral ports, located at the top, bottom, left and right sides of the monitor. To mount an MSR, remove one of the pheripheral port covers with your finger tips and install the MSR as shown below. Please refer to the MSR Quick Install Guide (QIG) for set-up details. User Manual ET1902L, ET2202L, ET2402L, ET2702L...
-
Page 12: Wall Mount
Attach the other bracket to the monitor using the four M4 screws included in the kit. Hang the monitor on the wall bracket and secure using two M3 screws included with the kit on the left and right side of the bracket. User Manual ET1902L, ET2202L, ET2402L, ET2702L... - Page 13 Optional handles can be installed on 02 Series monitors, as shown below. Please note that it is not recommended to use handles to carry the touch monitor. Damage to the touch monitor will occur if the touch monitor is lifted by the handles. Use handles only to adjust the tilt angle. User Manual ET1902L, ET2202L, ET2402L, ET2702L...
-
Page 14: Section 4: Operation
Note: When using a privacy filter with your monitor, it is important to update the touch configuration file of you monitor to support touch. If you are using an ET1902L/ET2202L monitor, the touch-through configuration file is already built into your monitor. Simply go to the OSD menu and enable the touch-through function. - Page 15 No additional drivers are required for this technology to work with Windows 7, 8 or 10, as it uses Windows HID drivers. Refer to Section 2, “Installing the Touch Technology Software Drivers,” for instructions on downloading touch drivers for Windows XP. No calibration is required for this technology. User Manual ET1902L, ET2202L, ET2402L, ET2702L...
-
Page 16: Gesture Support
Decrease value of selected parameter/select previous menu item Display OSD Brightness submenu Increase value of selected parameter/select next menu item Select Display Video Priority submenu Select parameter for adjustment/select submenu to enter Power key Power on/off display User Manual ET1902L, ET2202L, ET2402L, ET2702L... - Page 17 R, G, and B gains on a scale from 0 to 100. Default: User Defined with R, G, and B all set to 100. User Manual ET1902L, ET2202L, ET2402L, ET2702L...
- Page 18 This feature prevents having to reenter the settings every time the touch monitor is unplugged or powered off. In case of a power failure, the touch monitor settings will not default to the factory specifications. User Manual ET1902L, ET2202L, ET2402L, ET2702L...
- Page 19 Menu, Up, Down or Select keys will have no effect. Press and hold the “Menu” and “ ” buttons simultaneously for two seconds to enable/disable the Power Locking feature. When Power Locking is enabled, pressing the power switch will have no effect. User Manual ET1902L, ET2202L, ET2402L, ET2702L...
-
Page 20: Section 5: Technical Support
If you are experiencing trouble with your touch monitor, refer to the following suggestions. If the problem persists, please contact your local dealer or contact Elo Touch Solutions Customer Service. Worldwide technical support phone numbers are available on the last page of this user manual. -
Page 21: Technical Assistance
Technical Assistance Technical Specifications Technical Support visit www.elotouch.com/products Visit https://www.elotouch.com/support for technical support for technical specifications for this device See this user manual’s last page for worldwide technical support phone numbers. User Manual ET1902L, ET2202L, ET2402L, ET2702L... -
Page 22: Section 6: Safety & Maintenance
Monitors are not designed for outdoors. Waste Electrical & Electronic Equipment Directive (WEEE) This product should not be disposed of with household waste. It should be deposited at a facility that enables recovery and recycling. User Manual ET1902L, ET2202L, ET2402L, ET2702L... -
Page 23: Section 7: Regulatory Information
(2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : User Manual ET1902L, ET2202L, ET2402L, ET2702L... - Page 24 (Removing or cutting the line cord ground may increase RF emission levels and may also present a lethal shock hazard to the user.) If you need additional help, consult your dealer, manufacturer, or an experienced radio or television technician. User Manual ET1902L, ET2202L, ET2402L, ET2702L...
- Page 25 Canada CUL, IC • China CCC • Europe CE • Korea KCC • Taiwan BSMI • United States FCC, UL • Japan VCC! • International CB • Australia RCM • Russia EAC • Mexico CoC User Manual ET1902L, ET2202L, ET2402L, ET2702L...
-
Page 26: China Rohs
Indicates that the amount of this toxic or hazardous substance contained in at least one of the homogeneous materials used for this component is above the limit requirement in SJ/T11363-2006. For items marked with an X, exemptions were taken according to EU RoHS. User Manual ET1902L, ET2202L, ET2402L, ET2702L... -
Page 27: Power Adapter Specifications
2. It is encouraged and recommended that this product be recycled and reused according to local laws. The product should not be thrown away casually. Power Adapter Specifications Electrical Ratings Input 100-240 Vac, 50-60 Hz, 2.0-1.0 A Output 12.0 VDC, 5.42 A Electrical Ratings Input 100-240 Vac, 50-60 Hz, 1.6-0.7 A Output 12.0 VDC, 5 A User Manual ET1902L, ET2202L, ET2402L, ET2702L... -
Page 28: Monitor Specifications
12 VDC, 4.0 A Operating Conditions Temperature 0-40°C Humidity 20-80% (non-condensing) Altitude 0-3,048 m Storage Conditions Temperature -20-60°C Humidity 10-95% (non-condensing) Altitude 0-12,192 m Ingress Protection IPX1 (Front of the monitor only) IP Rating User Manual ET1902L, ET2202L, ET2402L, ET2702L... -
Page 29: Section 8: Warranty Information
Buyer is solely responsible for any and all representations and warranties regarding the Products made or authorized by Buyer. Buyer will indemnify Seller and hold Seller harmless from any liability, claims, loss, cost, or expenses (including reasonable attorney’s fees) attributable to Buyer’s products or representations or warranties concerning same. User Manual ET1902L, ET2202L, ET2402L, ET2702L... - Page 30 User Manual ET1902L, ET2202L, ET2402L, ET2702L...
- Page 31 Notes User Manual ET1903LM, ET2203LM, ET2403LM, ET2703LM...
- Page 32 Notes User Manual ET1903LM, ET2203LM, ET2403LM, ET2703LM...
- Page 33 Press Releases • Software Drivers • Touch Monitor Newsletter To find out more about our extensive range of Elo touch solutions, go to www.elotouch.com, or call the office nearest you. Asia-Pacific Latin America North America Europe Tel +52 55 2281-6958...
