Compaq Armada 4200 Reference Manual page 153

Pin Signal
1 Red Analog
2 Green Analog
3 Blue Analog
4 Not Connected
5 Ground
6 Ground
7 Ground
8 Ground
30
60
90
120
Pin Signal
1 CRT Green Analog
2 CRT Blue Analog
3 CRT Horizontal Sync
4 CRT Vertical Sync
5 Convenience Bay ID*
6 Printer Data 0
7 Printer Data 1
8 Printer Data 2
9 Printer Data 3
10 Printer Data 4
11 Printer Data 5
12 Printer Data 6

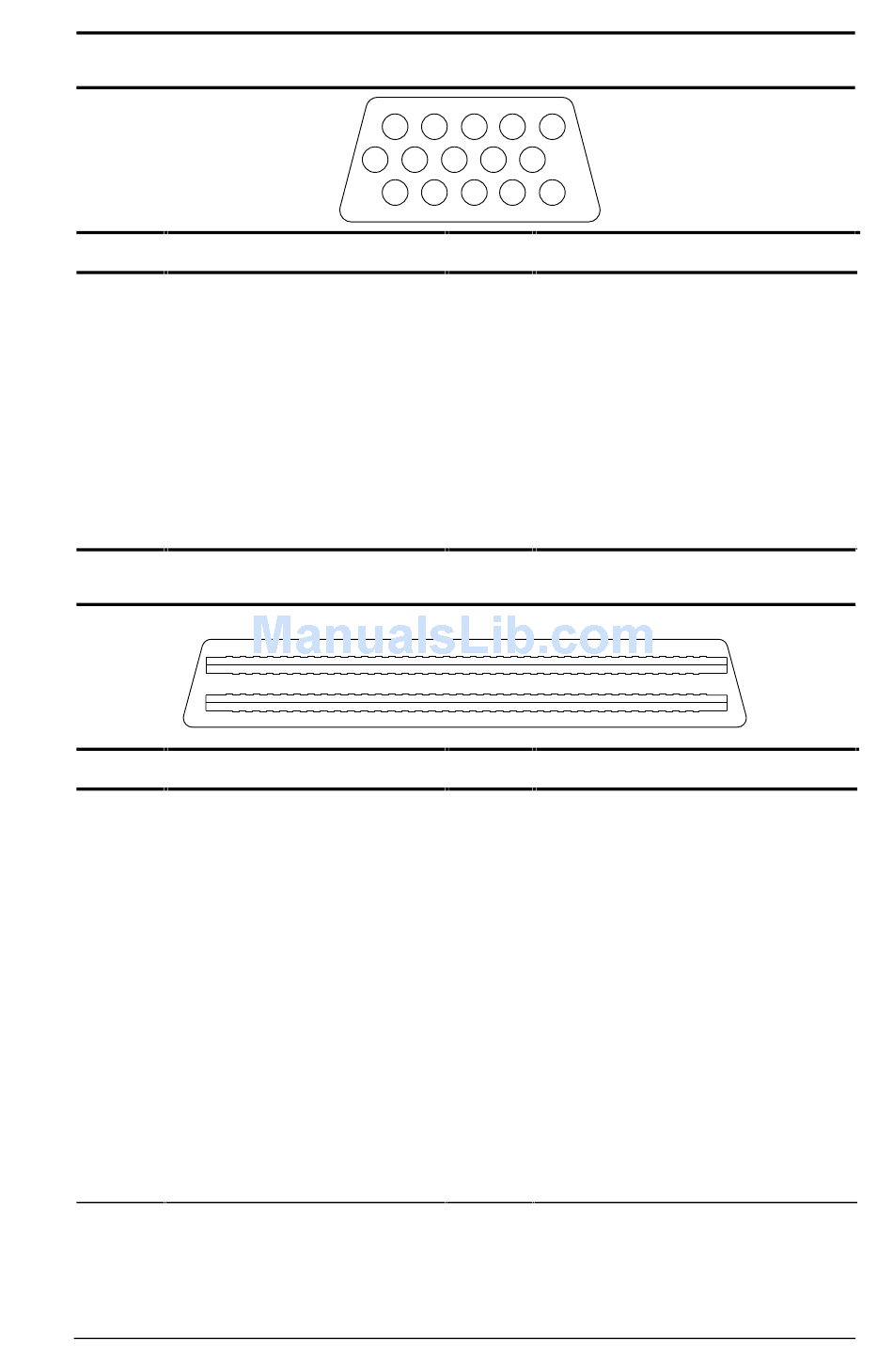

External VGA Monitor Connector
11
6
1
Docking Base Connector
12
10
5
Pin Signal
9 Not Connected
10 Ground
11 Not Connected
12 DDCD
13 Horizontal Sync
14 Vertical Sync
15 DDCC
Pin Signal
31 PEB +5V
32 CRT Red Analog
33 Ground
34 Ground
35 Ground
36 Printer Strobe*
37 Ground
38 Printer Auto Linefeed
39 IRQ15
40 Printer Error*
41 Ground
42 Printer Initialize*
Connector Pin Assignments C-3
1
31
61
91
Continued
