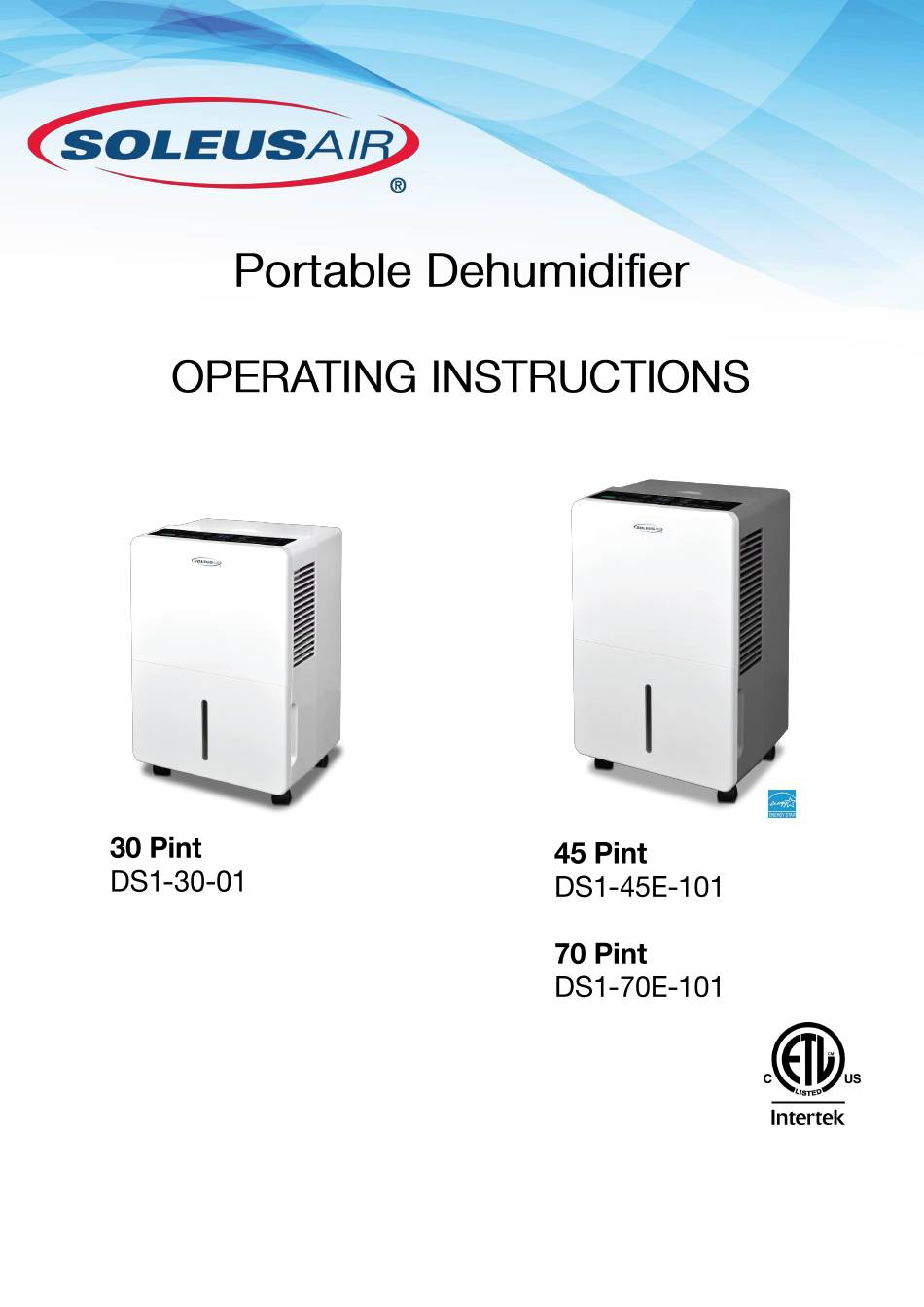

- Page 1 3058080 V.181113 Dehumidifier must be upright for 24 hours prior to operating. This ensures that the compressor will function as intended.
-
Page 2: Purchase Information
PURCHASE INFORMATION Thank you for choosing a Soleus Air Portable Dehumidifier. This Owner’s Manual will provide you with valuable information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and familiarize yourself with all the operational aspects of your new Soleus Air Portable Dehumidifier. - Page 3 DEHUMIDIFIER INFORMATION RECOMMENDED HUMIDITY LEVELS • Spring/Summer: 35% - 45% • Fall/Winter: 45% - 55% WARM AIR EXHAUST IS NORMAL During operation, your dehumidifier will exhaust warm air from the side of the unit. This is normal operation. EMPTYING THE BUCKET The more moisture your dehumidifier removes from the air, the more often you may have to empty the bucket (unless you are using the continuous drainage option).
-
Page 4: Package Contents
PACKAGE CONTENTS (1) Portable Dehumidifier (1) Operating Instructions (4) Casters *Pre-installed on 70 Pint Model SPECIFICATIONS Model Number DS1-30-01 DS1-45E-101 DS1-70E-101 Dehumidifying Capacity 30 Pints per day 45 Pints per day 70 Pints per day Power Consumption (Watts) 445 Watts 445 Watts 690 Watts Air Flow Volume... -
Page 5: Product Features
PRODUCT FEATURES Removes up to 30/45/70 pints (depending on model) of moisture from the air every 24 hours. This is not the bucket size. Adjustable humidistat for precise humidity control. Digital humidistat displays set humidity level and current ambient humidity level. Operates at temperatures down to 41°F. -
Page 6: Caster Installation
CASTER INSTALLATION Caster Installation is only required for the 30 and 45 pint models. (The 70 Pint model includes pre-installed casters.) To install casters on the 30 or 45 pint model, remove the bucket from the dehumidifier. (Fig. 1) Remove and open the box containing the casters from inside the bucket. (Fig. 2) Tilt the dehumidifier no more than 45⁰... - Page 7 OPERATING INSTRUCTIONS Dehumidifier must be upright for 24 hours prior to operating. This ensures that the compressor will function as intended. CONTROL PANEL OPERATING INSTRUCTIONS 1) When first operating the dehumidifier, run it in Continuous mode for 24 hours. 2) Power On and Off - Press the POWER button once to manually turn the unit on. Press the POWER button once more to turn the unit off.
- Page 8 OPERATING INSTRUCTIONS 8) Bucket Full - When the water bucket completely fills with water, the unit will automatically shut off, make an audible beep, and the Bucket Full Indicator will light up. The dehumidifier will not function until the wa- ter bucket is emptied and placed back inside the unit.
-
Page 9: Choosing A Location
CHOOSING A LOCATION A Dehumidifier operating in a basement will have little or no effect in drying out an adjacent enclosed storage area, such as a closet, unless there is adequate circulation of air in and out of the area. Do not use outdoors. -
Page 10: Continuous Drainage
CONTINUOUS DRAINAGE Garden Hose Installation Setup Water can be automatically emptied by attaching a garden hose to the continuous drainage port on the back of the dehumidifier. This will allow the unit to run continuously (depending on the selected humidity level) with- out having to empty the water bucket. -
Page 11: Maintenance
MAINTENANCE Note: Make sure power is off and the power cord is not plugged into an elec- trical outlet prior to performing any maintenance on the unit. Clean or Replace Filter - The Clean Filter indicator will illuminate every 250 hours of operation as a reminder to clean the filter. -
Page 12: Troubleshooting
TROUBLESHOOTING Problem Possible Causes Solutions Dehumidifier does not start The dehumidifier is unplugged. Make sure the dehumidifier’s plug is pushed completely into the outlet. The fuse is blown / circuit break- Check the house fuse / circuit breaker box and replace fuse or er is tripped. - Page 13 TROUBLESHOOTING Problem Possible Causes Solutions Water on the floor Hose connection may be loose. Check the hose connection. See the CONTINUOUS MODE- GARDEN HOSE INSTALLATION AND SET UP Section on Page 10. Hose is attached but not draining Disconnect the hose if using the bucket or place the hose near into a drain.
- Page 14 SELF-DIAGNOSING CODES Self- Diagnosing Description Resolution Code Compressor Overheat Protection Please call Soleus Customer Service at (877) 665-9765 Condenser Overheat Protection Humidity Sensor Malfunction For any questions or Technical Support, please call customer service (877) 665-9765...
-
Page 15: Limited Warranty
Five Year Compressor Limited Warranty Soleus N.A. warrants the accompanying Soleus Air Dehumidifier to be free of defects in material and workmanship for the applications specified in its operation instruction for a period of THREE (3) years for components and FIVE (5) years for the compressor from the date of original retail purchase in the United States.
