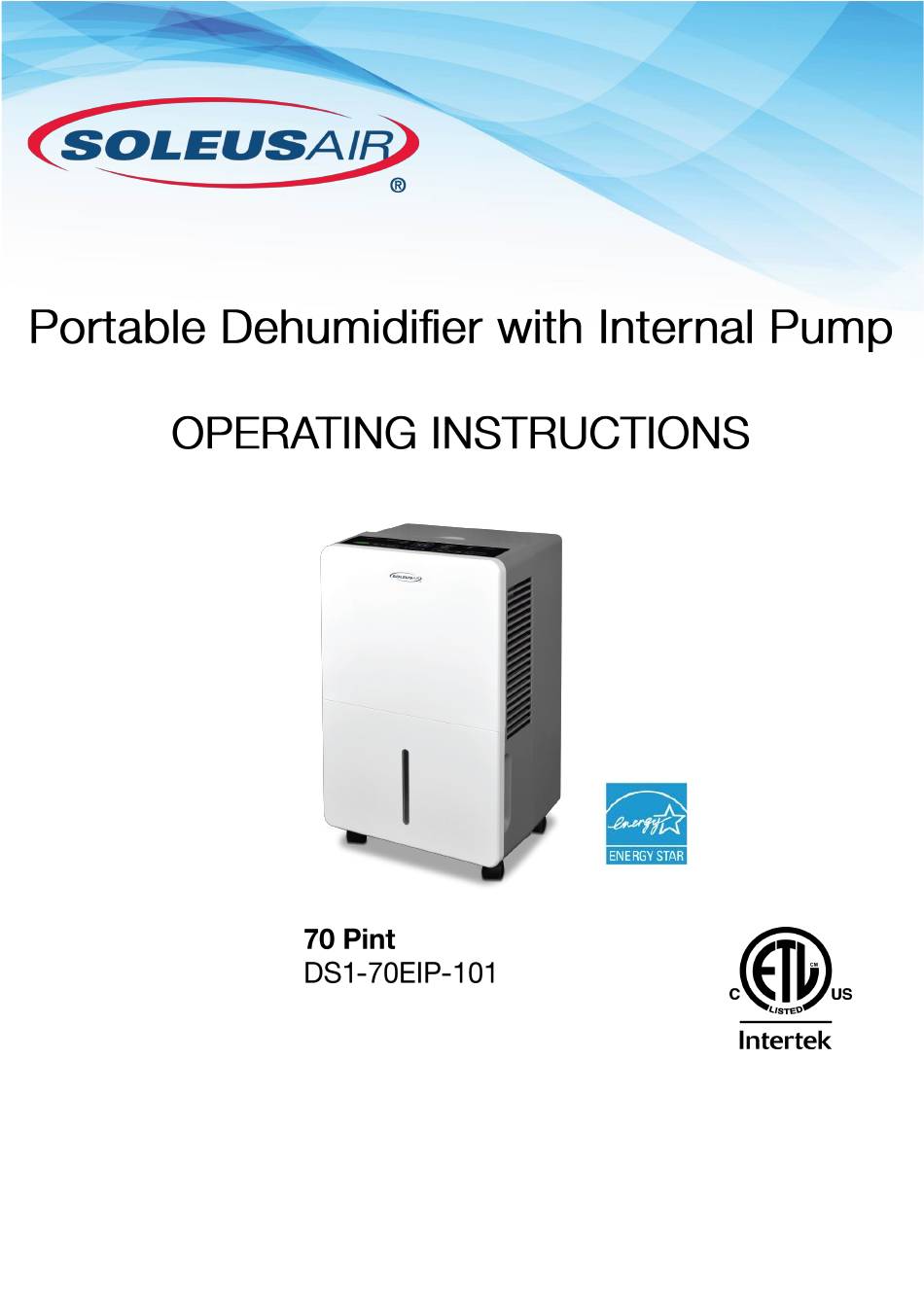

- Page 1 3058080 V.181108 Dehumidifier must be upright for 24 hours prior to operating. This ensures that the compressor will function as intended.
-
Page 2: Purchase Information
PURCHASE INFORMATION Thank you for choosing a Soleus Air Portable Dehumidifier. This Owner’s Manual will provide you with valuable information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and familiarize yourself with all the operational aspects of your new Soleus Air Portable Dehumidifier. - Page 3 DEHUMIDIFIER INFORMATION RECOMMENDED HUMIDITY LEVELS • Spring/Summer: 35% - 45% • Fall/Winter: 45% - 55% WARM AIR EXHAUST IS NORMAL During operation your dehumidifier will exhaust warm air from the side of the unit. This is normal operation. EMPTYING THE BUCKET The more moisture your dehumidifier removes from the air, the more often you may have to empty the bucket (unless you are using the continuous drainage option).
-
Page 4: Package Contents
PACKAGE CONTENTS (1) Portable Dehumidifier (1) Operating Instructions (1) Pump Drain Hose Kit—Hose, Adapter, and Gasket (Adapter included on top of bucket lid) SPECIFICATIONS Model Number DS1-70EIP-101 Dehumidifying Capacity 70 Pints per day Power Consumption (Watts) 690 Watts Air Flow Volume (High/Med/Low) 205 / 188 / 164 CFM Power Source 115 V / 60 Hz... -
Page 5: Product Features
PRODUCT FEATURES Removes up to 70 pints of moisture from the air every 24 hours. This is not the bucket size. Adjustable humidistat for precise humidity control. Digital humidistat displays set humidity level and current room humidity level. Operates at temperatures down to 41°F. Perfect for basement use in the winter. -
Page 6: Control Panel
CONTROL PANEL Child-Lock Bucket Full LED Indicator LED Indicator Clean Filter MyHome Mode Power On Fan Speed LED Indicator Timer LED Indicators LED Indicator LED Indicators LED Indicator FILTER POWER PRESET PUMP TIMER BUTTON MODE BUTTON SPEED BUTTON BUTTON INCREASE/DECREASE BUTTON BUTTON ROOM... - Page 7 OPERATING INSTRUCTIONS Dehumidifier must be upright for 24 hours prior to operating. This ensures that the compressor will function as intended. CONTROL PANEL OPERATING INSTRUCTIONS 1) When first operating the dehumidifier, run it in Continuous mode for 24 hours. 2) Power On and Off - Press the POWER button once to manually turn the unit on. Press the POWER but- ton once more to turn the unit off.
- Page 8 OPERATING INSTRUCTIONS 8) Bucket Full - When the water bucket is full of water, the unit will automatically shut off, make a beeping noise, and the Bucket Full Indicator will light up. The dehumidifier will not function until the water bucket is emptied and placed back inside the unit.
- Page 9 OPERATING INSTRUCTIONS 9) Internal Pump Mode- The internal pump allows the unit to operate without having to empty the bucket. To install the Pump Drain Hose Kit, remove the drain cap on the back of the unit. Insert the included gasket into the Drain Adapter, then force the Drain Hose onto the Drain Adapter and turn clockwise onto the garden hose nozzle on the back of the unit as pictured below.
-
Page 10: Continuous Drainage
CONTINUOUS DRAINAGE Garden Hose Installation Setup Water can be automatically emptied by attaching a hose to the continuous drainage port on the back of the de- humidifier. This will allow the unit to run continuously (depending on the selected humidity level) without having to empty the water bucket. -
Page 11: Choosing A Location
CHOOSING A LOCATION A Dehumidifier operating in a basement will have little or no effect in drying out an adjacent enclosed storage area, such as a closet, unless there is adequate circulation of air in and out of the area. Do not use outdoors. -
Page 12: Maintenance
MAINTENANCE Note: Make sure power is off and the power cord is not plugged into an elec- trical outlet prior to performing any maintenance on the unit. Clean or Replace Filter - The Clean Filter indicator will illuminate every 250 hours of operation as a reminder to clean the filter. -
Page 13: Troubleshooting
TROUBLESHOOTING Problem Possible Causes Solutions Dehumidifier does not start The dehumidifier is unplugged. Make sure the dehumidifier’s plug is pushed completely into the outlet. The fuse is blown / circuit break- Check the house fuse / circuit breaker box and replace fuse or er is tripped. - Page 14 TROUBLESHOOTING Problem Possible Causes Solutions Water on the floor Hose connection may be loose. Check the hose connection. See the CONTINUOUS MODE- GARDEN HOSE INSTALLATION AND SET UP Section on Page 10. Hose is attached but not draining Disconnect the hose if using the bucket or place the hose near into a drain.
- Page 15 SELF-DIAGNOSING CODES Self- Diagnosing Description Resolution Code Compressor Overheat Protec- Please call Soleus Customer Service at 877-665-9765 tion Condenser Overheat Protection Please call Soleus Customer Service at 877-665-9765 Humidity Sensor Malfunction Please call Soleus Customer Service at 877-665-9765 NOTE: The internal pump is designed to be used with the included plastic drain tube with drain adapter and will not operate with a garden hose or any other tubing.
-
Page 16: Limited Warranty
Five Year Compressor Limited Warranty Soleus N.A. warrants the accompanying Soleus Air Dehumidifier to be free of defects in material and workmanship for the applications specified in its operation instruction for a period of THREE (3) years for components and FIVE (5) years for the compressor from the date of original retail purchase in the United States.
