Summary of Contents for Soleus Air DME-95IP-01

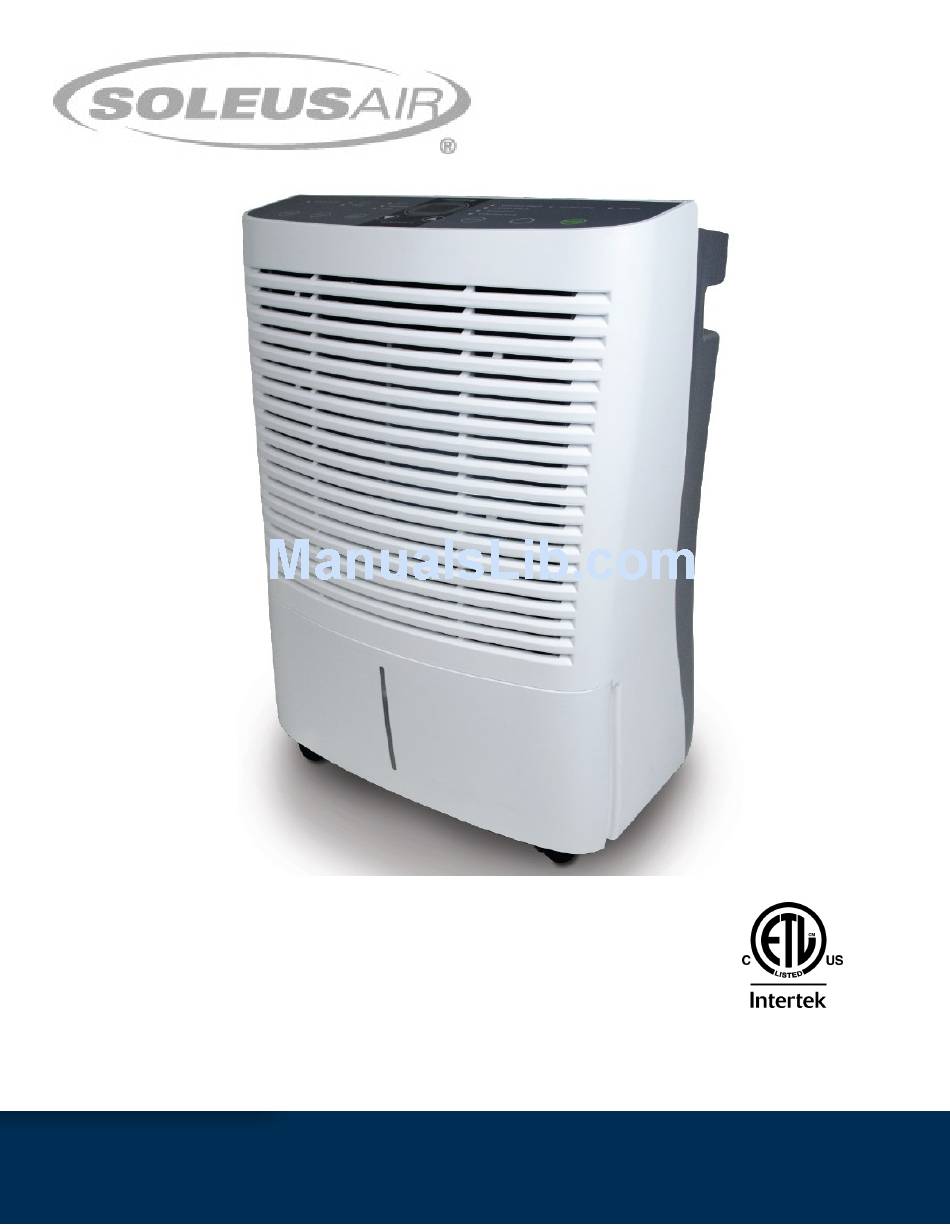

- Page 1 95 Pint Portable Dehumidifier With Internal Pump Model Number: DME-95IP-01 3092402 Operating Instructions V151214...
- Page 2 DON’T REMOVE THE STYROFOAM IN THE BUCKET! All Soleus Air dehumidifiers are equipped with a reliable Styrofoam float system. The Styrofoam located in- side the float in the bucket is essential to the bucket full system working properly. Please do not remove the...
- Page 3 FEATURES Removes up to 95 pints of moisture from the air every 24 hours. This is not the bucket size. Adjustable humidistat for precise humidity control. Digital humidistat displays set humidity level and current room humidity level. Operates at temperatures down to 41°F. Perfect for basement use in the winter.
- Page 4 Thank you for choosing a Soleus Air Portable Dehumidifier. This owner’s manual will provide you with valuable information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and familiarize yourself with all the opera- tional aspects of your new Dehumidifier.
-
Page 5: Specifications
Power consumption is measured when the fan runs at the highest speed setting. These specifications are for reference only. For actual data, please refer to the rating label on the back of the unit. Model Number DME-95IP-01 Dehumidifying Capacity 95 Pints per day Power Consumption (Watts) - Page 6 CASTER INSTALLATION Tilt the dehumidifier no more than 45⁰ and forcibly insert the casters. Make sure the ring around the caster is flush against the bottom of the dehumidifier.(Fig.1) CONTROL PANEL & DIGITAL DISPLAY Digital Humidistat Child-Lock LED Display Indicator Fan Speed MyHome MODE LED Bucket Full...
-
Page 7: Operating Instructions
OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS 1) When first operating the dehumidifier, run it in Continuous mode for 24 hours. 2) Power On and Off - Press the POWER button once to manually turn the unit on. Press the POWER button once more to turn the unit off. 3) Humidity Selection - Press the buttons to... - Page 8 OPERATING INSTRUCTIONS 6) Bucket Full - When the water bucket is full of water, the unit will automatically shut off , make a beeping noise, and the Bucket Full Indicator will light up. The dehumidifier will not function until the water bucket is emptied and placed back inside the unit.
- Page 9 OPERATING INSTRUCTIONS 7) Clean Filter - When the filter needs to be cleaned, the filter indicator will light up (after 250 hours of use). Remove the filter from the front of the unit by completely removing the dehumidifier bucket with two hands and then pulling down on the filter tab directly below the front intake grill.
- Page 10 10) Internal Pump Mode- The internal pump allows the unit to operate without having to empty the bucket. Included is a Drain Pump Hose Kit. To install the Pump Drain Hose Kit, open cover on the back of the unit. Insert the included Gasket into the Drain Adapter. Force the Drain Hose onto the Drain Adapter. Lo- cate the UPPER drain port on the back of the unit.
- Page 11 CONTINUOUS MODE—GARDEN HOSE INSTALLATION AND SETUP Water can be automatically emptied by attaching a hose to the continuous drainage port on the back of the dehumidifier. This will allow the unit to run continuously (depending on the selected humidity level) without having to empty the water bucket. To drain, simply attach a standard garden hose (not included).
-
Page 12: Choosing A Location
CHOOSING A LOCATION A Dehumidifier operating in a basement will have little no effect in drying out an adja- cent enclosed storage area, such as a closet, unless there is adequate circulation of air in and out of the area. Above Below 41°... -
Page 13: Troubleshooting
TROUBLESHOOTING Problem Possible Causes Solutions Dehumidifier does not start The dehumidifier is unplugged. Make sure the dehumidifier’s plug is pushed completely into the outlet. The fuse is blown / circuit Check the house fuse / circuit breaker box and replace fuse or breaker is tripped. - Page 14 SELF-DIAGNOSING CODES Self- Diagnosing Description Resolution Code Humidity Sensor Malfunction Please call Soleus Customer Service at 888-8-SOLEUS. Evaporator Sensor Malfunction Please call Soleus Customer Service at 888-8-SOLEUS. Compressor Sensor Malfunction Please call Soleus Customer Service at 888-8-SOLEUS. Compressor Overheat Protection Please call Soleus Customer Service at 888-8-SOLEUS.
- Page 15 One Year Limited Warranty Soleus Home Comfort warrants the accompanying Soleus Air Dehumidifier to be free of defects in material and work- manship for the applications specified in its operation instruction for a period of ONE (1) year from the date of original retail purchase in the United States.
