Direct IP Idis DC-T4811WRX Quick Manual page 6

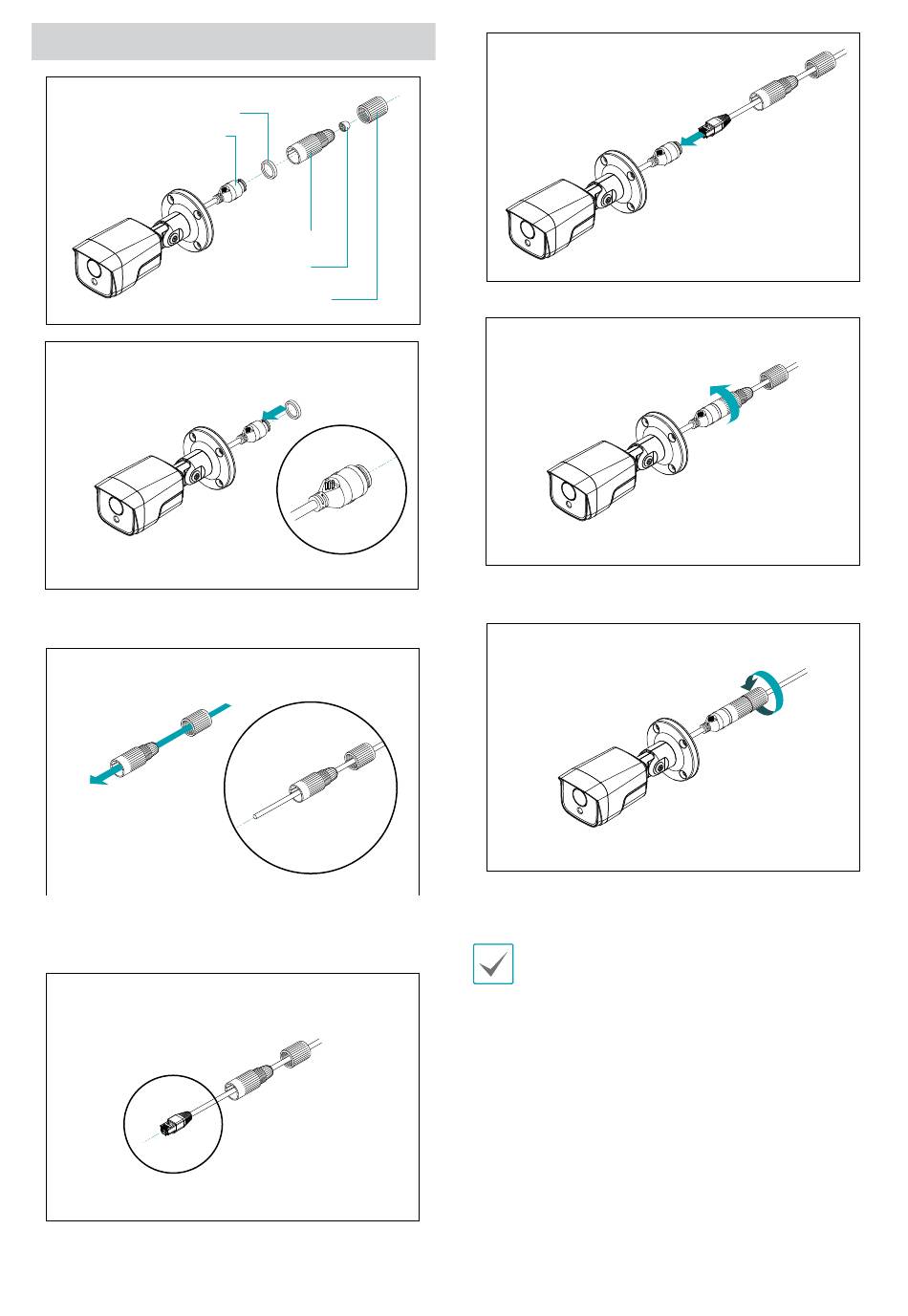

Waterproof Cable Installation
RJ45 waterproof rubber ring
RJ45 modular jack
RJ45 waterproof rubber ring
RJ45 modular jack
RJ45 waterproof rubber ring
RJ45 modular jack
1
1
1
1
Insert a round rubber ring (silicone rubber) into
2
the RJ45 jack.
2
2
3
2
Insert the network cable into the waterproof
cap, rubber bushing, and waterproof cap body
3
in order.
3
4
4
3
Plug in the network cable.
4
6
RJ45 connector protect cover
cable waterproof rubber ring
(The waterproof rubber ring is fastened to the connector protect cover.)
RJ45 connector protect cover
RJ45 connector back cover
cable waterproof rubber ring
(The waterproof rubber ring is fastened to the connector protect cover.)
RJ45 connector protect cover
RJ45 connector back cover
cable waterproof rubber ring
(The waterproof rubber ring is fastened to the connector protect cover.)
RJ45 connector back cover
4
4
4
4
Connect the plug terminal to the RJ45 jack.
5
5
5
5
6
Push the waterproof cap body and cap into the
6
RJ45 jack and rotate it.
6
6
Lock the waterproof cap into the waterproof cap
body.
Not pulling the cable back may cause water to seep in
and damage the product.
Quick Guide
