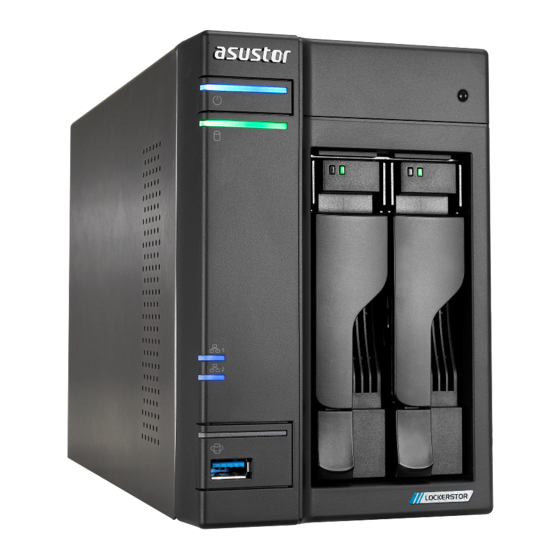

- Page 1 Quick Installation Guide Applicable Models AS6702T/ AS6704T/AS6706T Ver. 4.0.0108(2022-1-8) Ver.2.3.0903 (2015-3-2)
-
Page 2: Table Of Contents
Table of Contents Notices ..............................3 Safety Precautions ..........................4 1. Package Contents ..........................5 2. Optional Accessories .......................... 7 3. Hardware Installation Guide ......................8 Tools Needed for Hard Disk Installation ..................... 8 Hard Disk Installation .......................... 8 Securing the Power Cord ........................10 Connecting and Powering on the NAS .................... -
Page 3: Notices
Notices Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules. -
Page 4: Safety Precautions
Safety Precautions The following safety precautions will increase the life of the NAS. Follow all precautions and instructions. Electrical Safety Unplug this product from the power source before cleaning. Use only the bundled power adapter. Using other power adapters may damage your device. Ensure that you plug the power adapter to the correct power input rating. -
Page 5: Package Contents
1. Package Contents Applicable Models : AS6702T, AS6704T, AS6706T Model Name AS6702T AS6704T AS6706T Power Cord Adapter RJ45 Network Cable Power Cord Bracket Screws for use with 3.5”... - Page 6 Screws for use with 2.5” Quick Installation Guide...
-
Page 7: Optional Accessories
2. Optional Accessories The items below may be purchased from the ASUSTOR Accessories Store http://shop.asustor.com. -
Page 8: Hardware Installation Guide
Phillips head screwdriver At least one 2.5 or 3.5 inch SATA hard disk. (For a list of compatible hard disks, please see http://www.asustor.com/service/hd?id=hd) Hard Disk Installation 1. Press the button on the lower portion of the hard disk tray to release the latch. - Page 9 3.5-inch hard disks: Place the hard disk into the disk tray, making sure that the mounting holes on the sides of the hard disk and disk tray are lined up. Secure the drive with four screws. 2.5-inch hard disks and SSD hard disks: Place the hard disk into the area of the disk tray outlined in red (see picture below).
-
Page 10: Securing The Power Cord
NAS is moved. 1. Take the cord bracket out of the accessories box. 2. Attach the bracket to the power cord as shown in the graphic below. 3. Remove the fan screw by unscrewing it counter-clockwise. AS6702T AS6704T... -
Page 11: Connecting And Powering On The Nas
4. Position the bracket over the hole for the removed fan screw. Secure the bracket in place by replacing the fan screw. AS6702T AS6704T Connecting and Powering on the NAS Connect the NAS to its power supply. Connect the NAS to your router, switch or hub using an Ethernet cable. -
Page 12: Upgrading System Memory
Your NAS and memory modules use high precision components and electronic connector technology. To avoid invalidation of the warranty during your product warranty period, we recommend that: ü Memory for AS67 series devices may be purchased from local dealers or the online ASUSTOR Accessories Store (http://shop.asustor.com). - Page 13 • ASUSTOR does not guarantee that third party memory modules will work in your NAS. • Be sure to turn off your NAS and peripherals and disconnect all attachments and connection cables before adding or removing memory modules. • To prevent damage from electrostatic discharge to memory modules, follow the instructions below: ü...
- Page 14 3. Use a screwdriver to loosen the three screws found on the rear of the NAS as shown in the illustration. AS6702T AS6704T AS6706T 4. Grip the cover from both sides with two hands and then gently push it back to remove it from the chassis.
-
Page 15: Installing M.2 Ssd
2. Reconnect all cables including the power cord and then start up the NAS. AS6702T AS6704T AS6706T Installing M.2 SSD M.2 Installation Precautions The AS6702T, AS6704T and AS6706T provide two M.2 SSD slots. For maximum compatibility, click here for a list of compatible M.2 SSDs. - Page 16 Removing the Cover 1. Shutdown the NAS by selecting [Shut down] from the ADM User Menu. 2. Disconnect all cables and devices connected to the NAS including the power cord. AS6702T AS6704T AS6706T 3. Use a screwdriver to loosen the three screws found on the rear of the NAS as shown in the illustration.
- Page 17 4. Grip the cover from both sides with two hands and then gently push it back to remove it from the chassis. Installing M.2 SSDs 1. For the best possible experience, install SSDs in the order as shown in the pictures below. AS6702T AS6704T AS6706T 2.
- Page 18 3. Repeat the process for all other M.2 SSDs. AS6702T AS6704T AS6706T Replacing the Cover Replace the cover and tighten the three screws that were removed previously. AS6702T AS6704T AS6706T Reconnect all cables including the power cord and then start up the NAS.
-
Page 19: Installing A Network Card
Installing a Network Card Installation Precautions 1. Your AS6704T and AS6706T supports the AS-T10G2 10-Gigabit Ethernet network card. Installation of the AS-T10G2 requires use of the included bracket designed for the Lockerstor Gen2 series of NAS devices. 2. Your NAS must remain powered on for the duration of the switch between PCIe mode and M.2 mode. Interrupting the power while your NAS is switching PCIe modes may result in your NAS becoming inoperable. - Page 20 2. Disconnect all cables and devices connected to the NAS including the power cord. AS6704T AS6706T 3. Use a screwdriver to loosen the three screws found on the rear of the NAS as shown in the illustration. AS6704T AS6706T 4. Grip the cover from both sides with two hands and then gently push it back to remove it from the chassis.
- Page 21 Installing a Network Card To remove the M.2 card, undo the screws as shown below. AS6704T AS6706T Gently pull the M.2 card from the PCIe slot as shown below. AS6704T AS6706T Undo the two screws that hold the bracket for the M.2 card in place. AS6704T AS6706T...
- Page 22 Lift the bracket out of the NAS. AS6704T AS6706T Remove both screws in the rear of the NAS and placeholder bracket. AS6704T AS6706T Unscrew and remove full-height bracket from AS-T10G2 NIC.
- Page 23 Attach NAS-specific bracket to the AS-T10G2 and fasten screws. Gently insert the network card into the PCIe slot of your NAS. AS6704T AS6706T Fasten the network card to the NAS with screws. AS6704T AS6706T...
- Page 24 10. Follow these instructions in reverse order to reinstall the M.2 card. Replacing the Cover Replace the cover and tighten the three screws that were removed previously. AS6704T AS6706T Reconnect all cables including the power cord and then start up the NAS. AS6704T AS6706T...
-
Page 25: Software Installation Guide
4. Software Installation Guide There are 4 different installation methods that you can choose from. You can go to the download section of the ASUSTOR website (http://www.asustor.com/service/downloads) to download the latest software. Download Center Installation Windows Users After ASUSTOR Control Center has been installed, it will automatically begin to scan your network for ASUSTOR NAS devices. - Page 26 Mac Users After ASUSTOR Control Center has been installed, it will automatically begin to scan your network for ASUSTOR NAS devices. Select your NAS from the list and follow the installation wizard’s instructions to complete the configuration process.
-
Page 27: Web Installation
Web Installation If you already know your NAS’s current IP address, you can open up a web browser and enter in your NAS’s IP address (for example: http://192.168.1.168:8000) to begin initialization. Please follow the instructions from the installation wizard to complete the configuration process. -
Page 28: Installation Using A Mobile Device
Installation Using a Mobile Device Search for “AiMaster” in Google Play or the Apple App Store. You can also scan the QR codes provided below. Download and install the AiMaster mobile app to your mobile device. AiMaster for Android AiMaster for iOS Make sure that your mobile device is connected to the same local network that your NAS is connected to. - Page 29 Select your NAS from the list that appears.
-
Page 30: Installation Using The Lcd Display
Select [Start Initialization] to begin installation. Follow the prompts and instructions to complete the configuration process. Installation Using the LCD Display • The LCD display will ask you whether or not you want initialize the NAS once it has detected that the NAS has not yet started to initialize. - Page 31 • Initialization is complete when the NAS’s IP address is shown on the LCD display. NOTE: The password for the “admin” account will be set to “admin”. • This installation method is only suitable for use on models with LCD Displays AS6704T and AS6706T.
-
Page 32: Appendix
5. Appendix LED Indicators AS6702T AS6704T AS6706T Power LED Indicator System Status LED Indicator Network LED Indicator USB LED Indicator Hard Disk LED Indicator Color Description State Indicator Steadily lit Power on Blue Flashing Waking from sleep mode (S3) Power... -
Page 33: Rear Panel
Flashing Data access in progress Flashes every 10 seconds Hibernation mode Steadily lit Hard disk abnormality Rear Panel AS6702T AS6704T AS6706T Power Supply Unit 2.5G RJ45 Ports DC Input USB 3.2 Gen 2 Ports K-Lock HDMI Port System Fan PCI Express 3.0 Expansion Slot... - Page 34 1. [Up] Button 2. [Down] Button 3. [Back] Button 4. [Confirm] Button After powering on the NAS, you will be able to see the NAS name and IP address on the LCD panel. The panel will turn off automatically after a few seconds. You can use the panel to configure settings and check system information. The main menu consists of the following submenus: 1.
- Page 35 2.2.1 IP Address 2.2.2 Subnet Mask 3. Storage In the Storage submenu you can use the [Up], [Down] and [Confirm] buttons to view the volume information listed below. 3.1. Total Space: The total storage capacity of the volume. 3.2. Used Space: The amount of space currently in use on the volume. 3.3.
-
Page 36: Shutting Down Your Nas
6.2. Network Setting 6.2.1. LAN 6.2.1.1. DHCP Pressing the [Confirm] button will bring up the “Confirm Change” option. You will be able to select between “Yes” and “No”. 6.2.1.2. Static address 6.2.1.2.1. IP Address Press the [Up] or [Down] buttons to cycle through numbers. Press the [Confirm] button to confirm the number of your choice and to move on to the next number. -
Page 37: Troubleshooting
Troubleshooting Q: Why can’t I detect my ASUSTOR NAS using ASUSTOR Control Center? A: If you are having trouble detecting your NAS using ASUSTOR Control Center, please do the following: 1. Please check your network connection: Make sure that your computer and your NAS are part of the same local area network. - Page 38 Right-click on [Local Area Connection] and select [Properties]. Under the [Networking] tab select [Internet Protocol Version 4 (TCP/IPv4)] and click on [Properties].
- Page 39 Under the [General] tab select the [Use the following IP address] radio button. Set the [IP address] to 169.254.1.10 and the [Subnet mask] to 255.255.0.0 and then click on [OK].
- Page 40 Open up ASUSTOR Control Center to scan for your NAS.
- Page 41 4. If the above mentioned procedures have not managed to solve your problem, please contact your local ASUSTOR dealer or ASUSTOR Customer Service http://support.asustor.com.You are also encouraged to browse through the ASUSTOR Knowledgebase.
Need help?
Do you have a question about the AS6702T and is the answer not in the manual?
Questions and answers
how can i install 2 m.2NVMe drives as raid 1 and additional m.2NVME as cache
To install two M.2 NVMe drives as RAID 1 and an additional M.2 NVMe as cache on the ASUSTOR AS6702T, follow these steps:
1. Install the M.2 NVMe Drives
- Insert two M.2 NVMe drives into the available slots for RAID 1.
- Insert the additional M.2 NVMe drive into another slot for caching.
2. Access ADM (ASUSTOR Data Master)
- Log in to the ASUSTOR NAS interface.
- Open "Storage Manager."

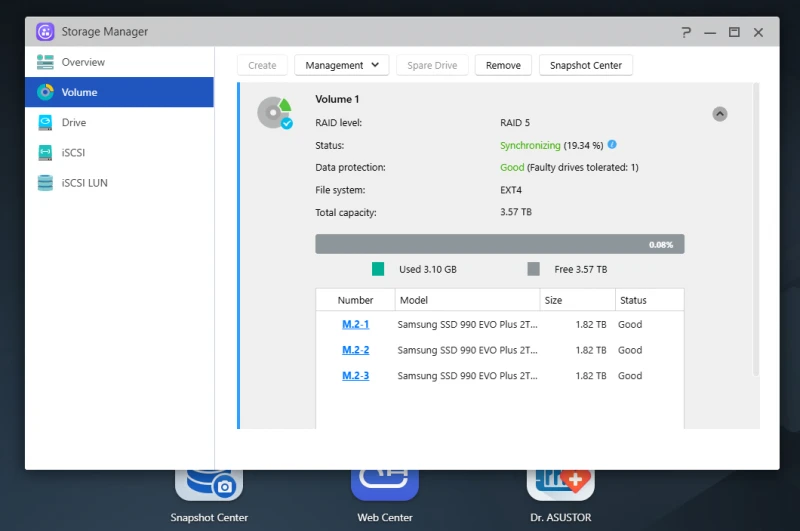

3. Create RAID 1 for the Two M.2 NVMe Drives
- Go to the "Volume" section and select “Create.”
- Choose the two M.2 NVMe drives and select RAID 1 as the configuration.
- Follow the prompts to complete the setup.
4. Set Up the Additional M.2 NVMe as Cache
- In "Storage Manager," go to the "SSD Cache" tab.
- Select the additional M.2 NVMe drive.
- Configure it as a read or read/write cache based on your needs.
- Apply the settings.
5. Verify Setup
- Ensure the RAID 1 volume is active.
- Confirm the SSD cache is functioning as expected.
This setup allows data redundancy with RAID 1 while using an extra NVMe drive for improved performance.
This answer is automatically generated
