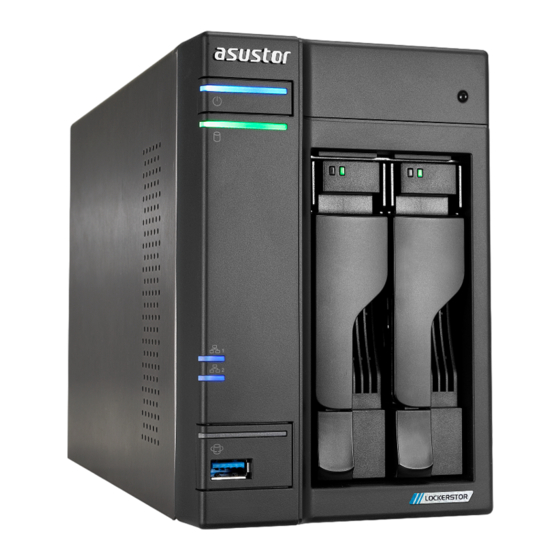

- Page 1 Memory Installation Guide For ASUSTOR AS67 Series NAS Ver. 4.0.0116...
- Page 2 1.2. Installation Guide ......................4 Removing the Cover ....................4 2.1. Installing Memory ....................5 2.2. Replacing the Cover ....................5 2.3. Appendix ........................7 Troubleshooting ....................7 3.1. Contact ASUSTOR Technical Support ................. 7 3.2. Page 2 of 7...
- Page 3 ASUSTOR NAS Memory Installation Guide 1.1. Notes and Precautions All AS67 Series NAS devices support up to 16GB of memory. Before adding or removing memory modules, please read the following precautions thoroughly. • Your NAS and memory modules use high precision components and electronic connector technology.
- Page 4 ASUSTOR NAS Memory Installation Guide 2.1. Removing the Cover l Shutdown the NAS by selecting [Shut down] from the ADM User Menu. l Disconnect all cables and devices connected to the NAS including the power cord. AS6702T AS6704T AS6706T l Use a screwdriver to loosen the three screws found on the rear of the NAS as shown in the illustration.
- Page 5 ASUSTOR NAS Memory Installation Guide l Grip the cover from both sides with two hands and then gently push it back to remove it from the chassis. 2.2. Installing Memory l Upon opening the NAS, RAM slots can be found on the motherboard on the left hand side of the NAS.
- Page 6 ASUSTOR NAS Memory Installation Guide AS6702T AS6704T AS6706T l Reconnect all cables including the power cord and then start up the NAS. AS6702T AS6704T AS6706T Page 6 of 7...
- Page 7 If your NAS still does not operate normally, please remove the newly installed memory module, and then restart the NAS to see if it is able to operate normally. If the previous steps have not solved your problem, please contact your local dealer or ASUSTOR customer service.
