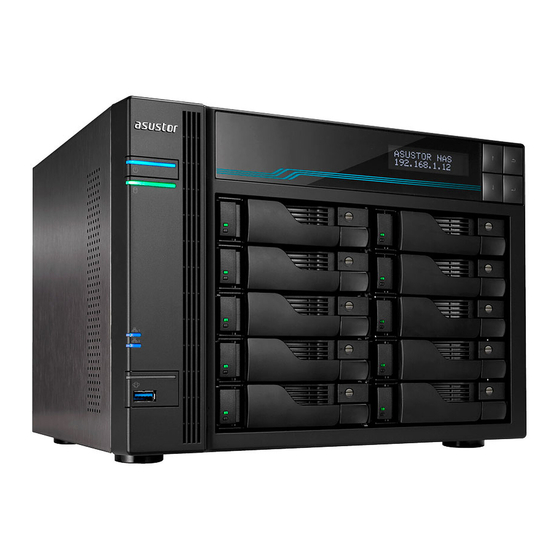

- Page 1 Memory Installation Guide For the ASUSTOR Lockerstor 10 Pro NAS Ver.1.0.4.1016...
-
Page 2: Table Of Contents
2. Installation Guide ......................4 2.1. Removing the Cover ....................4 2.2. Installing Memory ....................5 2.3. Replacing the Cover ....................10 3. Appendix ......................... 11 3.1. Troubleshooting ....................11 3.2. Contact ASUSTOR Technical Support ................ 11 Page 2 of 11... -
Page 3: Introduction
You should not touch connectors or open the memory module compartment cover. ASUSTOR is not responsible for damage that occurs as a result of your failure to follow the instructions intended for your ASUSTOR product. ASUSTOR is not responsible for any product from which the... -
Page 4: Installation Guide
ASUSTOR NAS Memory Installation Guide 2.1. Removing the Cover Shutdown the NAS by selecting [Shut down] from the ADM User Menu. Wait for unit to power off completely. Disconnect all cables and devices connected to the NAS including the power cable. -
Page 5: Installing Memory
ASUSTOR NAS Memory Installation Guide Grip the cover from both sides with two hands and then gently push towards the rear of the NAS to remove it from the chassis. 2.2. Installing Memory Upgrading RAM on rear side of motherboard ... - Page 6 ASUSTOR NAS Memory Installation Guide Gently push the SO-DIMM module down until both latches click into place. RAM should be flush with the motherboard. Upgrading RAM on front side of the motherboard Disconnect power cable and fan cables.
- Page 7 ASUSTOR NAS Memory Installation Guide Remove screws. Remove case screws on the left and right. Remove bottom case screws. Page 7 of 11...
- Page 8 ASUSTOR NAS Memory Installation Guide Remove screw holding in backplane and slide left to remove. Remove ATX power cables from motherboard. Undo M.2 screw and gently lift M.2 assembly from motherboard. Page 8 of 11...
- Page 9 ASUSTOR NAS Memory Installation Guide Undo motherboard screws. Gently lift motherboard from chassis in the direction as indicated by the arrow. Page 9 of 11...
-
Page 10: Replacing The Cover
ASUSTOR NAS Memory Installation Guide Place motherboard on a non-conductive static-free surface, install RAM as indicated by undoing both clips and inserting RAM until clips close automatically. Ensure notch on SO-DIMM module aligns with slot. 2.3. Replacing the Cover ... -
Page 11: Appendix
4. If your NAS still does not operate normally, please remove the newly installed memory module, and then restart the NAS to see if it boots up normally. 5. If all previous steps have not solved your problem, please contact your local dealer or ASUSTOR customer service.
