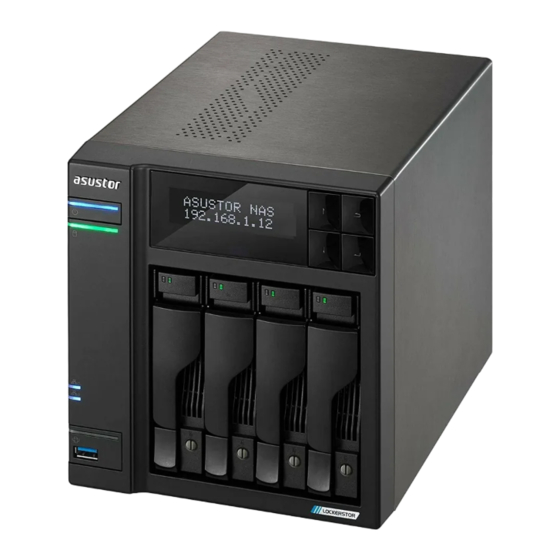

- Page 1 Network Card Installation Guide For ASUSTOR AS6704T/AS6706T NAS Ver. 4.0.0116...
-
Page 2: Table Of Contents
1.1. Parts and Tools Needed ....................4 1.2. Removing the Cover ....................4 1.3. Installing a Network Card....................5 1.4. Replacing the Cover ....................8 2. Appendix ........................10 2.1. Troubleshooting ....................... 10 2.2. Contact ASUSTOR Technical Support ................10 Page 2 of 10... -
Page 3: Installation Guide
ASUSTOR NAS Network Card Installation Guide 1. To add a 10-Gigabit Ethernet card, install ASUSTOR NAS PCIe Mode Switcher from App Central. Select 10G NIC and press apply. Page 3 of 10... -
Page 4: Parts And Tools Needed
ASUSTOR NAS Network Card Installation Guide 3. Click OK After confirmation, your NAS will shut down. After shutting down, you will now be able to install the 10-Gigabit Ethernet card after disconnecting your NAS from mains electricity. 1.1. Parts and Tools Needed Phillips head screwdriver 1.2. -
Page 5: Installing A Network Card
ASUSTOR NAS Network Card Installation Guide Grip the cover from both sides with two hands and then gently push it back to remove it from the chassis. 1.3. Installing a Network Card To remove the M.2 card, undo the screws as shown below. - Page 6 ASUSTOR NAS Network Card Installation Guide Undo the two screws that hold the bracket for the M.2 card in place. AS6704T AS6706T Lift the bracket out of the NAS. AS6704T AS6706T Remove both screws in the rear of the NAS and placeholder bracket.
- Page 7 ASUSTOR NAS Network Card Installation Guide Unscrew and remove full-height bracket from AS-T10G2 NIC. Installation of the AS-T10G2 requires use of the included bracket designed for the Lockerstor Gen2 series of NAS devices. Attach NAS-specific bracket to the AS-T10G2 and fasten screws.
-
Page 8: Replacing The Cover
ASUSTOR NAS Network Card Installation Guide Fasten the network card to the NAS with screws. AS6704T AS6706T 10. Follow these instructions in reverse order to reinstall the M.2 card. 1.4. Replacing the Cover Replace the cover and tighten the three screws that were removed previously. - Page 9 ASUSTOR NAS Network Card Installation Guide Reconnect all cables including the power cord and then start up the NAS. AS6704T AS6706T Page 9 of 10...
-
Page 10: Appendix
If your NAS still does not operate normally, please remove the newly installed network card, and then restart the NAS to see if it is able to operate normally. If the previous steps have not solved your problem, please contact your local dealer or ASUSTOR customer service.
