Quick Installation Guide
Applicable Models
AS6804T / AS6806T / AS6808T / AS6810T
Ver. 5.0.0815
Ver.2.3.0903 (2015-3-2)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AS6804T and is the answer not in the manual?

Questions and answers

Summary of Contents for ASUSTOR AS6804T

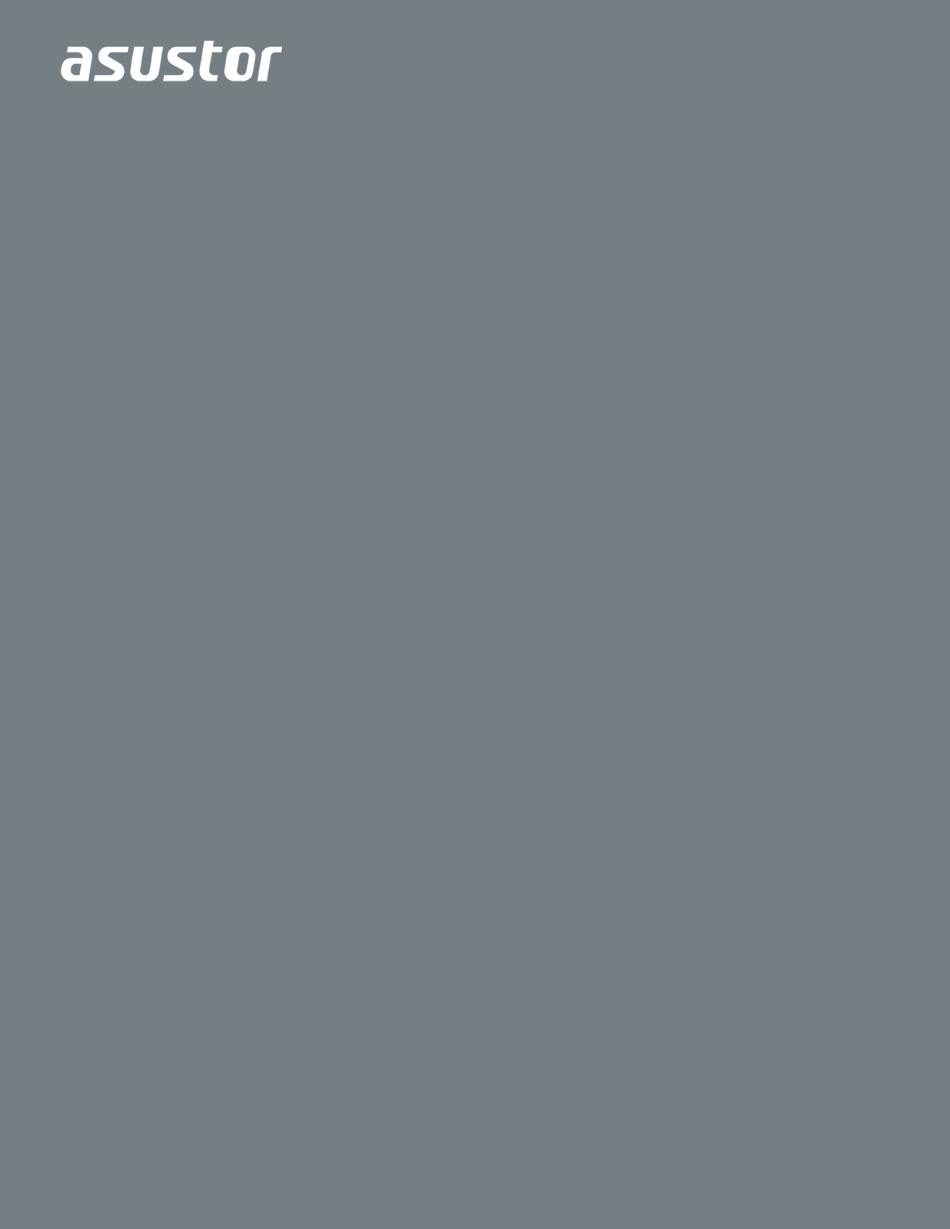

  • Page 1 Quick Installation Guide Applicable Models AS6804T / AS6806T / AS6808T / AS6810T Ver. 5.0.0815 Ver.2.3.0903 (2015-3-2)
  • Page 2: Table Of Contents

    Table of Contents NOTICES ..................................3 SAFETY PRECAUTIONS ..............................4 1. PACKAGE CONTENTS ..............................5 2. OPTIONAL ACCESSORIES ............................7 3. HARDWARE INSTALLATION GUIDE ..........................8 ........................... 8 OOLS EEDED FOR NSTALLATION ................................8 NSTALLATION ................................ 11 ECURING THE OWER NAS .............................
  • Page 3: Notices

    Notices Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules.
  • Page 4: Safety Precautions

    Safety Precautions The following safety precautions will increase the life of the NAS. Follow all precautions and instructions. Electrical Safety Unplug this product from the power source before cleaning. Use only the bundled power adapter. Using other power adapters may damage your device. Ensure that you plug the power adapter to the correct power input rating.
  • Page 5: Package Contents

    1. Package Contents Applicable Models : AS6804T, AS6806T, AS6808T, AS6810T Model Name AS6804T AS6806T AS6808T AS6810T Power Cord Adapter RJ45 Network Cable Power Cord Bracket Screws for use with 3.5” HDD Screws for use with 2.5” HDD...
  • Page 6 Quick Installation Guide...
  • Page 7: Optional Accessories

    2. Optional Accessories The items below may be purchased from the ASUSTOR Accessories Store http://shop.asustor.com.
  • Page 8: Hardware Installation Guide

    At least one 2.5 or 3.5 inch SATA hard disk. (For a list of compatible hard disks, please see http://www.asustor.com/service/hd?id=hd) Hard Disk Installation 1. Press the button on the lower portion of the hard disk tray to release the latch. AS6804T AS6806T AS6808T AS6810T 2.
  • Page 9 Secure the disk tray in place by pushing down on the latch. The latch should close easily and snap in with an audible ‘click’. Please make sure that the disk tray is pushed all the way into the disk bay before attempting to secure the latch. AS6804T AS6806T...
  • Page 10 5. Once the latch is secure, you can lock it in place using the disk tray lock. Using a flathead screwdriver, turn the lock counterclockwise to lock the latch mechanism. Turning the lock clockwise will unlock it. AS6804T AS6806T AS6808T...
  • Page 11: Securing The Power Cord

    NAS is moved. 1. Take the cord bracket out of the accessories box. 2. Attach the bracket to the power cord as shown in the graphic below. 3. Remove the fan screw by unscrewing it counter-clockwise. AS6804T...
  • Page 12 4. Position the bracket over the hole for the removed fan screw. Secure the bracket in place by replacing the fan screw. AS6804T...
  • Page 13: Connecting And Powering On The Nas

    Connecting and Powering on the NAS Connect the NAS to its power supply. Connect the NAS to your router, switch or hub using an Ethernet cable. AS6804T AS6806T AS6808T / AS6810T Press and hold down the power button for 1 – 2 seconds until the blue power LED indicator is lit. This indicates that the NAS is now powered on.
  • Page 14: Upgrading System Memory

    Your NAS and memory modules use high precision components and electronic connector technology. To avoid invalidation of the warranty during your product warranty period, we recommend that: ✓ Memory for AS68 series devices may be purchased from local dealers or the online ASUSTOR Accessories Store (http://shop.asustor.com).
  • Page 15: Removing The Cover

    Removing the Cover 1. Shutdown the NAS by selecting [Shut down] from the ADM User Menu. 2. Disconnect all cables and devices connected to the NAS including the power cord. AS6804T AS6806T AS6808T / AS6810T 3. Use a screwdriver to loosen the three screws found on the rear of the NAS as shown in the illustration.
  • Page 16: Installing Memory

    2. Gently push the DIMM down until both latches click into place. RAM should be flush with the motherboard. Replacing the Cover 1. Replace the cover and tighten the three screws that were removed previously. AS6804T AS6806T AS6808T / AS6810T...
  • Page 17 2. Reconnect all cables including the power cord and then start up the NAS. AS6804T AS6806T AS6808T / AS6810T...
  • Page 18: Installing M.2 Ssd

    Parts and Tools Needed Phillips head screwdriver Removing the Cover 1. Shutdown the NAS by selecting [Shut down] from the ADM User Menu. 2. Disconnect all cables and devices connected to the NAS including the power cord. AS6804T AS6806T AS6808T / AS6810T...
  • Page 19 3. Use a screwdriver to loosen the three screws found on the rear of the NAS as shown in the illustration. AS6804T AS6806T AS6808T / AS6810T 4. Grip the cover from both sides with two hands and then gently push it back to remove it from the chassis.
  • Page 20 3. Repeat the process for all other M.2 SSDs. AS6804T AS6806T AS6808T / AS6810T Replacing the Cover 1. Replace the cover and tighten the three screws that were removed previously. AS6804T AS6806T AS6808T / AS6810T 2. Reconnect all cables including the power cord and then start up the NAS.
  • Page 21: Installing A Network Card

    Installing a Network Card 1. To add a 10-Gigabit Ethernet card, install ASUSTOR NAS PCIe Mode Switcher from App Central. 2. Select 10G NIC and press apply. Please shut down the NAS after automatic restart and unplug the power plug before replacing the PCIe card.
  • Page 22 Phillips head screwdriver Removing the Cover 1. Disconnect all cables and devices connected to the NAS including the power cord. AS6804T AS6806T AS6808T / AS6810T Note. The PCIe socket inside your NAS does not support hot swap functionality. Please shut down and unplug your.
  • Page 23 3. Grip the cover from both sides with two hands and then gently push it back to remove it from the chassis. Installing a Network Card 1. To remove the M.2 card, undo the screws as shown below. AS6804T AS6806T AS6808T / AS6810T 2.
  • Page 24 4. Lift the bracket out of the NAS. AS6804T AS6806T 5. Remove both screws in the rear of the NAS and placeholder bracket. AS6804T AS6806T AS6808T / AS6810T 6. Unscrew and remove full-height bracket from AS-T10G2 NIC. Installation of the...
  • Page 25 7. Attach NAS-specific bracket to the AS-T10G2 and fasten screws. Gently insert the network card into the PCIe slot of your NAS. AS6804T AS6806T AS6808T / AS6810T 9. Fasten the network card to the NAS with screws. AS6804T AS6806T AS6808T / AS6810T...
  • Page 26 Replacing the Cover 1. Replace the cover and tighten the three screws that were removed previously. AS6804T AS6806T AS6808T / AS6810T 2. Reconnect all cables including the power cord and then start up the NAS. AS6804T AS6806T AS6808T / AS6810T...
  • Page 27: Software Installation Guide

    4. Software Installation Guide There are 4 different installation methods that you can choose from. You can go to the download section of the ASUSTOR website (http://www.asustor.com/service/downloads) to download the latest software. Download Center Installation Windows Users After ASUSTOR Control Center has been installed, it will automatically begin to scan your network for ASUSTOR NAS devices.
  • Page 28: Mac Users

    Mac Users After ASUSTOR Control Center has been installed, it will automatically begin to scan your network for ASUSTOR NAS devices. Select your NAS from the list and follow the installation wizard’s instructions to complete the configuration process.
  • Page 29: Web Installation

    Web Installation If you already know your NAS’s current IP address, you can open up a web browser and enter in your NAS’s IP address (for example: http://192.168.1.168:8000) to begin initialization. Please follow the instructions from the installation wizard to complete the configuration process.
  • Page 30: Installation Using A Mobile Device

    Installation Using a Mobile Device Search for “AiMaster” in Google Play or the Apple App Store. You can also scan the QR codes provided below. Download and install the AiMaster mobile app to your mobile device. Make sure that your mobile device is connected to the same local network that your NAS is connected to. Next, open AiMaster and then select the icon from the toolbar at the top of the screen.
  • Page 31 Select your NAS from the list that appears. Select [Start Initialization] to begin installation. Follow the prompts and instructions to complete the configuration process.
  • Page 32: Installation Using The Lcd Display

    Installation Using the LCD Display • The LCD display will ask you whether or not you want initialize the NAS once it has detected that the NAS has not yet started to initialize. • Please use the "↵” button found on the right side of the LCD display to confirm that you want to initialize the NAS. The system will now start the initialization process.
  • Page 33: Appendix

    5. Appendix LED Indicators AS6804T AS6806T AS6808T AS6810T Power LED Indicator System Status LED Indicator Network LED Indicator USB LED Indicator Hard Disk LED Indicator Color Description State Indicator Steadily lit Power on Blue Flashing Waking from sleep mode (S3)
  • Page 34: Front Panel

    Flashes every 10 seconds Hibernation mode Steadily lit Hard disk abnormality Front Panel AS6804T AS6806T AS6808T AS6810T HDD-8 Power Button HDD-3 HDD-9 One touch backup Button HDD-4 HDD-10 USB 3.2 Gen 2 Port HDD-5 HDD-6 HDD-1 HDD-7 HDD-2...
  • Page 35: Rear Panel

    Rear Panel AS6804T Reset Button 10G RJ45 Ports K-Lock USB 4 Ports 5G RJ45 Ports PCI Express 4.0 Expansion Slot USB 3.2 Gen 2 Ports DC Input System Fan AS6806T AS6808T / AS6810T Reset Button 10G RJ45 Ports PCI Express 4.0 Expansion Slot...
  • Page 36: Operating The Lcd Panel

    Operating the LCD Panel You can use the LCD panel to configure system settings and check system information. The buttons located on the right side of the LCD panel can be used to navigate through its menus. Please see the graphic below for a description of each button.
  • Page 37 2.1. LAN 2.1.1 IP Address 2.1.2 Subnet Mask 2.2 WAN 2.2.1 IP Address 2.2.2 Subnet Mask 3. Storage In the Storage submenu you can use the [Up], [Down] and [Confirm] buttons to view the volume information listed below. 3.1. Total Space: The total storage capacity of the volume. 3.2.
  • Page 38 6.1. Server Name Press the [Up] or [Down] buttons to cycle through letters and numbers. Press the [Confirm] button to confirm the character of your choice and to move on to the next character. Repeat this process until all of the characters in the name are configured.
  • Page 39: Shutting Down Your Nas

    Shutting Down Your NAS Confirm the function settings for the power button as shown in the graphic below. When the power button is held down for 1.5 seconds you can decide whether to shut down the NAS or have it entered into sleep mode. This setting may be access from within ADM by selecting: [Settings]→[Hardware] →...
  • Page 40: Troubleshooting

    Troubleshooting Q: Why can’t I detect my ASUSTOR NAS using ASUSTOR Control Center? A: If you are having trouble detecting your NAS using ASUSTOR Control Center, please do the following: 1. Please check your network connection: Make sure that your computer and your NAS are part of the same local area network.
  • Page 41 Right-click on [Local Area Connection] and select [Properties]. Under the [Networking] tab select [Internet Protocol Version 4 (TCP/IPv4)] and click on [Properties]. Under the [General] tab select the [Use the following IP address] radio button. Set the [IP address] to 169.254.1.10 and the [Subnet mask] to 255.255.0.0 and then click on [OK].
  • Page 42 Open up ASUSTOR Control Center to scan for your NAS. 4. If the above mentioned procedures have not managed to solve your problem, please contact your local ASUSTOR dealer ASUSTOR Customer Service.You are also encouraged to browse through the ASUSTOR...
