- Page 1 MULTISPLIT CEILING FLOOR H3M Installation and user's manual MUSTR-H3M CL20830 to CL20833 www.mundoclima.com English...
- Page 2 User Notice ◆ When operating, the entire capacity of the cooperating indoor unit should be not larger than 150% of outdoor unit. Otherwise, it will cause the shortage of cooling (heating) capacity. ◆ The power supply of the entire unit must be the power supply of outdoor unit. And disconnect the main power of outdoor units before cleaning.
- Page 3 persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
-
Page 4: Table Of Contents
Contents Ⅰ SAFETY INFORMATION ..................1 Ⅱ SELECTION OF INSTALLATION LOCATION AND PRECAUTIONS ......3 ....3 ELECTION OF NSTALLATION OCATION FOR ONDITIONER .............. 3 ELECTION OF NSTALLATION OCATION AUTION FOR INSTALLATION WHERE AIR CONDITIONER TROUBLE IS LIKELY TO ........................3 OCCUR Ⅲ... -
Page 5: Ⅰ Safety Information
Ⅰ Safety Information Please read this manual carefully before use this unit, and operate it correctly according to the guide in this manual. Please take specially note to the meaning of these two marks： Warning! This mark means that it may cause casualty or badly hurt if the operation is incorrect. - Page 6 ◆ Please turn off the main power of the whole unit before cleaning the conditioner, otherwise electric shock or harm may be happened. ◆ Chemical sprayer should be placed 1m or more away from the unit, otherwise fire or explode may be caused. ◆...
-
Page 7: Ⅱ Selection Of Installation Location And Precautions
Ⅱ Selection of Installation Location and Precautions 1Selection of Installation Location for Air Conditioner Unit The installation of air conditioner unit must be in accordance with national and local safety codes. Installation quality will directly affect the normal use of air conditioner unit. The user is prohibited from installation by himself. -
Page 8: Important Notice
Please contact the local Mundoclima special nominated repair department before installation. Any malfunction caused by the unit that is installed by the department that is not special nominated by Mundoclima would not deal with on time by the inconvenience of the business contact. - Page 9 ＊Press the fixing knob of the air intake grills, the grilles will be opened wider and then pull them out from the indoor. ＊Remove the side panel fixing screw and pull to the front direction (arrow direction) to remove. Side panel fixing screw. (Refer to Fig.3) ＊Loosen two hanger bracket setting bolts (M8) on eath side for less than 10mm.
- Page 10 ＊Insert the spanner from the hanger bracket opening. (Refer to Fig.8) In case of hanging It is possible to install using inward facing hanger brackets by not removing the brackets from the indoor unit. (Refer to Fig.9) Be sure to use only the specified accessories and parts for installation work. When installing the indoor unit, you can refer the paper pattern for installation, and make sure that the drainage side must be 10mm lower than the other side in order to drain the condensation water fluently.
-
Page 11: Electrical Wiring
4 Electrical wiring Caution: The power of every indoor unit should be connected in outdoor unit. a. Open surface panel. b. Remove the electrical box cover. c. Route the power connection cord from the back of the indoor unit and pull it toward the front through the wiring hole upward. - Page 12 MUEX-42-H3.5...
-
Page 13: Install The Drainage Pipe
Caution！ ①. The incorrect of wiring connecting would lead malfunction of some of the electric elements. ②. Make sure that the lead between the connect end and the clamp end has some need space after the wire is fixed. ③. The appliance shall be installed in accordance with national wiring regulations. 5 Install the drainage pipe Make sure the drain flows out a. -
Page 14: Install The Connection Pipes
Fig.10 Fig.11 Fig.12 Fig.13 Fig.14 6 Install the connection pipes Connect the connect pipe with the two relative leading pipe, tie the nut on tie–in of the connect pipe tightly. Caution！ ＊Be careful in bending the connection pipes, or you will damage the pipes. ＊If the tightening torque is too great in tightening the flare nut, leakage will happen. -
Page 15: Ⅳ Constitutes And Names Of Every Part Of Floor And Ceiling Type Indoor Unit

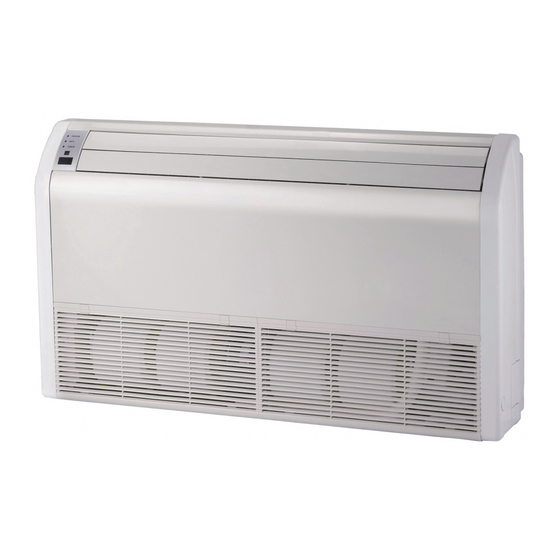

Ⅳ Constitutes and Names of Every Part of Floor And Ceiling Type Indoor Unit Suitable model: MUSTR-09-H3M MUSTR-12-H3M MUSTR-18-H3M MUSTR-24-H3M Note:The appearances will be same by the different models of air conditioners. -
Page 16: Ⅴ Working Temperature Range
Ⅴ Working Temperature Range Working Temperature Range Indoor side state Outdoor side state Dry bulb Wet bulb Dry bulb Wet bulb temp. ℃ temp. ℃ temp. ℃ temp.℃ Rated. Cooling Max. cooling — Min. cooling Rated. Heating — Max. heating －15 －16 Min. -
Page 17: T The Start Of The Season
3 At the start of the season ＊Check if there is blockage in inlet or outlet vent of air conditioner. ＊Check if the earth wire had earthed reliably by professional. ＊Check if the batteries in wireless remote controller had been exchanged. ＊Check if the air filter had been install well by professional. -
Page 18: Ⅶ Operating Instructions
Ⅶ Operating Instructions... -
Page 20: Ⅷ Malfunction Analyzing
Ⅷ Malfunction Analyzing Warning！ Do not repair air conditioner by yourself for the incorrect repair would lead electric shock or fire. Please contact service center and had the unit repaired by specialized personnel. Check the following item before contacting to repair could save your time and cost. -
Page 21: Service Center
electrify could resume normal operation. 1 Service center Is the controller within the receiving area？Or is there blockage？ When the following phenomena appeared, please stop operating immediately, cut Check if the voltages of batteries in wireless remotecontroller off main power supply of unit and contact service center for the conditioner. are enough;... -
Page 22: Wireless Remote Contoller Yt1F
IX Wireless Remote Controller Y T1F Notes: ① . Be sure that there are no obstructions between the receiver and the remote controller; ② . Do not drop or throw the remote controller; ③ . Do not let any liquid into the remote controller and expose the remote controller to direct sunlight or any place where is very hot. - Page 23 3) SLEEP Sleep On and Sleep Off can be selected by pressing this button. After powered on, the default is Sleep Off. After the unit is turned off, the Sleep function is canceled. When the sleep function is set already, the symbol will be displayed.
-
Page 24: Guide For General Operations
temperature, or indoor ambient temperature. When the indoor unit is powered on, the indoor set temperature will be displayed, while if the status is changed to , the indoor ambient temperature will be displayed. However, the indoor set temperature will be displayed again when the controller receives other remote controls signals. -
Page 25: Guide For Optional Operation
d. Press FAN to set the fan speed, Auto, Low, Medium, or High. e. Press to select the swing angle. 3 Guide for Optional Operation a. About X-FAN This function indicates that moisture in the evaporator of the indoor unit will be dried after the unit is stopped to avoid mould. - Page 26 ASK FOR MORE INFORMATION Phone: (+34) 93 446 27 80 eMail: info@mundoclima.com TECHNICAL ASSISTANCE Phone: (+34) 93 652 53 57 www.mundoclima.com...
