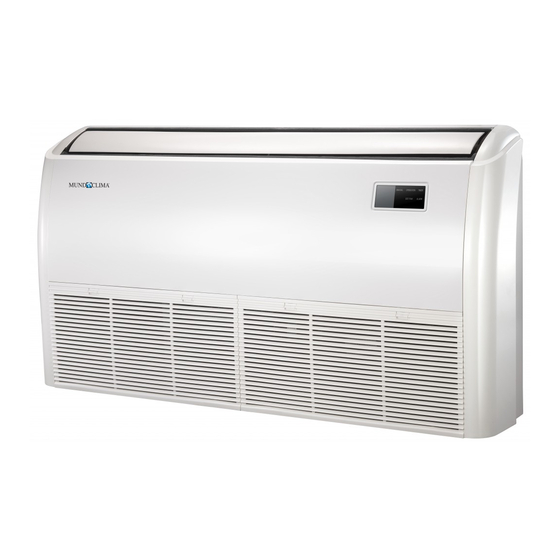

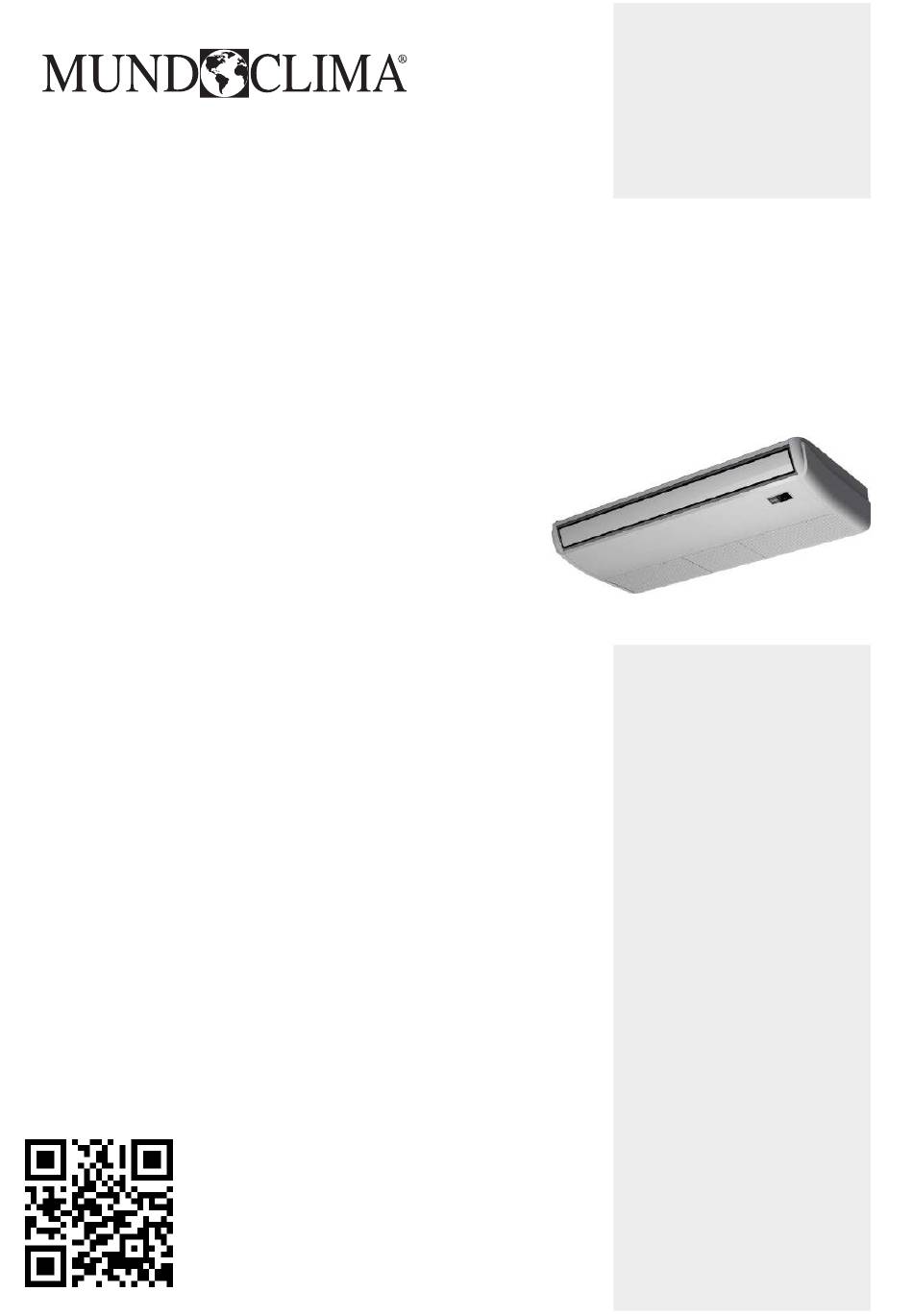

- Page 1 CEILING FLOOR SERIE H6 Installation and owner's manual MUSTR-H6 Thank you very much for purchasing our products. CL20241 to CL20248 Please read this manual carefully before installing English and using the unit. www.mundoclima.com...
- Page 2 CONTENT INSTALLATION MANUAL ..................... 3 OWNER'S MANUAL .....................18 REMOTE CONTROLLER .................... IMPORTANT Thank you for selectiong super quality Air Conditiones. To ensure satisfactory operation for many ears to come, this manual should be read carefully before the installation and before using the air conditioner. After reading, store it a safe place.
- Page 3 INSTALLATION MANUAL Please read this manual carefully before installing and using the unit. INVERTER SPLIT-TYPE ROOM AIR CONDITIONER The design and specifications are subject to change without prior notice for product improvement. Read This Manual: Inside you will find many helpful hints on how to use and maintain your air conditioner properly.
-
Page 4: Table Of Contents
INSTALLATION MANUAL Install according to this installation instructions strictly. CONTENTS Page If installation is defective, it will cause water leakage, electrical PRECAUTIONS .................4 shock and fire. INSTALLATION INFORMATION ............5 When installing the unit in a small room, take measures ACCESSORIES ...................6 against to keep refrigerant concentration from exceeding... -
Page 5: Installation Information
INSTALLATION MANUAL If the refrigerant leaks during installation, ventilate the area There are inflammable materials or gas. immediately. There is acid or alkaline liquid evaporating. Toxic gas may be produced if the refrigerant comes into the place contacting with fire. Other special conditions. -
Page 6: Accessories
INSTALLATION MANUAL ACCESSORIES Please check whether the following fittings are of full scope. If there are some spare fittings , please restore them carefully. NAME SHAPE QUANTITY 1. Soundproof / insulation sheath Tubing & Fittings 2. Binding tape 3.Seal sponge 4. -
Page 7: Indoor Unit Installation
INSTALLATION MANUAL INDOOR UNIT INSTALLATION The dimension of the unit Installation place The indoor unit should be installed in a location that meets the following requirements: - There is enough room for installation and maintenance. The ceiling is horizontal, and its structure can endure the weight of the indoor unit. - Page 8 INSTALLATION MANUAL Overhanging the indoor unit NOTE - Remove the side board and the grille. Confirm the minimum drain tilt is 1/100 or more Hanging Hanging arm screw bolt 1.3.1 Wooden construction Put the square timber traversely over the roof beam, then install the hanging screw bolts.
-
Page 9: Outdoor Unit Installation
INSTALLATION MANUAL OUTDOOR UNIT INSTALLATION Figure of body size Precautions for selecting the location 1) Choose a place solid enough to bear the weight and vibration of the unit, where the operation noise will not be amplified. 2) Choose a location where the hot air discharged from the unit or the operation noise will not cause a nuisance to the neighbours of the user. - Page 10 INSTALLATION MANUAL 2.4 Outdoor unit installation 2.3 Installation guidelines Where a wall or other obstacle is in the path of outdoor unit 1) Installing outdoor unit inlet or outlet airflow, follow the installation guidelines below. When installing the outdoor unit, refer to "Precautions for For any of the below installation patterns, the wall height on the selecting the location"...
-
Page 11: Install The Refrigerant Pipe
INSTALLATION MANUAL INSTALL THE REFRIGERANT PIPE 3.1 Flaring the pipe end 1) Cut the pipe end with a pipe cutter. All field piping must be provided by a licensed refrigeration 2) Remove burrs with the cut surface facing downward so that the technician and must comply with the relevant local and chips do not enter the pipe. - Page 12 INSTALLATION MANUAL 3.3 Purging air and checking gas leakage Pipe length Up to 15m More than 15m When piping work is completed, it is necessary to purge the Run time Not less than 10 min Not less than 15min air and check for gas leakage. *2.
-
Page 13: Install The Drain Pipe
INSTALLATION MANUAL CONNECT THE DRAIN PIPE 2) Be sure to insulate both the gas and liquid piping. Use separate thermal insulation pipes for gas and liquid Install the drain pipes. refrigerant pipes. See the figure below. Keep piping as short as possible and slope it downwards at a gradient of at least 1/100 so that air may not remain trapped inside the pipe. -
Page 14: Electric Wiring Work
INSTALLATION MANUAL Minimum norminal cross-sectional ELECTRIC WIRING WORK area of conductors: General instructions Rated current Nominal cross-sectional of appliance area All field wiring and components must be installed by a licensed (mm2) electrician and must comply with relevant European and national <6 0.75 regulations. - Page 15 INSTALLATION MANUAL Connecting wiring MUSTR-48/60-H6T MUSTR-18/24/30/36/42/48-H6 INDOOR UNIT INDOOR UNIT INDOOR UNIT INDOOR UNIT 230 Vac 230 Vac 50 Hz 50 Hz 230 Vac 230 Vac 50 Hz 50 Hz Note: Only Twin (2x1) Note: Only Twin (2x1) 230 Vac 400 Vac 50 Hz 50 Hz...
- Page 16 The capacity of the unit, the address of the unit, temperature compensation, etc. it can be setting by remote control RG57 or by indoor dip-switch. For more information, please contact the after-sales service Mundoclima, with your sales man or visit www.mundoclima.com in the corresponding model section you will find the parameters setting manual.
-
Page 17: Refrigerant Pipe (The Unit With The Twins Function)
INSTALLATION MANUAL 6.3 Size of joint pipes for outdoor unit REFRIGERANT PIPE (the unit with the twins Base on the following tables, select the diameters of the outdoor function) unit connective pipes. In case of the main accessory pipe large than the main pipe, take the large one for the selection. - Page 18 OWNER´S MANUAL Please read this manual carefully before installing and using the unit. INVERTER SPLIT-TYPE ROOM AIR CONDITIONER The design and specifications are subject to change without prior notice for product improvement. Read This Manual: Inside you will find many helpful hints on how to use and maintain your air conditioner properly.
- Page 19 OWNER'S MANUAL INDOOR UNIT OUTDOOR UNIT Fig.1 INDOOR UNIT OUTDOOR UNIT Connecting pipe Air flow louver (at air outlet) Air inlet (with air filter in it) Air inlet Display panel Air outlet Remote controller Drain pipe NOTE All the pictures in this manual are for explanation purpose only. They may be slightly different from the air conditioner you purchased(depend on model).The actual shape shall prevail.
- Page 20 OWNER'S MANUAL CONTENTS PAGE Never use a flammable spray such as hair spray,lacquer or paint near the unit. IMPORTANT SAFETY INFORMATION............9 It may cause a fire. PARTS NAMES..................Never touch the air outlet or the horizontal blades while AIR CONDITIONER OPERATIONS AND PERFORMANCE......the swing flap is in operation.
-
Page 21: Parts Names
OWNER'S MANUAL In order to avoid injury, do not remove the fan guard of This appliance is not intended for use by persons the outdoor unit. (including children) with reduced physical, sensory mental capabilities, lack experience Do not operate the air conditioner with a wet hand. knowledge, unless they have been given supervision or An electric shock may happen. -
Page 22: Air Conditioner Operations And Performance
OWNER'S MANUAL 3. AIR CONDITIONER OPERATIONS AND Adjust the air flow direction properly to avoid winding toward your body. PERFORMANCE Adjust the room temperature properly to get a comfortable situation and to avoid supercooling and superheat. Use the system in the following temperature for safe and effective operation.The Max operation temperature for In cooling, close the curtains to avoid direct sunlight. -
Page 23: Maintenance
OWNER'S MANUAL 6. MAINTENANCE 1. Models 18 to 42 Open the air intake with the screwdriver or something like that .(Refer to Fig.6-1) Take out the air filter.(Refer to Fig.6-2) CAUTION Clean the air cleaning filter with water or vacuum cleaer,then dry it in cool place. -
Page 24: Following Symptoms Are Not Air Conditioner Troubles
OWNER'S MANUAL 7. FOLLOWING SYMPTOMS ARE NOT AIR A continuous low hissing sound is heard when the system is in operation. CONDITIONER TROUBLES This is the sound of refrigerant gas flowing through both indoor and outdoor units. Symptom 1: The system does not operate A hissing sound which is heard at the start or immediately after stopping operation or defrost operation. -
Page 25: Troubleshooting
OWNER'S MANUAL 8. TROUBLESHOOTING Troubles and causes of air conditioner CAUTION If one of the following malfunctions occur, stop operation, shut Please cut off the power supply when appearing the off the power, and contact with your dealer. above malfunction, check if the voltage provided is out of The operation lamp is flashing rapidly (5Hz). - Page 26 OWNER'S MANUAL Table 8-2 Outdoor unit error codes (Models 18 to 60) Nº Code Description Communication malfunction beetwen indoor and outdoor units Current overload protection Outdoor room temperature sensor (T4) open circuit or short circuit Outdoor coil temperature sensor (T3) open circuit or short circuit Outdoor discharge temperature sensor (T5) open circuit or short circuit Outdoor EEPROM error Outdoor fan speed malfunction...
- Page 27 OWNER'S MANUAL 8.2. Troubles and causes of wire controller Before asking for serving or repairing , check the following points. (Refer to Table 8-4) Table 8-4 Symptoms Solution Causes Check whether the MODE When the automatic mode is indicated on the display is selected, the air conditioner will "AUTO"...
- Page 28 REMOTE CONTROLLER Please read this manual carefully before installing and using the unit.
- Page 29 "Owner's manual" shall prevail. IMPORTANT NOTE: This remote controller is able to set different parameters, it has a function selection. For more information, please contact with Mundoclima after sales service or with your commercial sales.
- Page 30 REMOTE CONTROLLER Operation of buttons UP Button( Push this button to increase the indoor temperature setting in 1 C increments to 30 C. DOWN Button( Push this button to decrease the indoor temperature setting in 1 C increments to 17 C. NOTE Temperature contol is not available in Fan mode.
- Page 31 REMOTE CONTROLLER Indicators on LCD Information are displayed when Mode display the remote controller is powered AUTO COOL HEAT Displayed when data transmitted. Displayed when remote controller is ON. Battery display(low battery detection) Not available for this unit Displayed when TIMER ON time is set. Displayed when TIMER OFF time is set.
- Page 32 REMOTE CONTROLLER How to use the buttons Cooling /Heating/Fan operation Ensure the unit is plugged in and power is available. 1. Press the MODE button to select COOL, HEAT(cooling & heating models only) or FAN mode. 2. Press the UP/DOWN buttons to set the desired temperature.
- Page 33 REMOTE CONTROLLER Timer operation Press the TIMER ON button can set the auto-on time of the unit. Press the TIMER OFF button can set the auto-off time of the unit. To set the Auto-on time. 1. Press the TIMER ON button. The remote controller shows TIMER ON, the last Auto-on setting time and the signal "H"...
- Page 34 REMOTE CONTROLLER TIMER OFF (Auto-off Operation) The TIMER OFF feature is useful when you want the unit to turn off automatically after you go to bed. The air conditioner will stop automatically at the set time. Example: Stop To stop the air conditioner in 10 hours. 1.
- Page 35 REMOTE CONTROLLER Handling the remote controller Location of the remote controller. Use the remote controller within a distance of 8 meters from the appliance, pointing it towards the receiver. Reception is confirmed by a beep. CAUTIONS The air conditioner will not operate if curtains, doors or other materials block the signals from the remote controller to the indoor unit.
- Page 36 ASK FOR MORE INFORMATION Phone: (+34) 93 446 27 81 eMail: info@mundoclima.com TECHNICAL ASSISTANCE Phone: (+34) 93 652 53 57 www.mundoclima.com...
