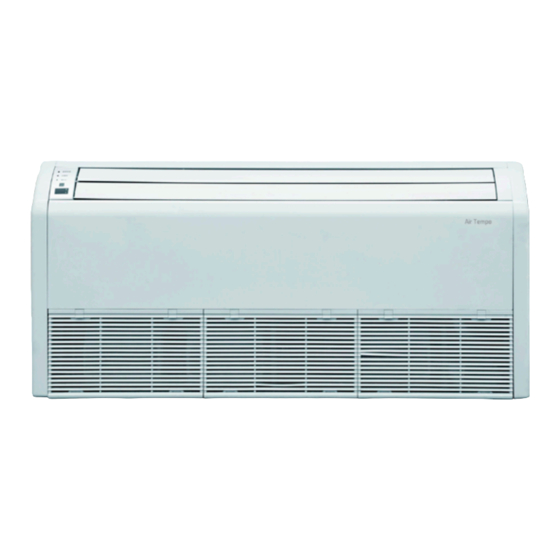

- Page 1 FLOOR CEILING SERIE H3 Installation and user's manual MUSTR-H3 CL20853 to CL20859 www.mundoclima.com English...
- Page 2 Floor Ceiling Serie H3 - Super DC Inverter CONTENTS Installation manual ..................3 User' ' ' s manual .....................33...
-
Page 3: Table Of Contents
Floor Ceiling Serie H3 - Super DC Inverter Installation manual 1. Safety Precautions ......................... 2. Outline of the Unit and Main Parts ..................3. Preparative for Installation ....................3.1. Standard Accessory Parts .................... 3.2. Selection of the Installation Location ................3.3. -
Page 4: Safety Precautions
Floor Ceiling Serie H3 - Super DC Inverter 1. Safety Precautions This mark indicates procedures which, if improperly performed, might lead to the WARNING! death or serious injury of the user. This mark indicates procedures which, if improperly performed, might possibly result CAUTION! in personal harm to the user, or damage to property. - Page 5 Floor Ceiling Serie H3 - Super DC Inverter (14). During installation, attach the refrigerant piping securely before running the compressor. If the compressor is not attached and the stop valve is open during pump-down, air will be sucked in when the compressor is run, causing abnormal pressure in the freezer cycle which will lead to breakage and even injury.
-
Page 6: Outline Of The Unit And Main Parts
Floor Ceiling Serie H3 - Super DC Inverter 2. Outline of the Unit and Main Parts Indoor 1. Guide louver 2. Air filter 3. Wired controller Outdoor 4. Wireless Controller Air inlet 5. Binding tape 6. Drain Pipe 7. Gas Pipe 8. -
Page 7: Preparative For Installation
Floor Ceiling Serie H3 - Super DC Inverter 3. Preparative for Installation 3.1 Standard Accessory Parts The standard accessory parts listed below are furnished and should be used as required. Table 1 Indoor Unit Accessories Name Appearance Q'ty Usage To connect with the hard PVC drain Drain Hose pipe To fix the hook on the cabinet of the... -
Page 8: Selection Of The Installation Location
Floor Ceiling Serie H3 - Super DC Inverter 3.2 Selection of the Installation Location WARNING! The unit must be installed where strong enough to withstand the weight of the unit and fixed securely, otherwise the unit would topple or fall off. CAUTION! ①... - Page 9 Floor Ceiling Serie H3 - Super DC Inverter 3.2.2 Outdoor Unit WARNING! ① . Install the unit where it will not be tilted by more than 5°. ② . During installation, if the outdoor unit has to be exposed to strong wind, it must be fixed securely. If possible, do not install the unit where it will be exposed to direct sunlight.
-
Page 10: Connection Pipe Requirement
Floor Ceiling Serie H3 - Super DC Inverter Table 3 Max. Max. Height Size of Fitting Drainage Pipe(Inch) Pipe ference between pipe(Outer Item Length Indoor Unit and Diameter × wall Liquid Model Outdoor Unit (m) thickness) (mm) φ17×1.75 MUSTR 12 MUSTR 18 φ17×1.75 MUSTR 24... - Page 11 Floor Ceiling Serie H3 - Super DC Inverter Table 5 Power Capability of Air Minimum Sectional Area of Power Model Supply Switch(A) Cable and Earth line (mm MUSTR-12 MUSTR-18 220-240V MUSTR-24 ～ 50Hz MUSTR-30 MUSTR-36 MUSTR-42 MUSTR-48 MUSTR-60 380-415V 3N ～ 50Hz Notes: ①...
-
Page 12: Installation Of The Unit
Floor Ceiling Serie H3 - Super DC Inverter 4. Installation of the Unit 4.1 Installation of the Indoor Unit 4.1.1 Indoor unit dimension WARNING ! ① . Install the indoor unit in a location which can withstand a load of at least five times the weight of the main unit and which will not amplify sound or vibration. - Page 13 Floor Ceiling Serie H3 - Super DC Inverter 4.1.2 Preparation for Installing the Indoor Unit (1). Open the air inlet grille and the screw cover, and remove the screws. (2). Release the claws in the 3 places indicated. (3). Release the center hook and remove the front panel. (4).
-
Page 14: Installation Of The Outdoor Unit
Floor Ceiling Serie H3 - Super DC Inverter ◆ Ceiling type Ceiling Suspension bolt Spring washer Right side Left side panel panel Hanger Fig.7 (6). Adjust the height of the unit to make the drain pipe slant slightly downward so that the drainage will become much smoother. - Page 15 Floor Ceiling Serie H3 - Super DC Inverter 4.2.1 Outdoor unit dimension Fig.9 Table 7 Unit: mm Item Model MUSTR-12 MUSTR-18 MUSTR-24 MUSTR-30 MUSTR-36 MUSTR-42 MUSTR-48 MUSTR-60 4.2.2 Condensate Drainage of the Outdoor Unit(Only for the heat pump unit) (Fig.10) (1).
-
Page 16: Installation Of The Connection Pipe
Floor Ceiling Serie H3 - Super DC Inverter Fig.10 4.3 Installation of the Connection Pipe 4.3.1 Flare Processing (1). Cut the connection pipe with the pipe cutter and remove the burrs. (2). Hold the pipe downward to prevent cuttings from entering the pipe. (3). - Page 17 Floor Ceiling Serie H3 - Super DC Inverter CAUTION! ① . To prevent breaking of the pipe, avoid sharp bends. Bend the pipe with a radius of curvature of 150 mm or over. ② . If the pipe is bent repeatedly at the same place, it will break. 4.3.3 Connecting the Pipe at the Indoor Unit Side Detach the caps and plugs from the pipes.
- Page 18 Floor Ceiling Serie H3 - Super DC Inverter Table 8 Flare nut tightening torque Pipe Diameter Tightening Torque 1/4˝(Inch) 15-30 (N·m) 3/8˝(Inch) 35-40 (N·m) 5/8˝(Inch) 60-65 (N·m) 1/2˝(Inch) 45-50 (N·m) 3/4˝(Inch) 70-75 (N·m) 7/8˝(Inch) 80-85 (N·m) CAUTION! Be sure to connect the gas pipe after connecting the liquid pipe completely. 4.3.4 Connecting the Pipe at the Outdoor Side Unit Tighten the flare nut of the connection pipe at the outdoor unit valve connector.
-
Page 19: Vacuum And Gas Leak Age Inspection
Floor Ceiling Serie H3 - Super DC Inverter 4.3.7Liquid Pipe and Drain Pipe Sealed If the outdoor unit is installed lower than the indoor unit (See Fig.18) Saddle (1). A drain pipe should be above ground and the end of the pipe does not dip into water. - Page 20 Floor Ceiling Serie H3 - Super DC Inverter (5). The evacuation duration depends on the unit’s capacity, generally, 15 minutes for the 09K/12K units, 20 minutes for the 18K units, 30 minutes for the 24/30/36K units, 45 minutes for the 42/48/60 units. And verify if the pressure gauge at the low pressure side of the manifold valve assembly reads -1.0Mp (-75cmHg), if not, it indicates there is leak somewhere.
-
Page 21: Installation Of The Drain Hose
Floor Ceiling Serie H3 - Super DC Inverter Outdoor Oil bend Indoor Oil bend Fig.21 4.5 Installation of the Drain Pipe 4.5.1 Precautions When Doing the Piping Work (1). Keep piping as short as possible and slope it downwards at a gradient of at least 1/100 so that air may not remain trapped inside the pipe. - Page 22 Floor Ceiling Serie H3 - Super DC Inverter 4.5.2 Installing the Drain Pipes (1). For determining the position of the drain hose, perform the following procedures. (2). Insert the drain pipe to the drain outlet of the unit and then tighten the clamp securely with tape.
-
Page 23: Electrical Wiring
Floor Ceiling Serie H3 - Super DC Inverter Ceiling type Floor type Fig.28 4.6 Electrical Wiring 4.6.1 Wiring Precautions WARNING ! ① . Before obtaining access to terminals, all supply circuits must be disconnected. ② . The rated voltage of the unit is as shown as Table 4 and Table 5 ③... - Page 24 Floor Ceiling Serie H3 - Super DC Inverter 4). Shape the loop wire properly, place it on the terminal board and tighten securely with the terminal screw using a screwdriver. (2). For strand wiring (Fig.29) 1). Cut the wire end with a wire cutter or wire-cutting pliers, then strip the insulation about 10 mm (3/8") .
- Page 25 Floor Ceiling Serie H3 - Super DC Inverter (4). Electric wiring between the indoor and outdoor units Single-phase units(09K~30K) MUSTR-18 Cable electricidad 3×1.5mm (H07RN-F) Cable electricidad 3×1.0mm (H05RN-F) Cables de comunicación 2×0.75 (H05RN-F) MUSTR-24 MUSTR-30 Cable de electricidad 3 x 2.5 mm (H07RN-F) Cable de electricidad 3 x 1 0mm (H05RN -F) Cables de comunicación 2 x 0.75 mm (H05RN-F) Single-phase units(36K~48K)
- Page 26 Floor Ceiling Serie H3 - Super DC Inverter (5). Electric wiring of indoor unit side Remove the left cover plate and the electric box cover then insert the end of the communication cord and the power cable into the terminal board. Fig.33 CAUTION! ①...
- Page 27 Floor Ceiling Serie H3 - Super DC Inverter (6). Electric wiring of outdoor unit side Note: When connecting the power supply cord, make sure that the phase of the power supply matches with the exact terminal board. If not, the compressor will rotate reversely and run improperly.
-
Page 28: Installation Of Controllers
Floor Ceiling Serie H3 - Super DC Inverter 5. Installation of Controllers Refer to the Installation Manual of the controller for more details. 6. Test Running 6.1 Trial Operation and Testing (1). The meaning of error codes as shown below: Table 10 Number Error code... -
Page 29: Working Temperature Range
Floor Ceiling Serie H3 - Super DC Inverter AC current protection Drive current error Sensor connecting protection Temperature drift protection Bus low voltage protection Bus high voltage protection Charge loop error Input voltage abnormality Drive memory chip error Note: When the unit is connected with the wired controller, the error code will be simultaneously shown on it. -
Page 30: Troubleshooting And Maintenance
Floor Ceiling Serie H3 - Super DC Inverter 7. Troubleshooting and Maintenance 7.1 Troubleshooting If your air-conditioning unit suffers from abnormal operation or failure, please first check the following points before repair: Table 12 Failure Possible Reasons ① . The power supply is not connected. ②... - Page 31 Floor Ceiling Serie H3 - Super DC Inverter (1). Disassembly method of filter screen and electric box cover 1. Open the air inlet grille ① . Firstly unfix two buckles on the grille as shown on the picture. Remove the screw ②...
- Page 32 Floor Ceiling Serie H3 - Super DC Inverter (2). At the Start of the Seasonal Use 1) Check if there is blockage at the inlet or outlet vent of air conditioner. 2) Check if the earth wire has been attached reliably by the skilled serviceman. 3) Check if the exhausted batteries of the wireless controller have been replaced.
- Page 33 Floor Ceiling Serie H3 - Super DC Inverter Users manual 1. Wireless remote controler Y B1FA ..................1.1. User notice ........................1.2. Control panel of the w i reless remote controller ............1.3. Introduction for special function ................. 1.4. Replacement of batteries .................... 2.
- Page 34 Floor Ceiling Serie H3 - Super DC Inverter 2.3.14. SAVE Function Setting ..................2.3.15. E-HEATER Setting ....................2.3.16. Blow Function Setting ..................2.3.17. Filter Setting ......................2.3.18. Quiet Function Setting ..................2.3.19. Ultra-Dry Setting ....................2.3.20. Other Functions ....................2.4. Installation of the Wired Controller ................2.4.1 Standard Parts ......................
-
Page 35: Wireless Remote Controler Y B1Fa
Floor Ceiling Serie H3 - Super DC Inverter 1. Wireless remote controler YB1F 1.1 User notice CAUTION ! ① Make sure there is no obstruction between the wireless remote controller and the signal receiver. ② The signal receiving distance of the wireless remote controller can be up to 10 metres. Never drop or throw the wireless remote controller. - Page 36 Floor Ceiling Serie H3 - Super DC Inverter Name Function Description Signal ● Signal transmitter transmitter ● Press this button, and the unit will be turned on; press it once more, and the ON/OFF unit will be turned off. When turning off the unit, the Sleep function will be button canceled, but the presetting time is still remained.
-
Page 37: Introduction For Special Function
Floor Ceiling Serie H3 - Super DC Inverter ● Press this button to set up the swing angle, which circularly changes as below: ● When the guide louver starts to swing up and down, if SWING funtions is canceled, the air guide louver will stop and remains at the current position. - Page 38 Floor Ceiling Serie H3 - Super DC Inverter ● By pressing this button it is allowed to select displaying the indoor setting temperature or the indoor ambient temperature. ● Indoor setting temperature is default after the indoor unit is energized initially.
-
Page 39: Replacement Of Batteries
Floor Ceiling Serie H3 - Super DC Inverter heating quickly so that the ambient temperature will approach the preset temperature as soon as possible. ● About lock Press + and - buttons simultaneously to lock or unlock the keyboard. If the wireless remote controller is locked, the icon will be displayed on it, in which case, any press will get no response but with the mark blinking for three times. -
Page 40: Wired Remote Controler Xk60
Floor Ceiling Serie H3 - Super DC Inverter 2. Wired remote controler XK60 2.1 Introduction to the Wired Controller Fig.1 Apariencia del termostato 2.1.1 Appearance and LCD Icons Fig.2 Appearance of the LCD... -
Page 41: Introduction To The Lcd Icons
Floor Ceiling Serie H3 - Super DC Inverter 2.1.2 Introduction to the LCD Icons Table 1 Icons Introduction Left and right swing function Up and down swing function Air exchange function Sleep function Auto mode COOL mode DRY mode FAN mode HEAT mode Health function I-Demand function... - Page 42 Floor Ceiling Serie H3 - Super DC Inverter Electric heater Blow function Defrosting function Filter cleaning Timer Setting Keycard control / Detected status sensed by human body Quiet function Lock function...
-
Page 43: Press Buttons
Floor Ceiling Serie H3 - Super DC Inverter 2.2 Press Buttons 2.2.1 Buttons Fig.3 Press Buttons 2.2.2 Instruction to the Function of Press Buttons Table 2 Press Buttons Function Introduction ①. Function selection and canceling; Enter/Cancel ②. Press it for 5s to enquiry the outdoor and indoor ambient temperature. ①. -
Page 44: Operation Instructions
Floor Ceiling Serie H3 - Super DC Inverter 2.3 Operation instructions 2.3.1 On/of f Press the On/Off button to turn on or off the unit. Notes: ①. The state shown in Fig.4 indicates the OFF state of the unit after energization. The state shown in Fig.5 indicates the ON state of the unit after energization. -
Page 45: Temperature Setting
Floor Ceiling Serie H3 - Super DC Inverter 2.3.3 Temperature Setting Press ▲ or ▼button to increase or decrease setting temperature under on-state of the unit. If press either of them continuously, temperature will be increased or decreased by 1°C every 0.5s. In Cooling, Dry, Fan and Heating mode, temperature setting range is 16°C~30°C. -
Page 46: Right And Left Swing
Floor Ceiling Serie H3 - Super DC Inverter 2.3.5 Right and Left Swing Under the ON state of unit, press the Function button to select the “Right and Left Swing” function option and then press the Enter/Cancel button to activate it. When the Swing function is activated, press the Function button to select the "Right and Left Swing"... -
Page 47: Up And Down Swing
Floor Ceiling Serie H3 - Super DC Inverter 2.3.6 Up and Down Swing Under the ON state of unit, press the Function button to select the "Up and Down Swing" function option and then press the Enter/Cancel to activate it. When the Swing function is activated, press the Function button to select the "Up and Down Swing"... -
Page 48: Air Exchange Setting
Floor Ceiling Serie H3 - Super DC Inverter Cancellation of Timer Setting: The timer setting can be canceled by press “Timer”. Then , xx. Hour won’t be displayed. Timer Setting under the ON state of the Unit is as shown in Fig.11: Unit On, no timer function Press “Timer”... - Page 49 Floor Ceiling Serie H3 - Super DC Inverter 1. The unit continuously runs for 60min, and fresh air valve runs for 6 min. 2. The unit continuously runs for 60min, and fresh air valve runs for 12 min. 3. The unit continuously runs for 60min, and fresh air valve runs for 18 min. 4.
-
Page 50: Sleep Setting
Floor Ceiling Serie H3 - Super DC Inverter 2.3.9 Sleep Setting Sleep on: Press the Function button under the ON state of the unit to select the “Sleep” function option and then press the Enter/Cancel button to activate it. Sleep off: When the Sleep function is activated, press the Function button to select the Sleep function option and then press the Enter/Cancel button to deactivate this function. - Page 51 Floor Ceiling Serie H3 - Super DC Inverter e.g. If the setting temperature is 25°C, the temperature will rise by 1°C in each hour until it reaches 27°C. 7 hours later, the temperature will drop to 26°C. After that, the unit will run at this temperature.
-
Page 52: Health Setting
Floor Ceiling Serie H3 - Super DC Inverter 2.3.10 Health Setting Under unit on status, press “Function” button to select health function with “Health” icon flashing. Press “Enter/Cancel” button to activate health function. When health is on, press “Function” button to set function, with “health” icon flashing. Then press the “Enter/Cancel”... -
Page 53: Vacation Setting
Floor Ceiling Serie H3 - Super DC Inverter Unit On, no I-Demand function Press “Function” button to set Press “Enter/Cancel” button to I-Demand function activate I-Demand function Press “Enter/Cancel” button to Press “Function” button to set cancel I-Demand function I-Demand function Fig.17 I-Demand Setting Note: The I-Demand function can be cancelled by mode switch and unit ON/OFF. -
Page 54: Turbo Function Setting
Floor Ceiling Serie H3 - Super DC Inverter Unit On, no Vacation function Press “Function” button to set Press “Enter/Cancel” button to vacation function activate vacation function Press “Enter/Cancel” button to Press “Function” button to set cancel vacation function vacation function Fig.18 Vacation Setting Note: The vacation function can be only set under heating mode. -
Page 55: Save Function Setting
Floor Ceiling Serie H3 - Super DC Inverter button to select the "Turbo" option and then pressing the Enter/Cancel button. Turbo function setting is as shown in Fig.19: Unit On, no Turbo function Press “Function” button to set Press “Enter/Cancel” button to turbo function activate turbo function Press “Enter/Cancel”... - Page 56 Floor Ceiling Serie H3 - Super DC Inverter Cancel button to activate this function. The activated SAVE function can be deactivated by firstly pressing the “Function” button to select the “SAVE” option and then pressing the “Enter/Cancel” button. The energy saving setting is as shown in the Fig.20: Unit On, no Save function Press “Function”...
-
Page 57: E-Heater Setting
Floor Ceiling Serie H3 - Super DC Inverter 2.3.15 E-HEATER Setting E-HEATER: in the HEAT mode, “E-HEATER” function is allowed to be activated to improve the heating efficiency. Generally, it will be activated automatically as the unit goes into the HEAT mode through any button operations . -
Page 58: Filter Setting
Floor Ceiling Serie H3 - Super DC Inverter Deactivation of the “Blow” Function: The activated “Blow” function can be deactivated by firstly pressing the Function button to select the “Blow” option and then pressing the Enter/Cancel button. BLOW function setting is as shown in Fig.22: Unit On, no Blow function Press “Function”... - Page 59 Floor Ceiling Serie H3 - Super DC Inverter Unit On, no Filter function Press “Function” button to set filter function the pollution level Press “Function” button to set Press “Enter/Cancel” button “00” shown at the timer area filter function to activate filter function Press “Enter/Cancel”...
-
Page 60: Quiet Function Setting
Floor Ceiling Serie H3 - Super DC Inverter “0” shows up at the second place, the accumulated operating hour reaches 1400h. Every increase of the number means another 400h is accumulated. When “9” shows up, it means the operating hour reaches 5000h. ④. -
Page 61: Ultra-Dry Setting
Floor Ceiling Serie H3 - Super DC Inverter Unit On, no Quiet function Press “Function” button to set Press “Enter/Cancel” button to quiet function activate quiet function Press “Enter/Cancel” button to Press “Function” button to set cancel quiet function quiet function Fig.24 Quiet function setting Notes: "QUIET"... - Page 62 Floor Ceiling Serie H3 - Super DC Inverter 2.3.20.2 Memory Function Memory switchover: Under the OFF state of the unit, press the Mode and ▲ buttons at the same time for 5s to switch memory modes. When setting the memory mode, “MEMORY” will be displayed.
-
Page 63: Installation Of The Wired Controller
Floor Ceiling Serie H3 - Super DC Inverter Unit off Simultaneously press “Function” Press “Mode” button to set till and “Timer” button for 5s, the “05” is shown on the temperature wired controller will enter displayed area. Then the unit will parameter setting interface. -
Page 64: Installation Location And Installation Requirements
Floor Ceiling Serie H3 - Super DC Inverter 2.4.2 Installation Location and Installation Requirements (1). Do not install the wired controller in the damp place or under direct sunlight. (2). Do not install the wired controller close to the hi-temperature object or place where the wired controller is likely to suffer water spray. -
Page 65: How To Remove The Wired Controller
Floor Ceiling Serie H3 - Super DC Inverter Brief instructions: Pull out the 2-core signal line from the mounting hole and pass this line through the round ①. hole located at the bottom of the wired controller. Use M4×25 screws to fix the soleplate of the wired controller on the wall. - Page 66 Floor Ceiling Serie H3 - Super DC Inverter Error codes and their meanings: Table 5 Number Error code Error Compressor high pressure protection Indoor anti-freeze protection Compressor low pressure protection, refrigerant lack protection and refrigerant colleting mode Compressor high discharge temperature protection Communication error Indoor fan motor error Full water protection...
- Page 67 Floor Ceiling Serie H3 - Super DC Inverter Drive module over temperature protection Zero passage protection AC current protection Drive current error Sensor connecting protection Temperature drift protection Bus low voltage protection Bus high voltage protection Charge loop error Input voltage abnormality Drive memory chip error Notes:...
- Page 68 ASK FOR MORE INFORMATION Phone: (+34) 93 446 27 80 eMail: info@mundoclima.com TECHNICAL ASSISTANCE Phone: (+34) 93 652 53 57 www.mundoclima.com...
