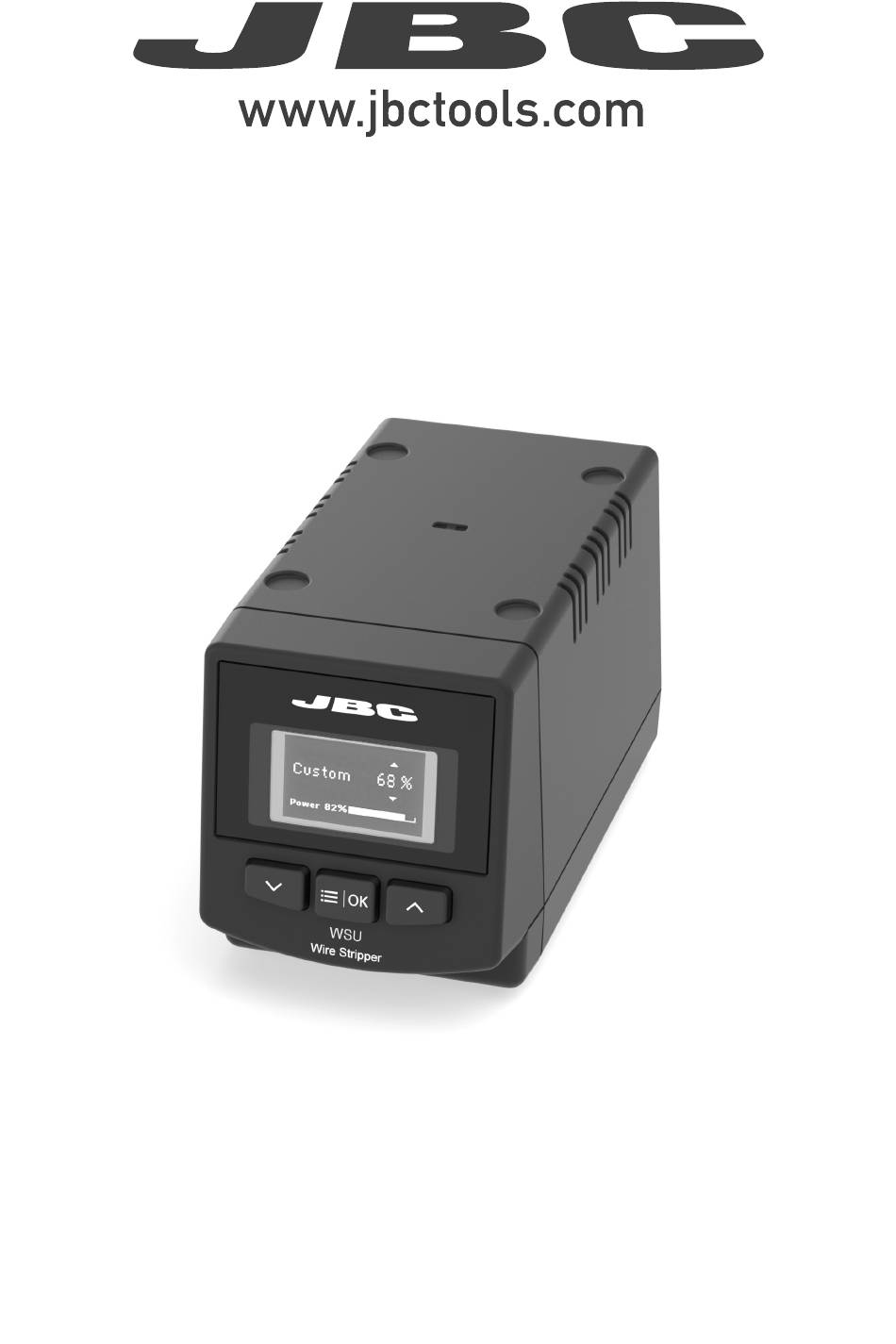

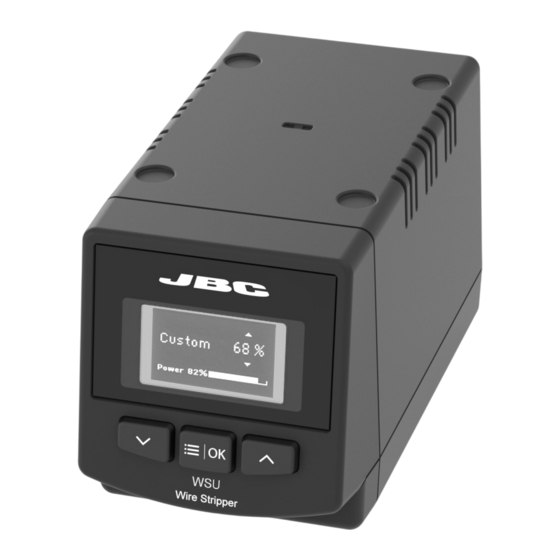

- Page 1 INSTRUCTION MANUAL Wire Stripper Control Unit...
-
Page 2: Packing List
This manual corresponds to the following references: WSU-9A (100V) WSU-1A (120V) WSU-2A (230V) Packing List The following items are included: WSU Control Unit ..1 unit Power Cord ....1 unit Manual ......1 unit Ref. 0024092 (100V) Ref. 0027814 0023715 (120V) - Page 3 para manuales - color gris 200 mm Connection with WS140 130 mm 130 mm Control Unit 100 mm USB Connector 80 mm 60 mm Equipotential Connector 50 mm Power Socket Main Switch Fuse 40 mm W140 Blade Cartridges Stand Cable (not included) Ref.
- Page 4 Connection with WS440 Control Unit USB Connector Stand cable Ref. 0024227 Main Switch Equipotential connector Power Socket Fuse W440 Cartridges (not included) High-Temperature Wire Stand Strippers Tweezers Ref. WSBT-B Ref. WS440-B...
-
Page 5: Control Process
para manuales - color gris 200 mm Control Process 130 mm 130 mm Work Screen Selected Material Power Level 100 mm ® Kapton Instant Power Next Material Previous Material 80 mm P o w e r 7 5 % P o w e r 7 5 % 60 mm Work Mode WSS offers two different working modes. -
Page 6: Operation
WSBT-B Operation Depending on where the tool is located, the soldering station switches between three different Depending on where the tool is located, the soldering station switches between three different states: Work, Sleep and Hibernation. states: Work, Sleep and Hibernation. These states are available for JBCs wire strippers WS140 and WS440. - Page 7 200 mm Material Mode 130 mm 130 mm WSU incorporates predeterminated power levels and it also features a customized work mode. It allows you to work on wire insulations made of thermoplastics and thermostable materials such as Tefl on , Kapton , silicone, rubber, etc.
- Page 8 Lift the wire stripper from the stand, press and hold the pedal to activate them and strip the wire. Once the pedal is relaesed the wire stripper enters in Hibernation. To reverse the pedal functionality flip the switch of the connection box. Default PIN: 0105. WSU Control Unit Stand Ref. WSST-A Precision...
- Page 9 200 mm Accessories 130 mm 130 mm Flat Screw Driver* To open or fi x the wire stripper srews use JBC Flat Screw Driver Ref. 0023511. 100 mm 80 mm Cartridge Extractor Pliers* 60 mm To manipulate the cartridges use JBC Cartridge Extractor Pliers Ref. PLR195. More Information at www.jbctools.com...
-
Page 10: Maintenance
If necessary use a tool to lever it out. reinsert it in the station. Fuse Holder Fuse Fuse Holder Fuse - Replace any defective or damaged pieces. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service. - Page 11 para manuales - color gris 200 mm Safety 130 mm 130 mm It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. 100 mm Warning - Do not touch the blade or the metal parts around. 80 mm - Do not allow the blade be close to flammable materials.
-
Page 12: Specifications
Specifications High-Temperature Wire Stripper Station Ref.: WSU-9A 100V 50/60Hz. Input Fuse: T1.6A. 5x20mm Output: 15V Ref.: WSU-1A 120V 50/60Hz. Input Fuse: T1.25A. 5x20mm Output: 15V. Ref.: WSU-2A 230V 50/60Hz. Input Fuse: T0.63A. 5x20mm Output: 15V. - Temperature Max : 800 ºC /1472 °F...
