Grizzly H8368 Instructions

Specifications

Motor ...........................220V 60Hz Single-Phase
Maximum Amp Draw ...................................7.5 A
Speed ................................................. 2100 RPM
Torque ...................................................240 ft/lbs

Inventory

Refer to Figure 1 and the table below to inventory
the contents of the shipping box.
REF PART # DESCRIPTION
1 PH8368001 MOTOR COVER
2 PH8368002 MOTOR 220V 60HZ 1PH
3 PH8368003 MOUNTING PLATE
4 PH8368004 SWITCH ASSEMBLY
5 PH8368005 DRAWBAR BOLT HEAD
6 PH8368006 DRAWBAR SHAFT 7/16-20 X 21-1/2 (R8)
7 PH8368007 COMPLETE BOLT BAG
Bolt Bag Contents
Cap Screws M6-1 x 25 ...................................... 3
Lock Washers 6mm ........................................... 3
Cap Screws M6-1 x 12 ...................................... 2
Flat Washers 6mm ............................................ 2
Cap Screw M4-.7 x 8 ......................................... 3
Pins 4 x 23mm .................................................. 2
Cable Tie ........................................................... 1
If any nonproprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
Qty
COPYRIGHT © MARCH, 2008 BY GRIZZLY INDUSTRIAL, INC.
#TS10500 PRINTED IN TAIWAN
MODEL H8368
ELECTRIC POWER
DRAWBAR
INSTRUCTIONS
�
�
�

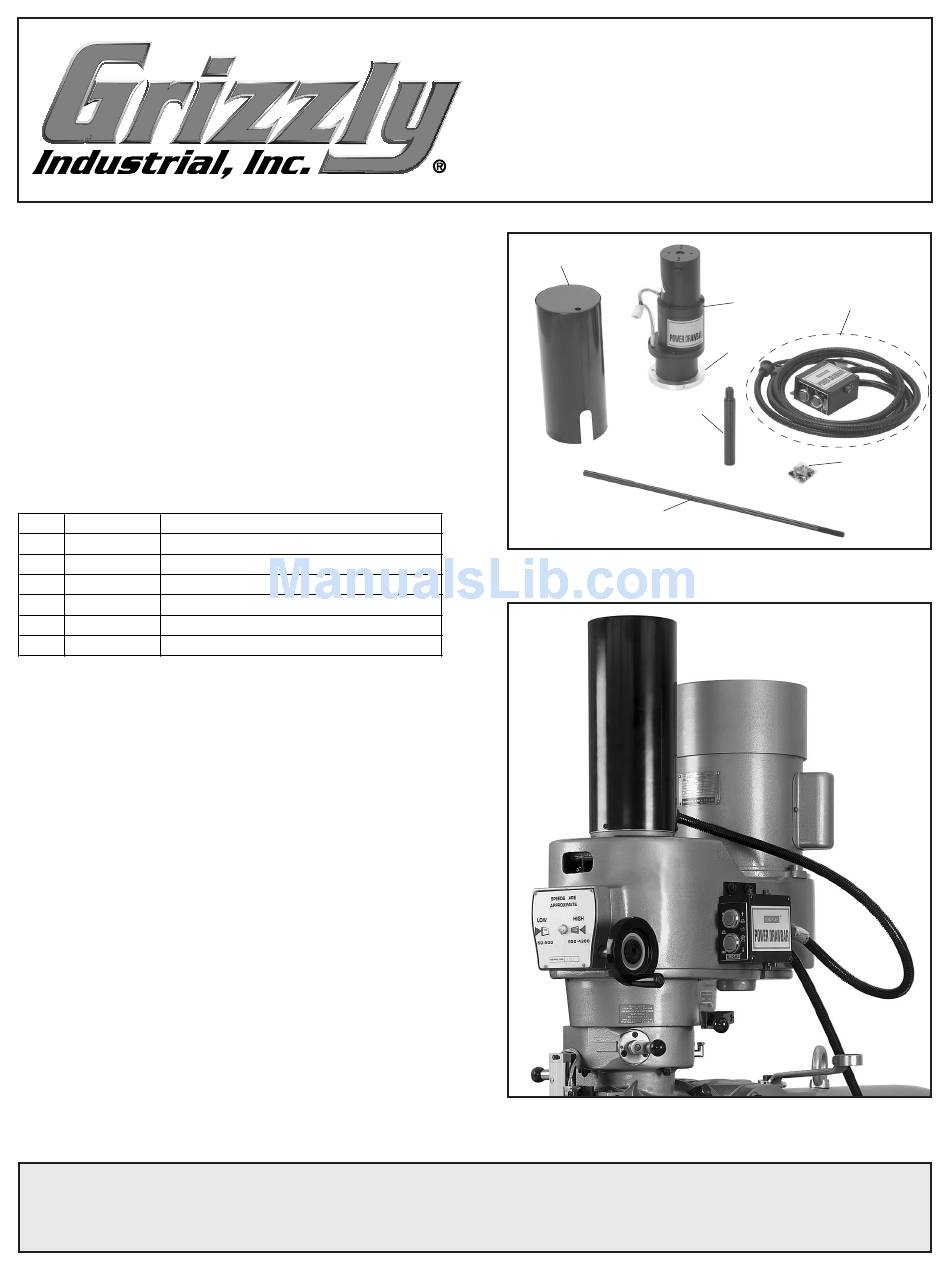

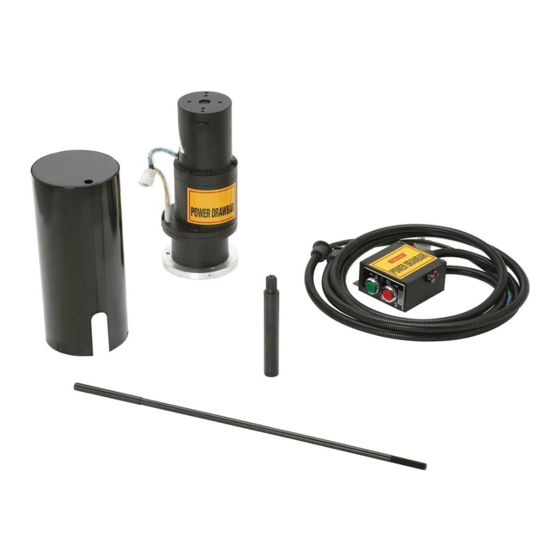

Model H8368 inventory.
Figure 1.
Figure 2. Example of the Model H8368 power
drawbar mounted on a mill.
�
�
�
�
