Grizzly G1763 Instruction Sheet

The Model G1763 Tailstock is designed for the
Model G1049 6" Rotary Table. This tailstock
allows the operator to support larger workpieces
while maintaining a high level of accuracy.

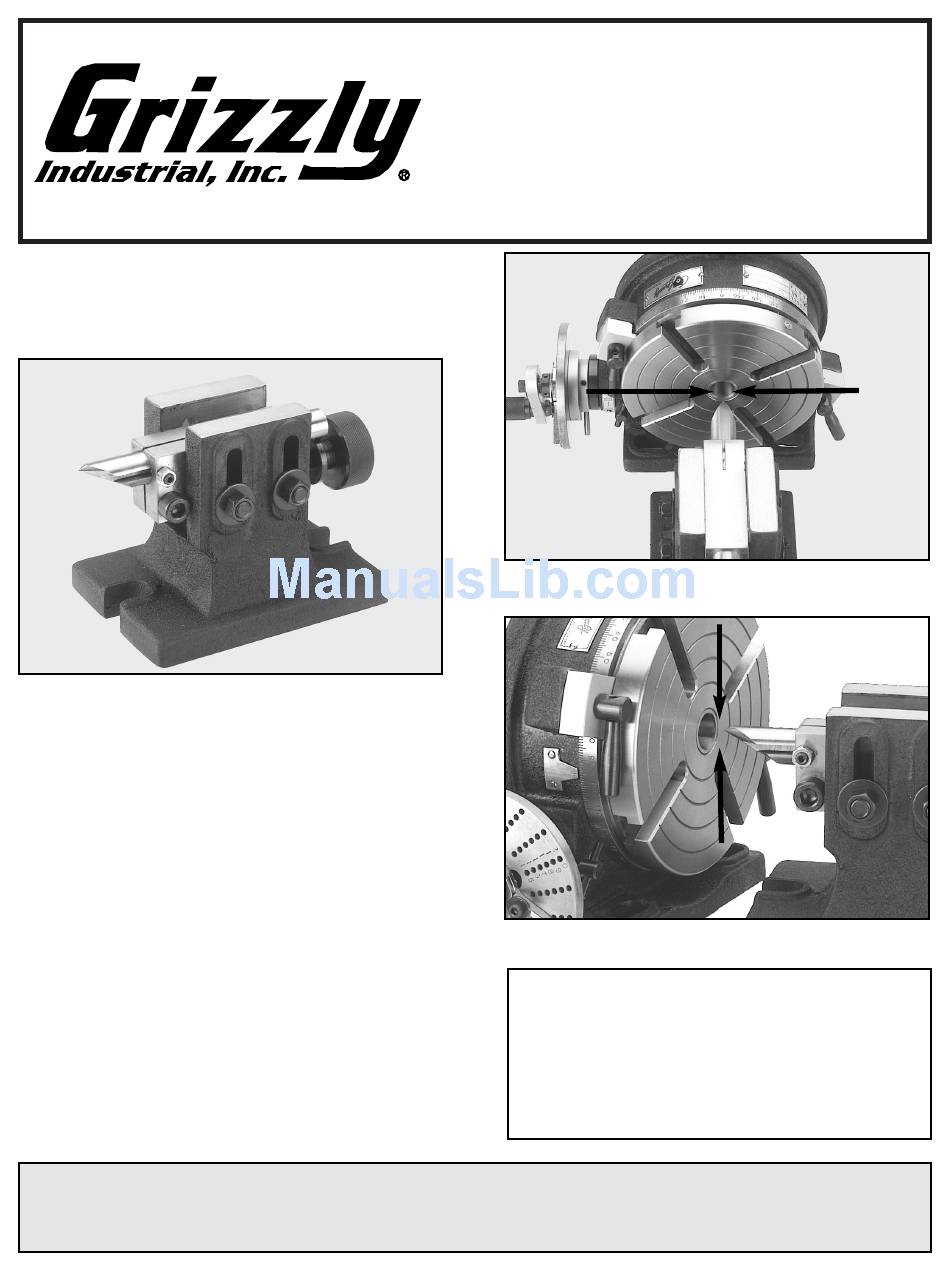

Model G1763 Tailstock
To install the Model G1763 Tailstock to your
milling table:
Secure the Model G1049 Rotary Table in the
1.
vertical position on the milling table.
Install the tailstock onto the milling table so
2.
the dead center of the tailstock is inline with
the center of the rotary table in both the X
and Y axes. Note—For added conveniece
slots are machined in both the tailstock and
the rotary table for keys (not supplied) to help
with the alignment of the centers as shown in
Figure 1-3.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
COPYRIGHT © DECEMBER 2003 BY GRIZZLY INDUSTRIAL, INC.
#5822 PRINTED IN TAIWAN
INSTRUCTION SHEET
MODEL G1763
TAILSTOCK
Figure 1. Alignment of Y axis.
Figure 2. Alignment of Z axis.
It is extremely important to align centers in
the Y&Z axes. If axes are not properly
aligned, the depth, size, parallelism and
overall trueness will be compromised.
Notice
