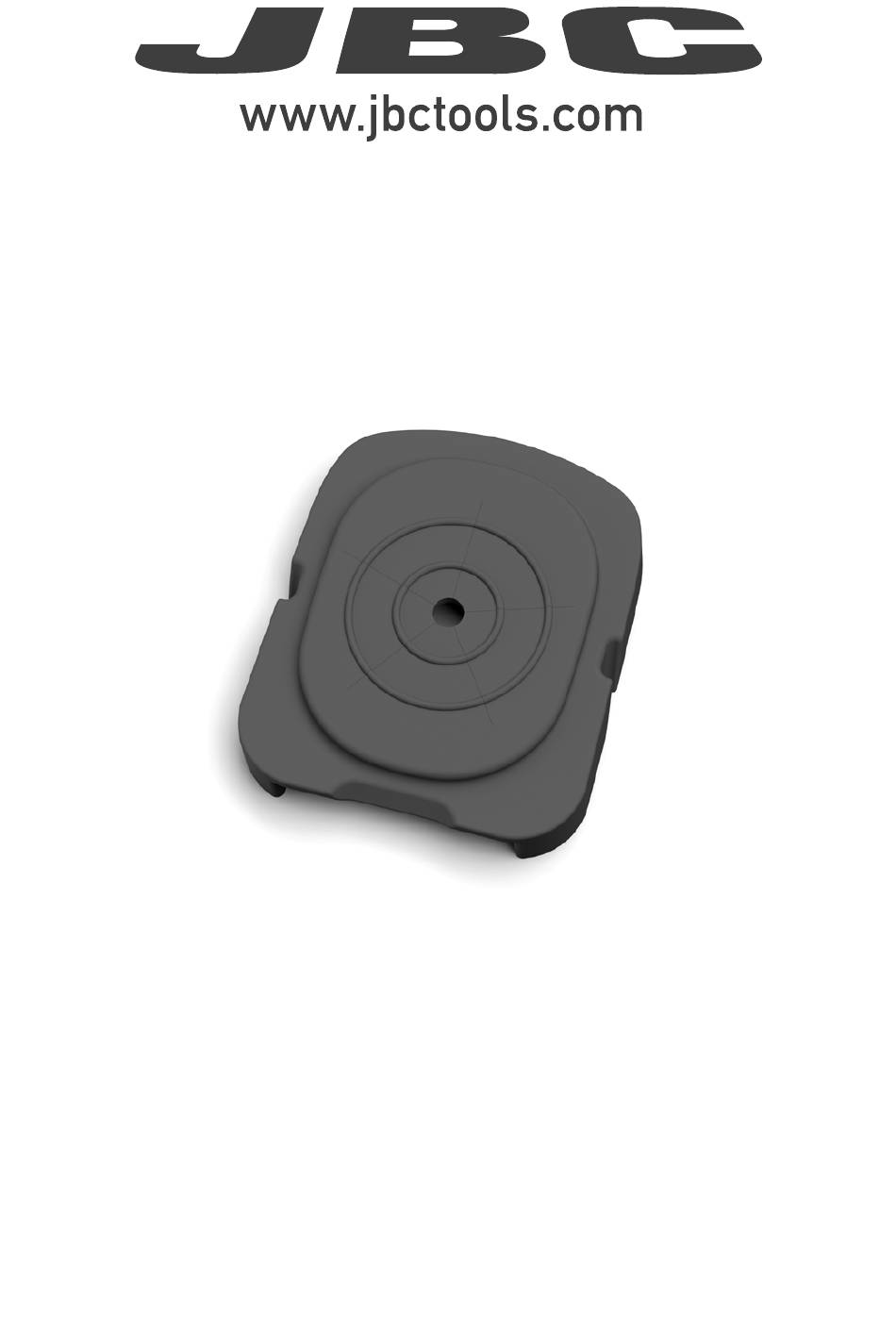

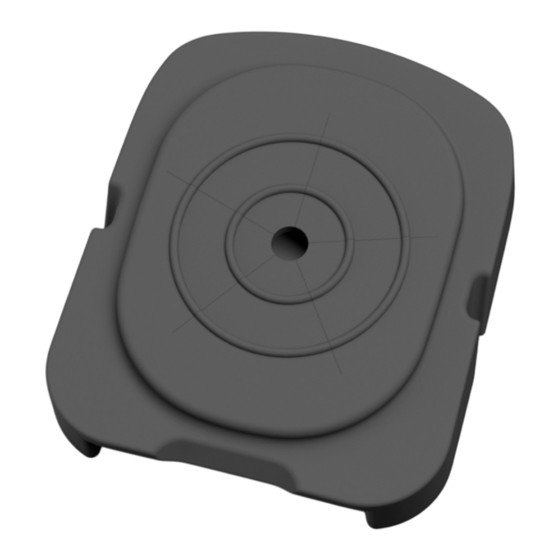

- Page 1 INSTRUCTION MANUAL CL7882, CL7574 Antisplash Membrane for Compact Stations & CLM...
- Page 2 This manual corresponds to the following references: CL7882 CL7574 - red - black Packing List The following items are included: Antisplash Membrane for Compact Stations & CLM .... 1 unit Manual ....................1 unit Ref. 0017575...
- Page 3 para manuales - color gris Membrane Replacement 130 mm 130 mm By opening the screw and rotating the lever unlock the splashguard (1) and remove it (2). 100 mm Screw 80 mm Lever 60 mm Withdraw the screw from the back (3) and remove the spring (4). 50 mm Spring 40 mm...
- Page 4 3.54 x 2.17 x 1.57 in / 0.043 lb ESD safe Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse. In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased.
