Identification; Specifications - Textron GREENLEE GATOR EK410LX Operation Manual

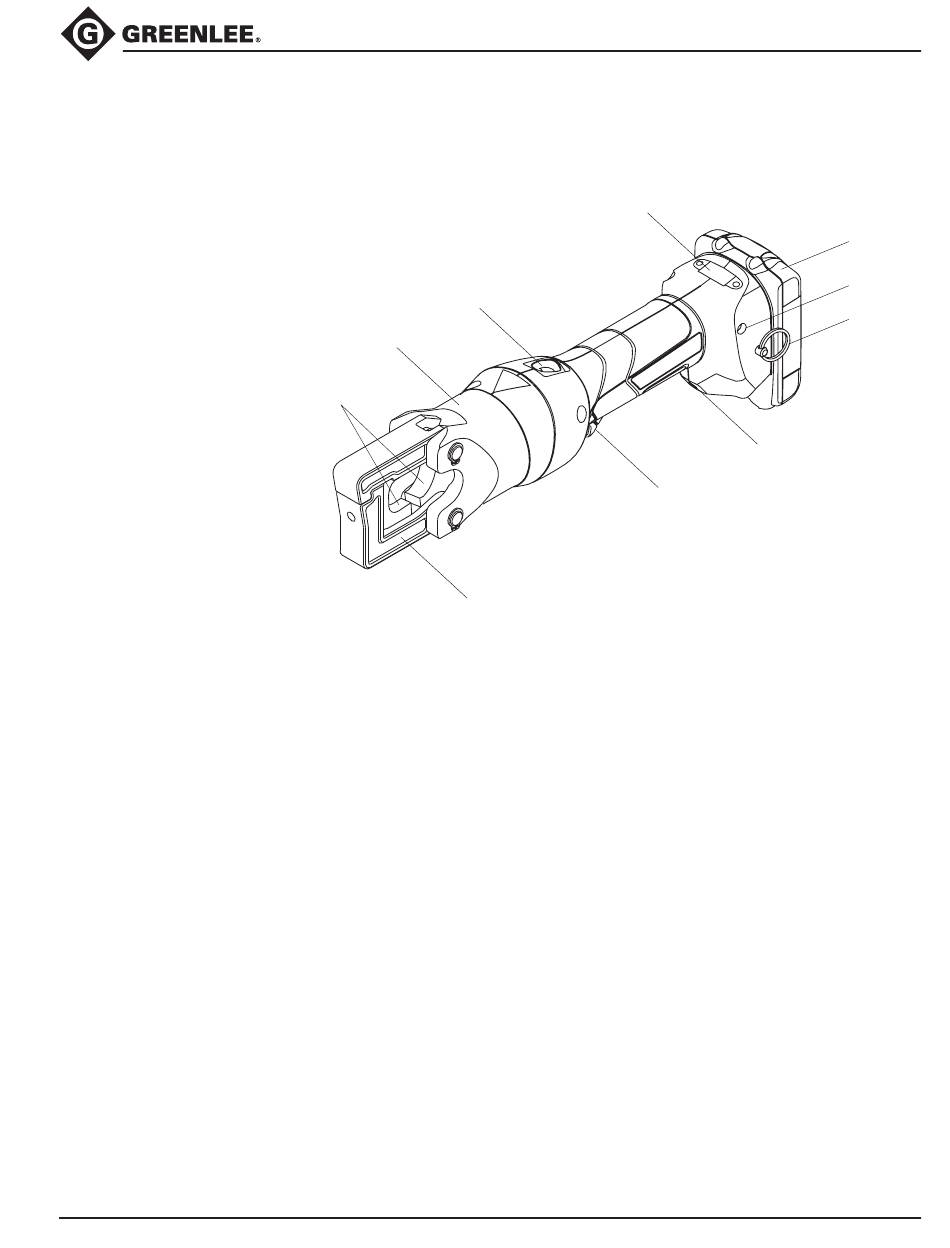

Identification

1. Latch
2. Crimping Dies
3. Crimping Head
4. Retract Button
5. LCD Screen
6. Battery Cartridge
7. LED Indicator (red)
8. Lanyard Ring
9. LED Work Light (white)
10. Trigger

Specifications

Crimping Tool
Length........................................................................................................ 13.66" (347 mm)
Width ............................................................................................................. 2.95" (75 mm)
Depth ........................................................................................................... 4.92" (125 mm)
Weight ............................................................................................................. 3.8 lb (1.7 kg)
Crimping Force ...............................................................................................4 tons (35 kN)
Hydraulic Oil ......................................................... 52057878 biodegradable hydraulic fluid
Recommended Operating Temperature Range ...................5 °F to 122 °F (–15 °C to 50°C)
Battery Charger ........................................................................ Read the instructions supplied
Greenlee / A Textron Company
EK410LX Battery-powered Crimping Tool
