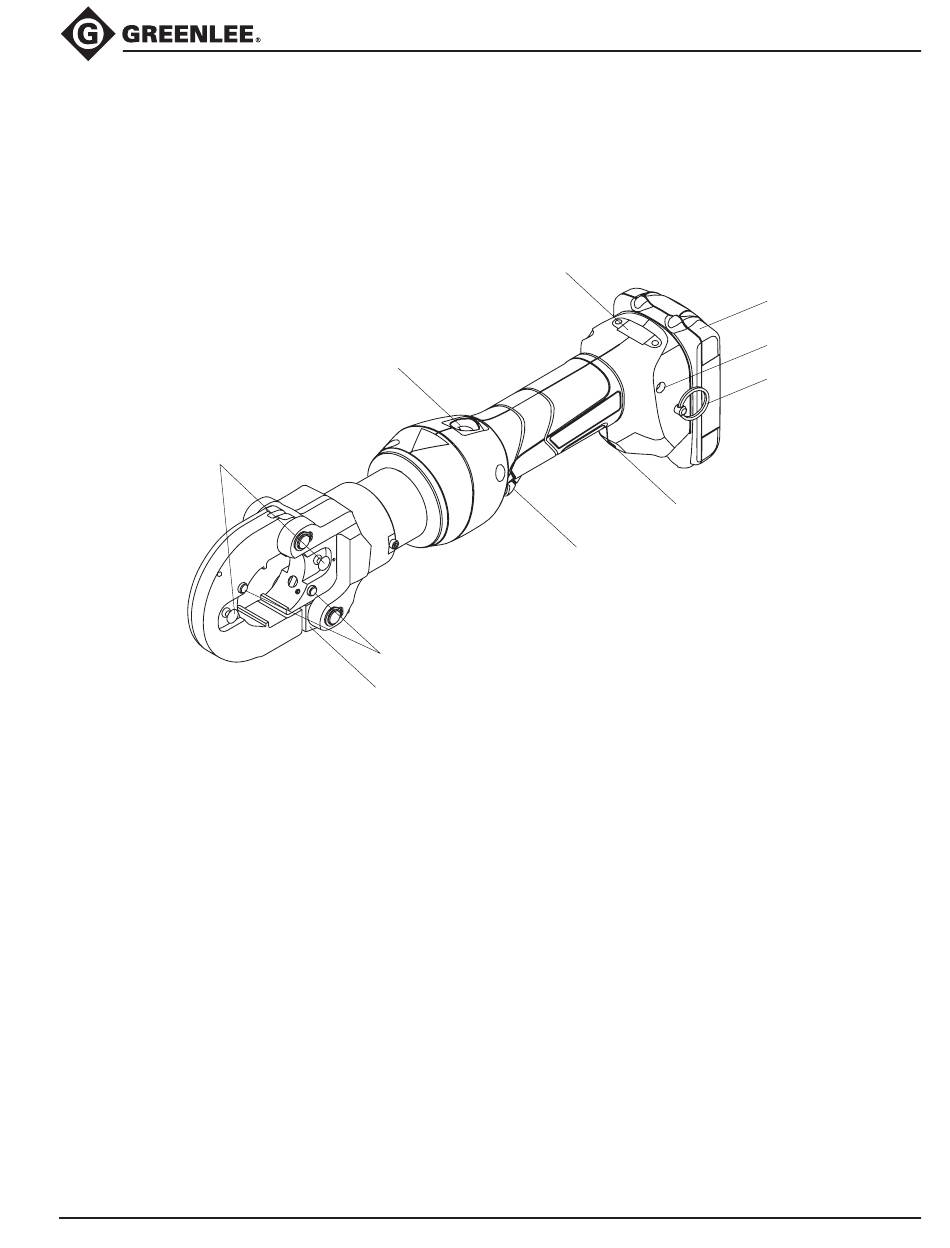

Identification
1. Die Release Buttons
2. Locking Flange
3. W-type Die Detents
4. Retract Button
5. LCD Screen
6. Battery Cartridge
7. LED Indicator (red)
8. Lanyard Ring
9. LED Work Light (white)
10. Trigger
3
Specifications
Crimping Tool
Length........................................................................................................ 16.18" (411 mm)
Width ............................................................................................................. 2.95" (75 mm)
Depth ........................................................................................................... 4.92" (125 mm)
Weight ............................................................................................................. 6.4 lb (2.9 kg)
Crimping Force ...............................................................................................6 tons (53 kN)
Hydraulic Oil ......................................................... 52057878 biodegradable hydraulic fluid
Recommended Operating Temperature Range ...................5 °F to 122 °F (–15 °C to 50°C)
Crimping Capacities
Maximum Cable Size
Copper ......................................................................................................... 600 kcmil
Aluminum ..................................................................................................... 350 kcmil
Battery Charger ........................................................................ Read the instructions supplied
Greenlee / A Textron Company
EK622LX Battery-powered Crimping Tool
5
4
1
2
5
4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
9
10
with the battery charger
6
7
8
