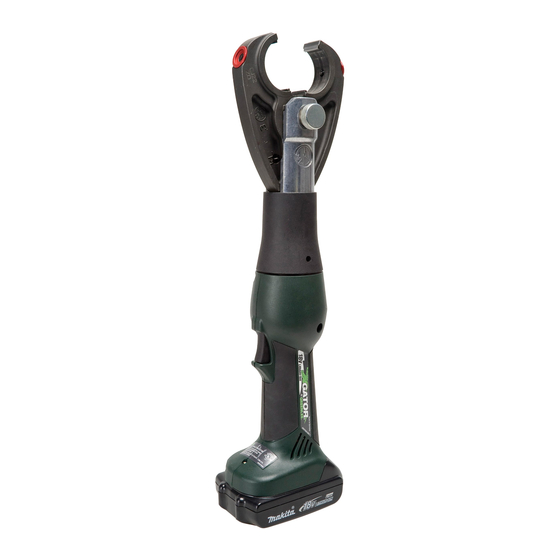

- Page 1 Serial Number GATOR EK628L ® Battery-powered Crimping Tool Read and understand all of the instructions and safety information in this manual before operating or servicing this tool. Register this product at www.greenlee.com 52047662 REV 3 © 2012 Greenlee Textron Inc. 3/12...
-
Page 2: Table Of Contents
For recycling information, go to www.greenlee.com. All specifications are nominal and may change as design improvements occur. Greenlee Textron Inc. shall not be liable for damages resulting from misapplication or misuse of its products. GATOR is a registered trademark of Greenlee Textron Inc. -
Page 3: Important Safety Information
Failure to observe this warning could result in severe injury or death. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... - Page 4 Note: Keep all decals clean and legible, and replace • Use this tool for the manufacturer’s intended when necessary. purpose only. Failure to observe these precautions may result in injury or property damage. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
-
Page 5: Identification
18 V, 1.5 Ah lithium-ion battery 52049202 230 VAC, 18 V charger 52049189 18 V, 3.0 Ah lithium-ion battery 52049204 12 VDC, 18 V charger Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 6: Operation
• If the tool is unable to reach the required crimp force, the red LED, work light, and an audible beep will pulse until after the trigger is released. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... - Page 7 First Compression SIDE A Failure to observe these warnings could result in severe injury or death. First Compression SIDE B Crimping Direction SIDE A Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
-
Page 8: Die And Connector Selection
4/0 AWG to 350 kcmil: 4 crimps ** 6 AWG to 350 kcmil † 500 kcmil maximum with Penn-Union connectors 8 AWG to 350 kcmil with Burndy copper splices Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 9: Maintenance
Failure to observe these warnings could result in severe injury or death. Relief valve adjustments must be done by an authorized service center. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 10: Troubleshooting
LED glows for 20 seconds. Battery charge low. Charge or replace battery. Tool loses oil. Damaged internal seal. Return tool to a Greenlee Authorized Service Center. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... - Page 11 EK628L Battery-powered Crimping Tool Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
